Disassembly
36 ©2013 Viking Preferred Service
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

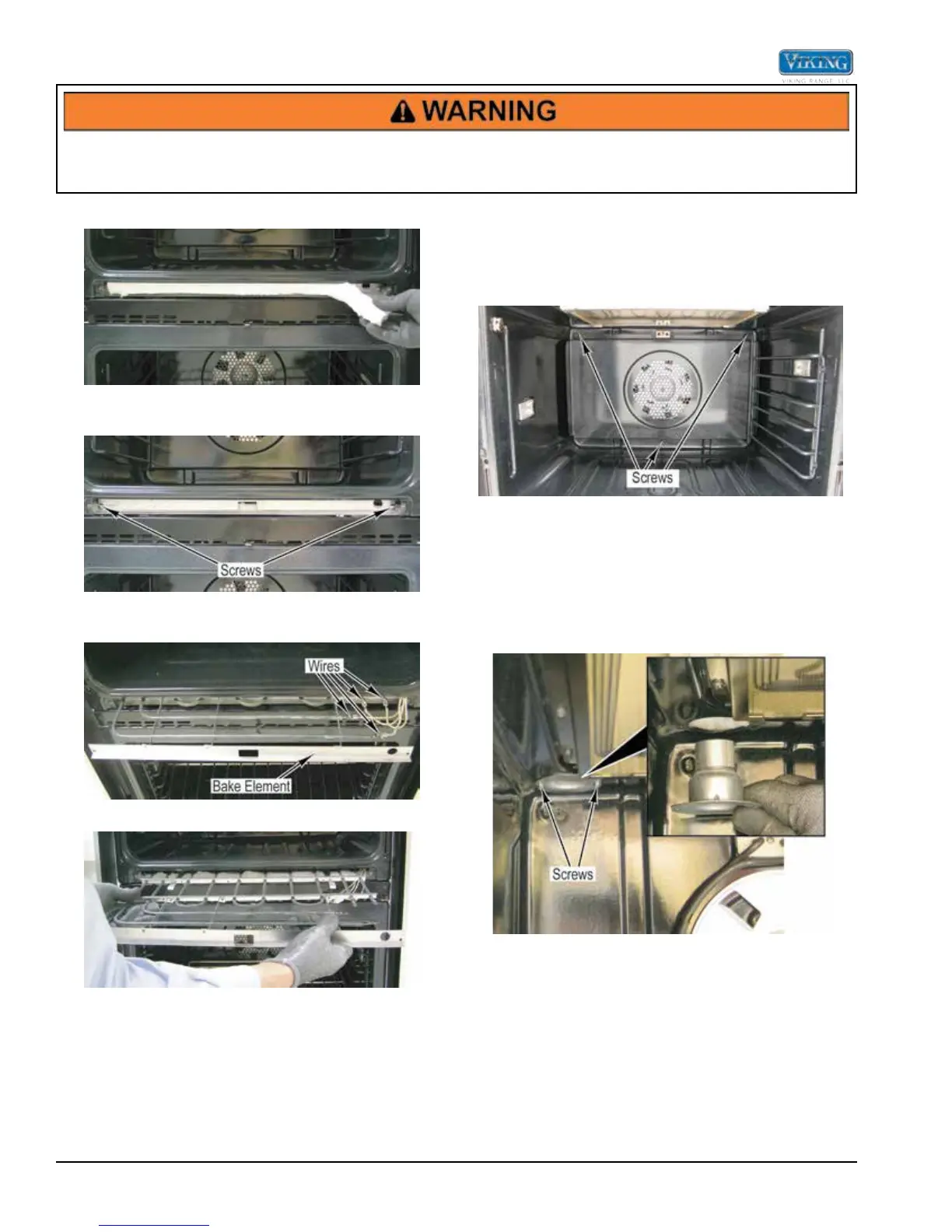

3. Remove the insulation from the recess.
4. Remove the two screws that attach the bake element
to the element shelf.
5. Slide the bake element partially out, and then mark
and disconnect the four wires from the bake element.
6. Remove the bake element from the oven.
7. Reverse procedure for installation.
Convection Baffle Removal
1. Remove one oven rack support (see Oven Rack
Support Removal).
2. Remove three screws and convection baffle from
oven cavity.
3. Reverse procedure for installation.
Catalyst Removal
1. Remove convection baffle (see Convection Baffle
Removal).
2. Remove the two screws that hold the oven catalyst to
the top, left, rear corner of the oven liner.
3. Pull down the oven catalyst.
4. Reverse procedure for installation.
To Next Page
