Viking VESO5271 - Convection Bake Element Removal; Convection Fan Motor Removal

Disassembly
©2013 Viking Preferred Service 37
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

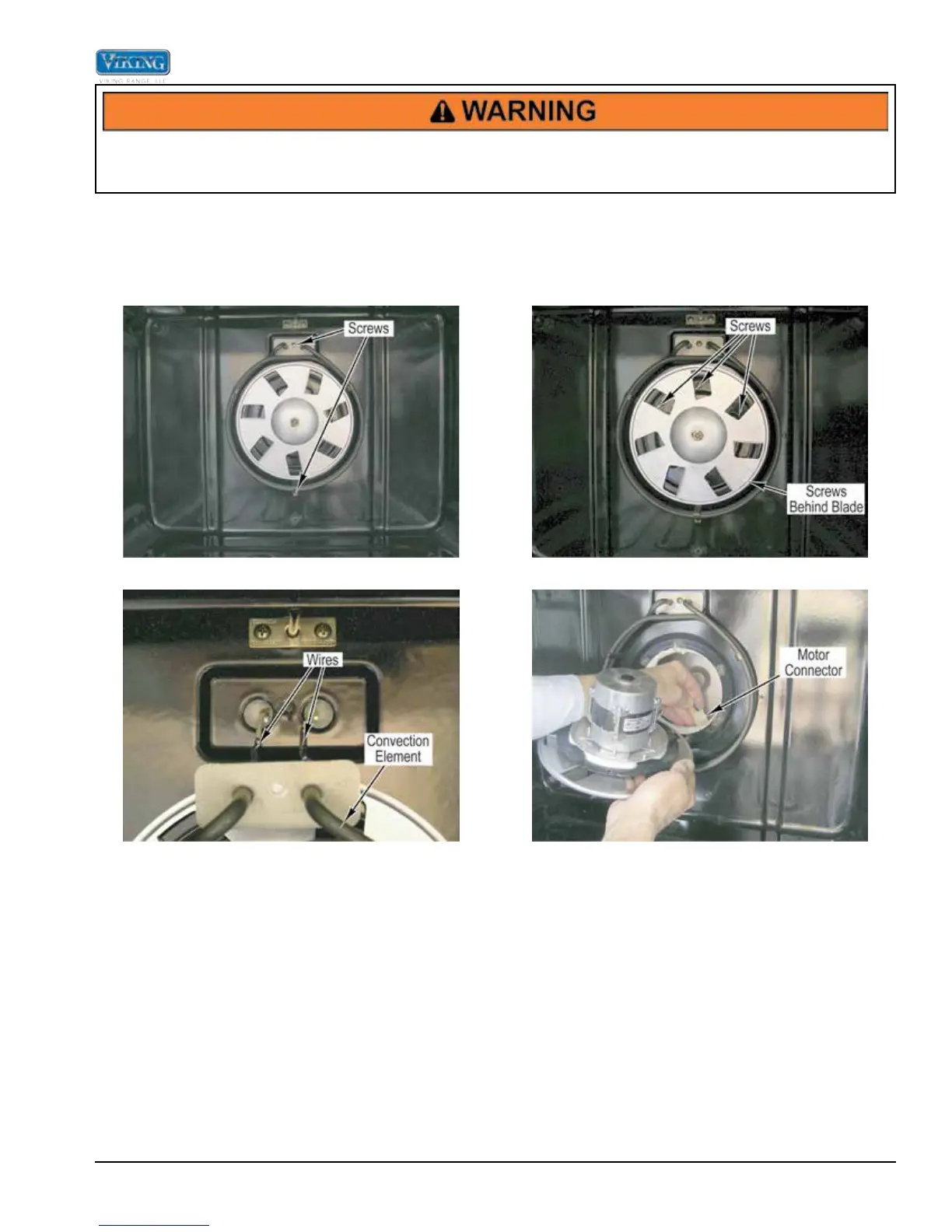

Convection Bake Element Removal
1. Remove convection baffle (see Convection Baffle
Removal).
2. Remove two screws that hold the convection element
to the rear of the oven cavity.
3. Disconnect two wires from the convection element.
4. Reverse procedure for installation.
Convection Fan Motor Removal
1. Remove convection baffle (see Convection Baffle
Removal).
2. Remove the six screws that hold the convection fan
assembly to the rear of the oven liner.
3. Disconnect the convection fan motor wire harness.
4. Reverse procedure for installation.
