Disassembly
©2013 Viking Preferred Service 43
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

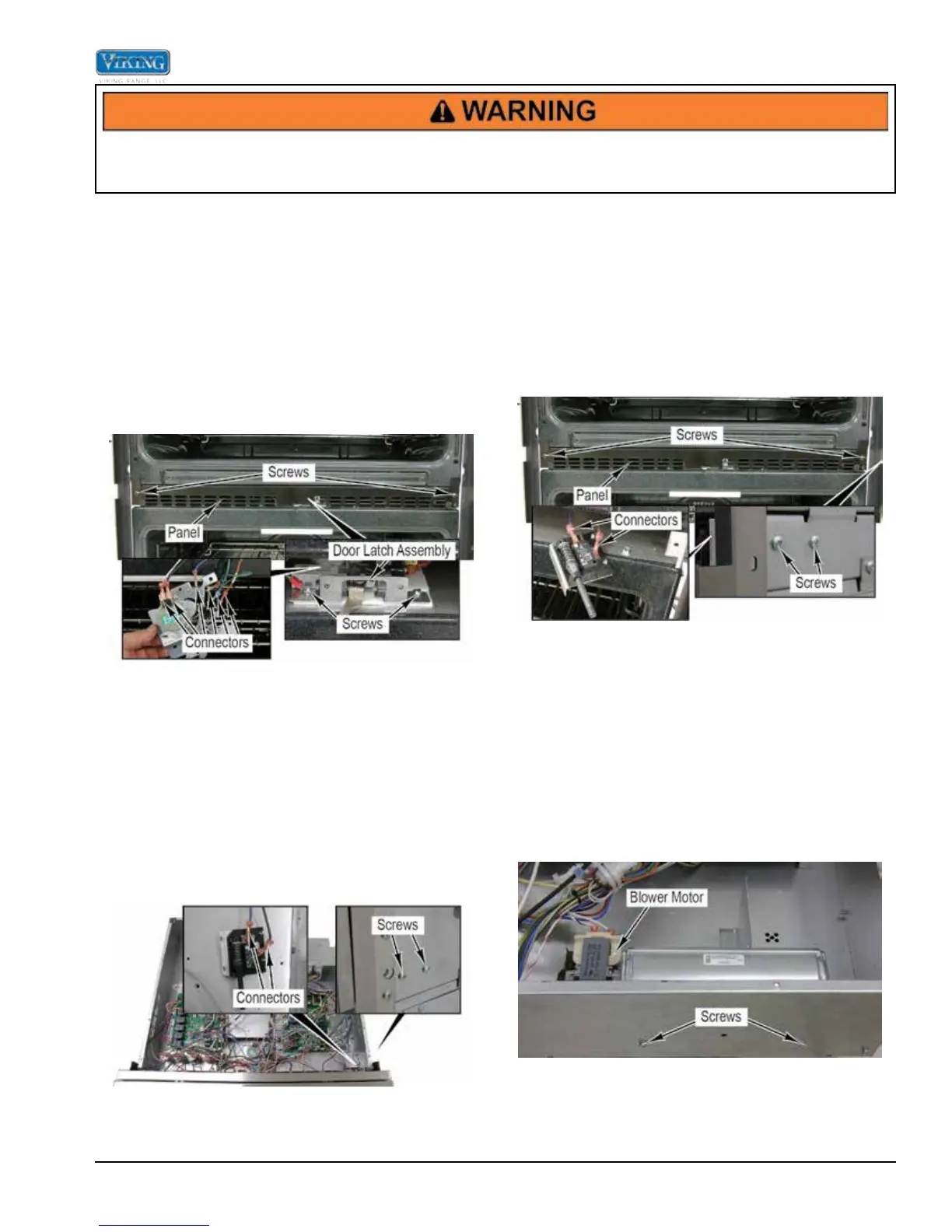

Lower Double Oven
The Door Latch Assembly for the lower double oven is
located between the upper and lower oven cavities. It is
used as a safety device during the self-clean cycle.
1. Remove both oven doors (see Door Assembly
Removal).
2. Remove two screws and the lower door latch access
panel.
3. Remove screws and ground wire from the door latch
assembly.
4. Disconnect six connectors from the door latch
assembly.
5. Reverse procedure for installation.
Door Switch Removal
Single Oven and Upper Double Oven
The Door Switch for the single oven and upper double
oven is located above the oven cavity in the front of the
component compartment. It is used to sense when the
upper oven door is open.
1. Remove front component access panel (see Partial
Control Board Area Access).
2. Remove screws from the door switch.
3. Disconnect two connectors from the door switch.
4. Reverse procedure for installation.
Lower Double Oven
The Door Switch for the lower double oven is located
between the upper and lower oven cavities. It is used to
sense when the lower oven door is open.
1. Remove both oven doors (see Door Assembly
Removal).
2. Remove two screws and the lower door latch access
panel.
3. Remove screws from the door switch.
4. Disconnect two connectors from the door switch.
5. Reverse procedure for installation.
Blower Motor
Single Oven and Upper Double Oven
The Blower Motor for the single oven and upper double
oven is located above the oven cavity in the rear of
the component compartment. It is used to reduce air
temperature in the component compartment.
1. Remove rear component access panel (see
Complete Control Board Area Access).
2. Remove screws that secure the blower motor to the
back of the oven.
To Next Page
