Disassembly
©2013 Viking Preferred Service 45
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

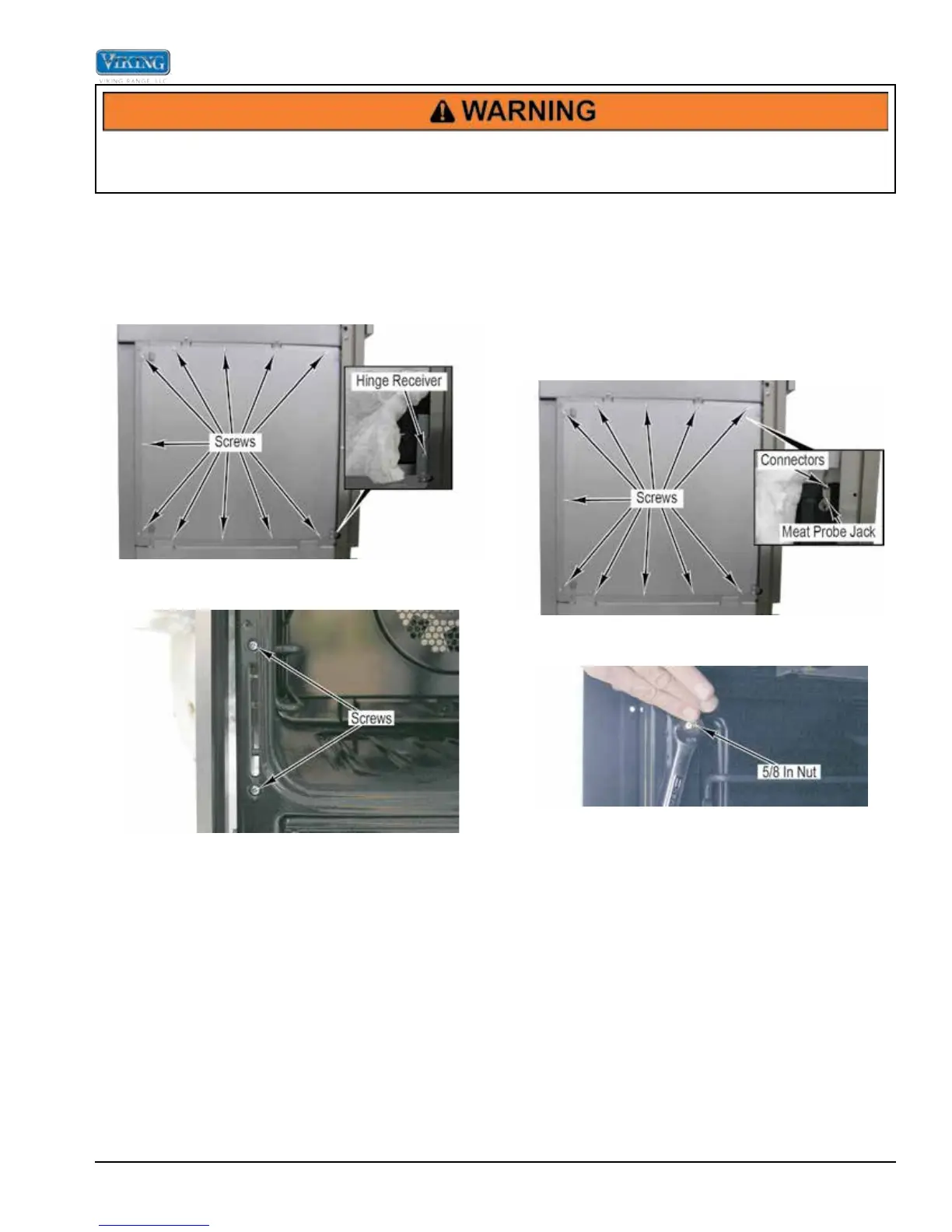

Door Hinge Receiver Removal
1. Completely remove the oven from the installation
(see Complete Oven Removal).
2. Remove screws that hold the side panel to the oven.
3. Carefully pull back the side insulation from the front
edge of the oven to reveal the hinge receiver.
4. Remove two screws that attach the hinge receiver to
the oven frame.
NOTE: It is important to return insulation back to original
position. Replace any insulation that is missing
or destroyed.
5. Reverse procedure for installation.
Meat Probe Socket Removal
1. Completely remove the oven from the installation
(see Complete Oven Removal).
2. Remove screws that hold the side panel to the oven.
3. Carefully pull back the side insulation from the
front top edge of the oven to reveal the meat probe
socket.
4. Disconnect two connectors from the meat probe
socket.
5. Lift the meat probe jack cover and remove the 5/8
inch nut that attaches the jack to the oven liner.
NOTE: It is important to return insulation back to original
position. Replace any insulation that is missing
or destroyed.
6. Reverse procedure for installation.
