Vislink Microlite 3 - Ship Kit and Installation; Ship Kit and Included Accessories; Physical Installation Connectors

Operators Manual
Installation
M55-ML3-UG, Rev A 18
7.3. Ship Kit and Accessories
The MLT3 is shipped in a hardened carrying case with all of the accessories needed for
most applications. All of the accessories are foam shadowed for organization, quick
access, and inventory count at a glance. The accessory kit includes the following:
Line Item
No
Component Part
Part Description
Qty per
Assembly
1
M55-ML3-2L3
MicroLite 3 laminated quick start guide
0
2
863-E0053-001-R
CABLE MICRO USB B TO STD A 1.5M
1
3
940-SCC2-18A-R
SCC2-18; MicroLite 3 TX Kit Case
1
4
922-B1172-01A
Cable, Super Slim High-Speed HDMI Cable M-M (1 foot)
1
5
921-B437-01A
Cable, 1.0/2.3 DIN to BNC Male, 18";L-2.5CHD, 3G/HD-SDI
1
6
691-00442-00A
General Brand right angle bracket with a vertical and
horizontal flash shoe, ML3
1
7
865-00083-000
Vello Multifunction ball head with removable top & bottom
shoe mount
1
8
922-B1065-01A-R
Power Cable, 7 Pin Lemo to Power Tap, 18"
1
9
922-B907-01C-R
7 PIN LEMO TO TINNED BARE WIRE;
1
10
865-00076-000-R
Revo Hot Shoe to 1/4"-20 Male Post Adapter
1
7.4. Physical Installation
7.4.1. Connectors

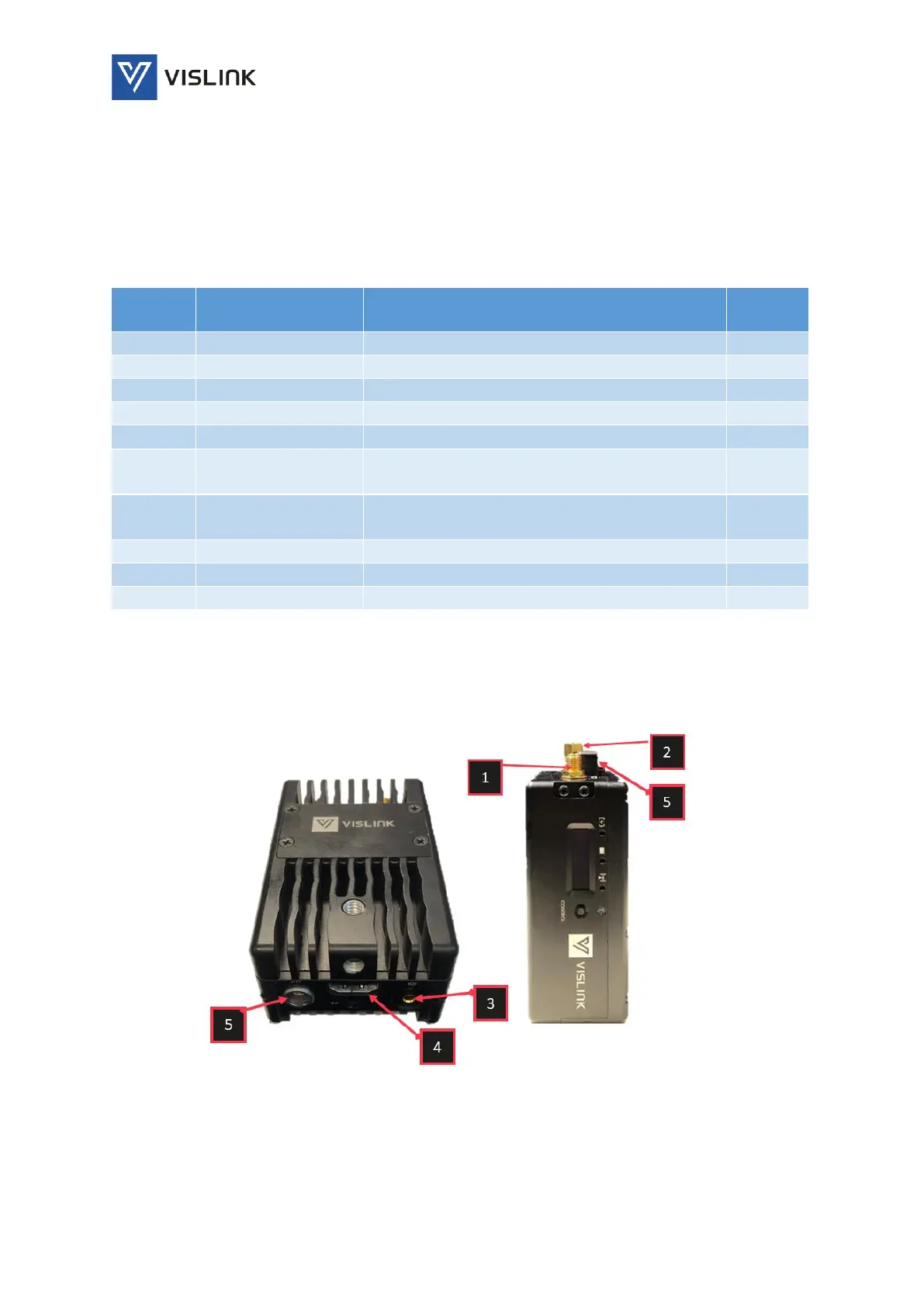

Figure 3: MLT3 Connectors
