Operators Manual

Operation

M55-ML3-UG, Rev A

8.3.5.2. Channel Selection

This displays the current frequency of the Microlite 3 Transmitter along with the channel

number. The Microlite 3 features programmable channels. These frequencies can be

edited manually in the ‘Frequency Plan’ page.

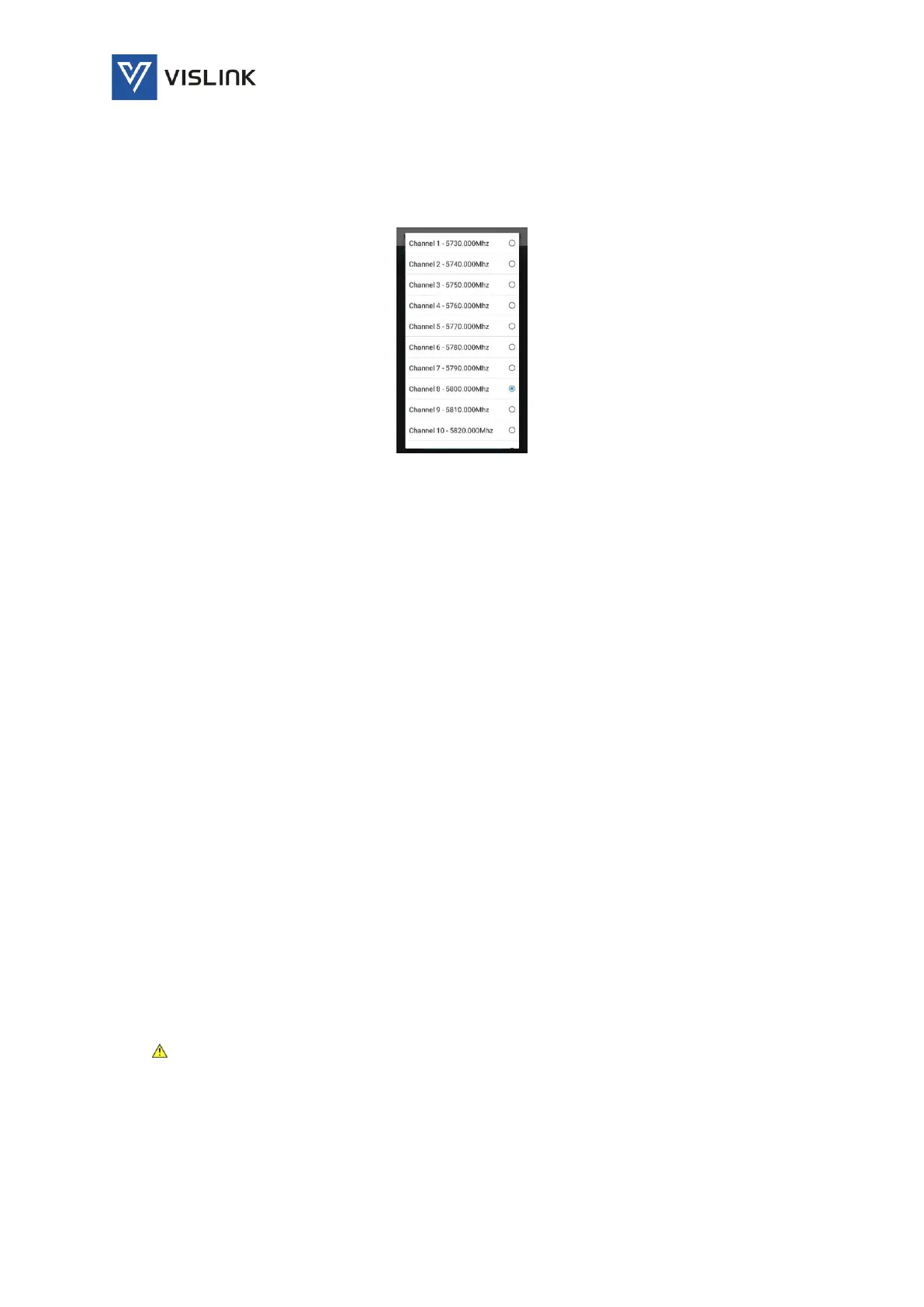

Figure 23 - Microlite 2 Channel Drop-down Menu

8.3.5.3. Modulation Selection

There are two options for modulation:

1. High quality

• Constellation-16QAM

• Code rate- 3/4

• Guard Interval- 1/8

• Bandwidth- 8 MHz

• Data rate-16.59 Mbps

2. Long Range:

• Constellation- QPSK

• Code rate- 1/2

• Guard Interval- 1/8

• Bandwidth- 8 MHz

• Data rate-5.53 Mbps

8.3.5.4. Manual Settings

Each field under manual setting can be specifically chosen based on the application.

• Constellation- 16QAM, QPSK

• Code Rate-1/2, 2/3,3/4, 5/6, 7/8

• Guard Interval- 1/32, 1/16, 1/8, 1/4

• Bandwidth- 5 MHz, 6 MHz, 7 MHz, 8 MHz

NOTE:

1. Make sure to click the Apply button after making changes to the

Channel/Modulation/Manual Settings.

2. When you select a parameter, the button is black until the ‘Apply’ button is

clicked.
