8.5.3. Set-Up
Set the system as shown in the figure below.
Note: The ULRX or L2174 must be on the ‘inverted’ spectrum for the video to
lock with the MicroLite in LMST.

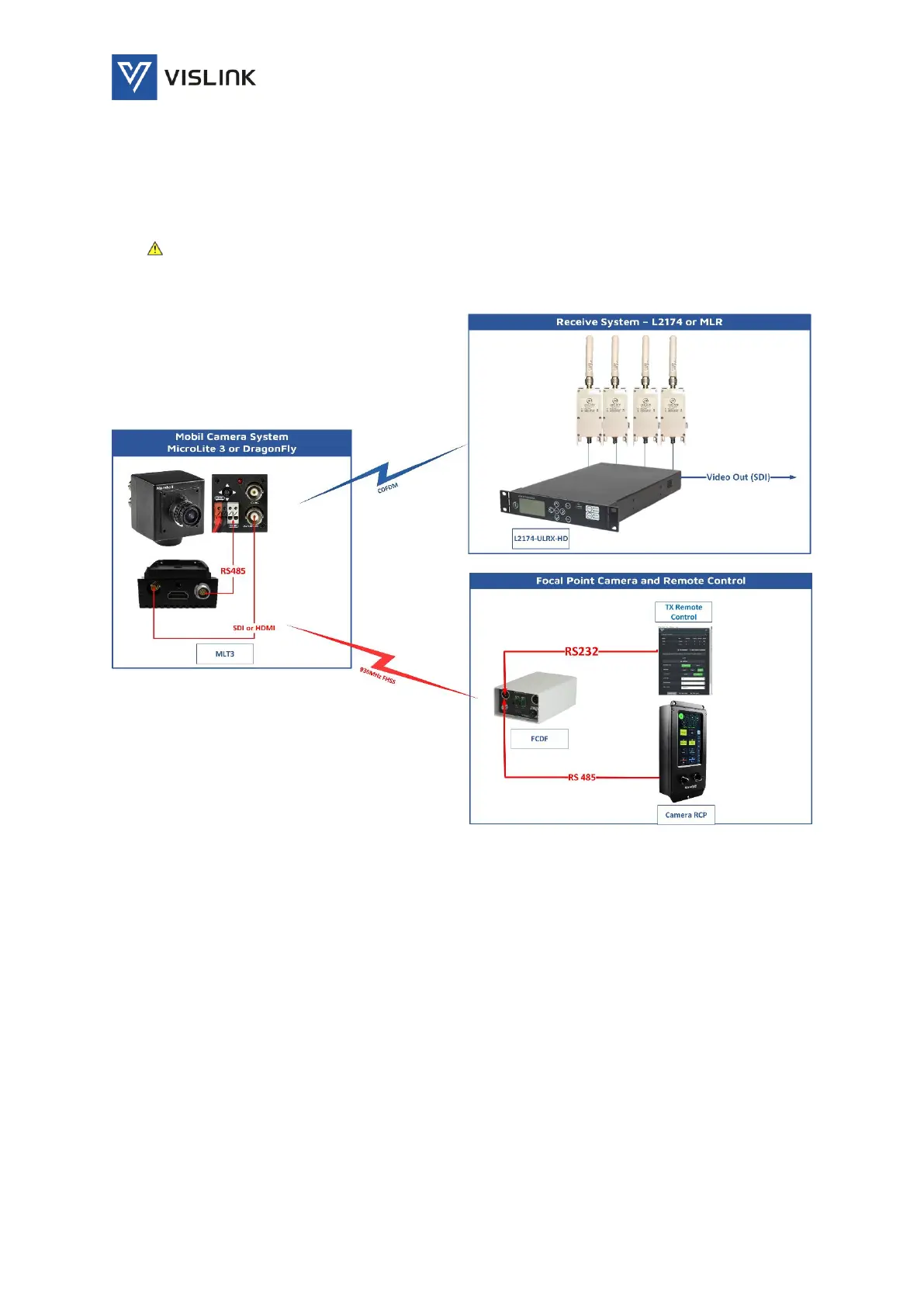

Figure 26: MLT3 RC and CC Typical Set Up with Direct Connect
