Operators Manual
Operation
M55-ML3-UG, Rev A
41
8.6. Remote Control Application
The remote control application is broken into 4 sections. Tab 1 contains the following
sections:
1) Manage Transmitters - DragonFly Connections
2) Parameter Settings
3) Action Keys
The 2
nd
tab shows stored presets.

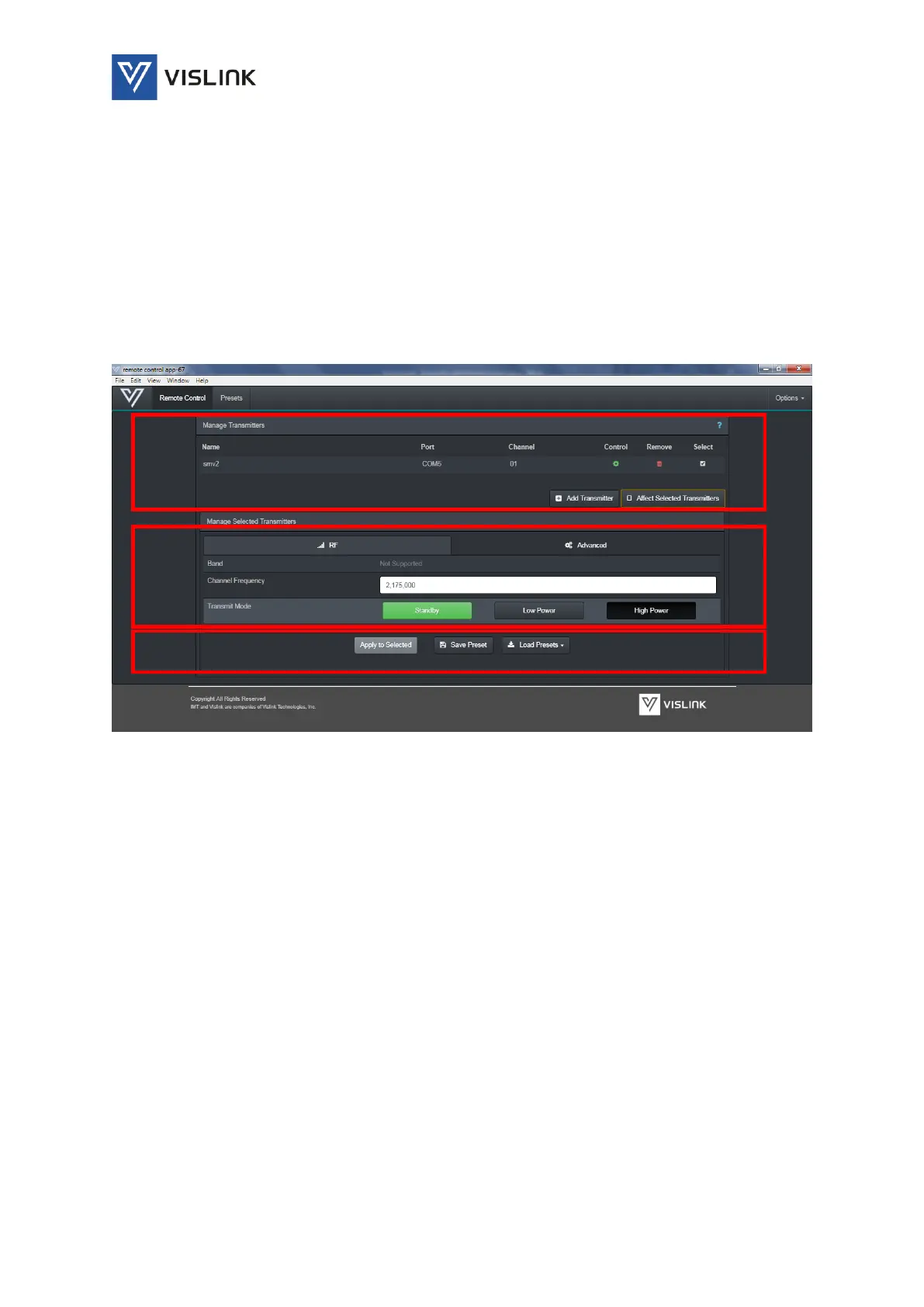

Figure 33: Remote Control Tab Sections
8.6.1. Manage Transmitters
This section allows you to add up to 5 transmitters – and manage them individually or in
groups. The section allows you to add transmitters by name (above shows by serial
number) and to choose the channel. Each transmitter must be configured for each
individual channel using the Wi-Fi local interface. MicroLite’s channel cannot be
programmed from the VRC application. The Manage Transmitter section includes:
1) Name – Name given to the individual transmitter.
2) Port – The port connection on the device.
3) Channel – Transmitter telemetry channel.
4) Control – allows to ping and retrieve transmitters status and set up to remote control this
transmitter chosen.
5) Remove – to delete the transmitter.
6) Select – checking this box assigns these transmitters to the ‘Affect Selected Transmitters’
function for multi-transmitter control.
7) ‘?’ – User information
8) ‘Add Transmitter’ - Press this button enables the addition of a new transmitter.
9) ‘Affect Selected Device’ enables the management of several chose transmitters.
