Vislink Microlite 3 - TX-Settings Page; Transmit Settings Configuration; Advanced Settings Configuration

Operators Manual
Operation
M55-ML3-UG, Rev A 30
8.3.5. TX-Settings Page
The Settings tab features two sub-tabs:
• Transmit – Controls band, modulation type, and modulation parameters
• Advanced – User Data, Telemetry, and Encryption
8.3.5.1. Transmit Settings
The channel and modulation may be set or changed on this page. The page also displays
current device parameters highlighted in green.
1. Band (optional) – To change the frequency band, click your selection. Click Apply to apply
the changes. A blue outline indicates the current channel.
2. Modulation Type – DVB-T or LMST depending on application and pair receiver.
3. Modulation – The modulation section features 2 modulation schemes – 2 presets and one
manual. The preset values are chosen for 2 different applications:
• High Quality – This gives a high bit rate when quality is a premium. The range will be
shorter. Hover over the button to expose the parameters.
• Long Range – Decent quality, but longer range.
• Manual Modulation – Select constellation, bandwidth, code rate, and guard interval.

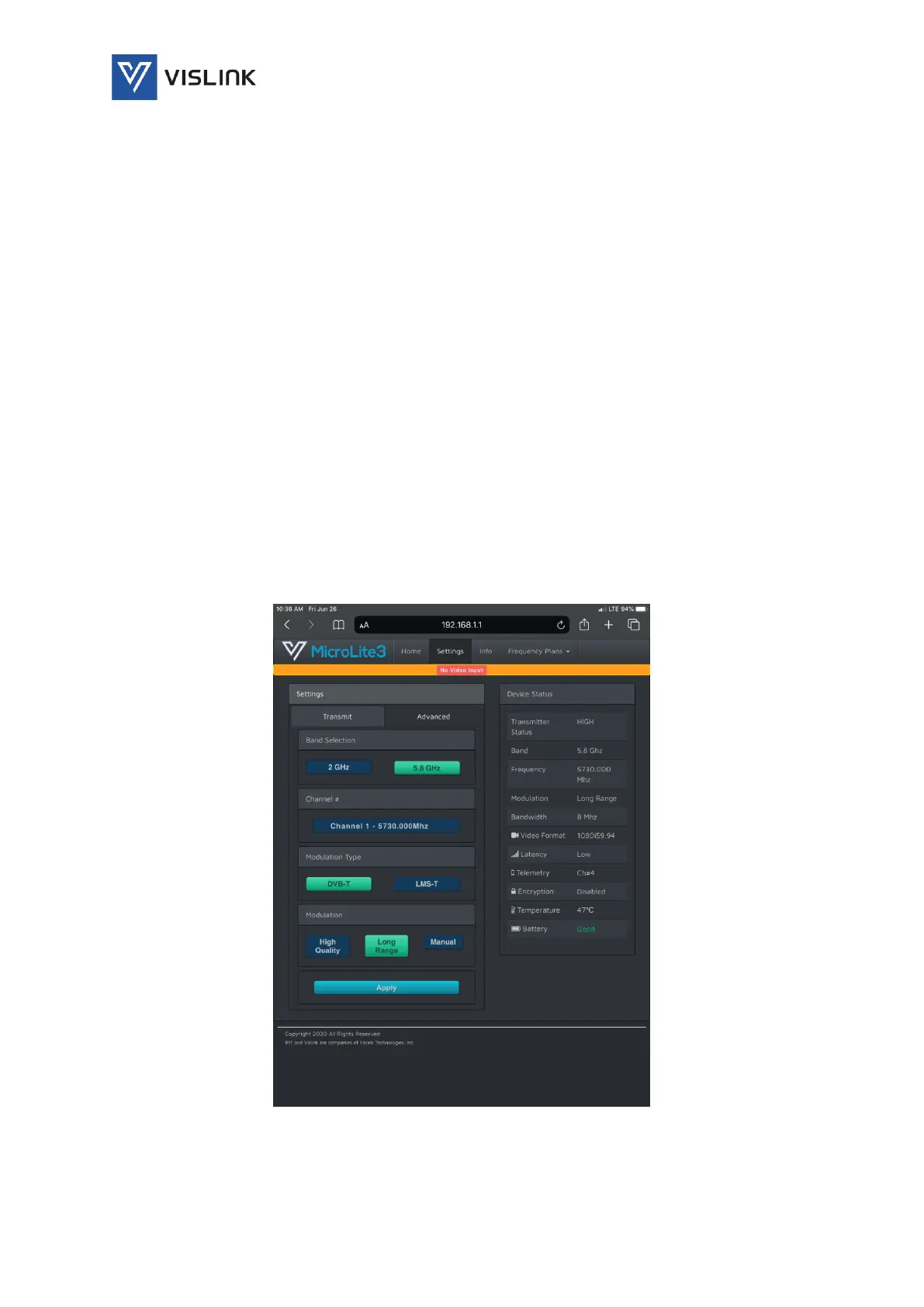

Figure 22 - Microlite 3 Transmitter Settings Page (Tablet View)
