Technical Reference Manual-XPM3m Revision Date: August 2014

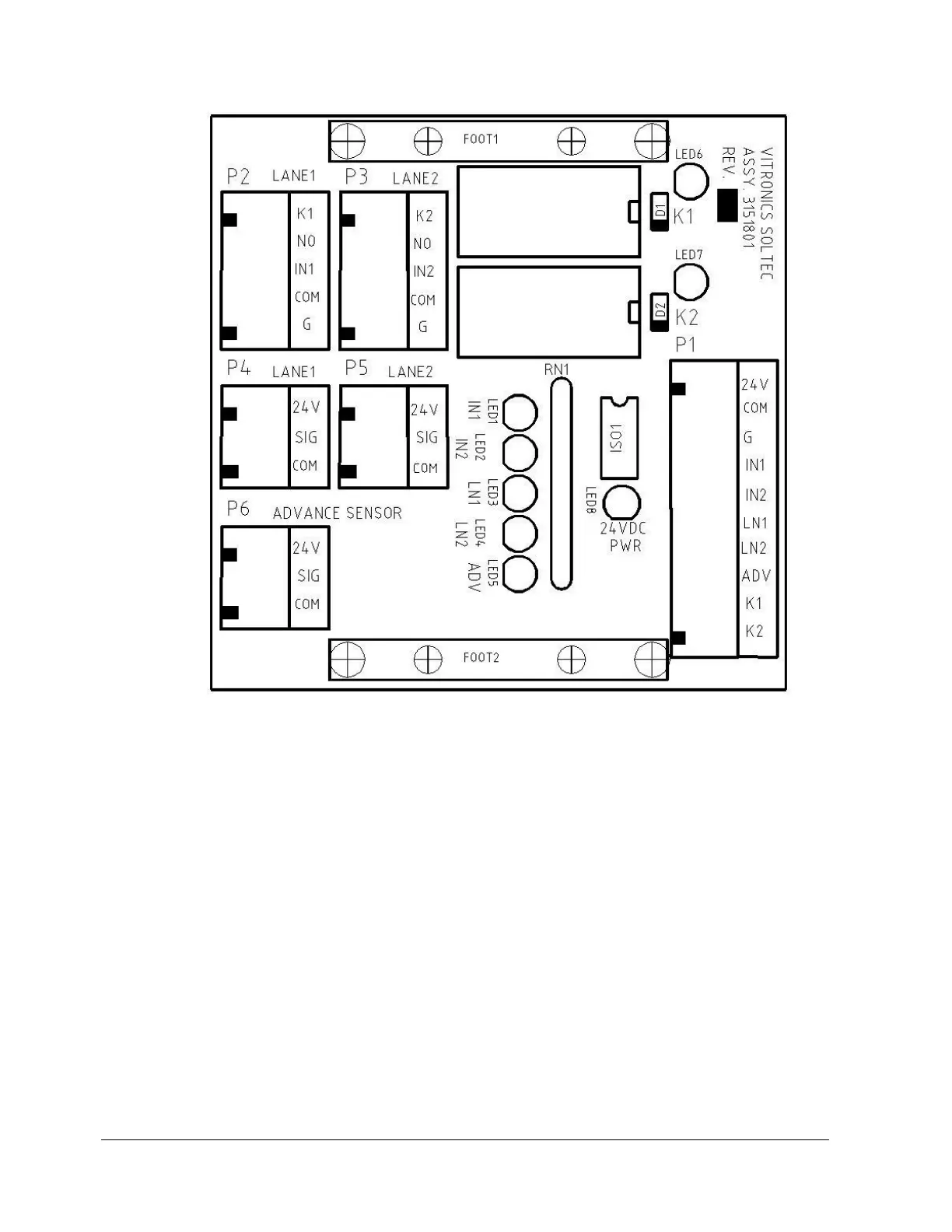

E3151801A ASSY SMEMA/BOARD TRACKING INTERFACE PCB
K1 is installed for a single or dual lane SMEMA configuration by plugging in a SPST relay (E1480201).
K2 is installed for a dual lane SMEMA configuration by plugging in a SPST relay (E1480201).
P1 WA100 interface cable to oven for on-load connections or WA101 interface cable to oven for off-load
connections.
P2 lane 1 SMEMA cable assembly E3153401 on-load or E3153402 off-load.
P3 lane 2 SMEMA cable assembly E3153401 on-load or E3153402 off-load.
P4 lane 1 on-load or off-load board sensor.
P5 lane 2 on-load or off-load board sensor.
P6 lane 3 on-load or off-load board sensor.
LED1 lane 1 board available at on-load from SMEMA interface.
LED2 lane 2 board available at on-load from SMEMA interface.
LED3 lane 1 on-load or off-load board sensor signal.
LED4 lane 2 on-load or off-load board sensor signal.
LED5 lane 3 on-load or off-load board sensor signal.
LED6 lane 1 oven is ready to accept boards to upstream or lane 1 board is available to downstream.
LED8 lane 1 oven is ready to accept boards to upstream or lane 1 board is available to downstream.
LED9 24vdc power is present to the E3151801 board.
