Technical Reference Manual-XPM3m Revision Date: August 2014
AUTO CHAIN LUBE TANK/PUMP ASSY
Operation:
The pump will output 3 drops of oil for every 90 seconds of conveyor chain travel. The oil is sent through the oil
distribution hoses up to the stainless steel brushes.
Priming:
Priming the system through the software can be very time consuming because of the low displacement of the
pump...
Priming should only be necessary after:
1. Servicing the auto lube system
2. The reservoir has been allowed to run dry and air has been pumped into the lube lines
Location:

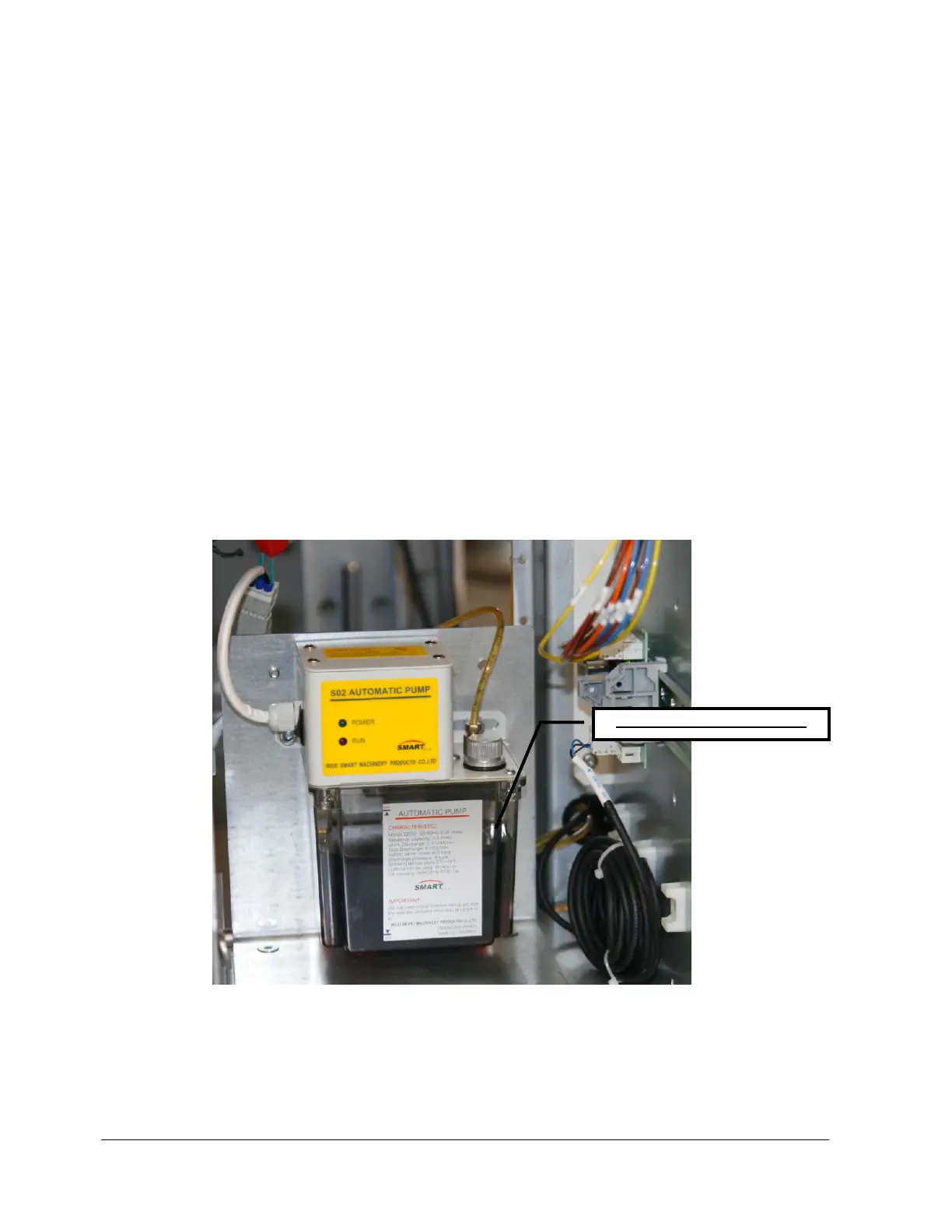

The Lubrication Tank-Pump Assembly is mounted to the frame at the front of the oven, inside the utility cabinet, at
the exit end of the oven.
