MESH BELT CONVEYOR SYSTEM

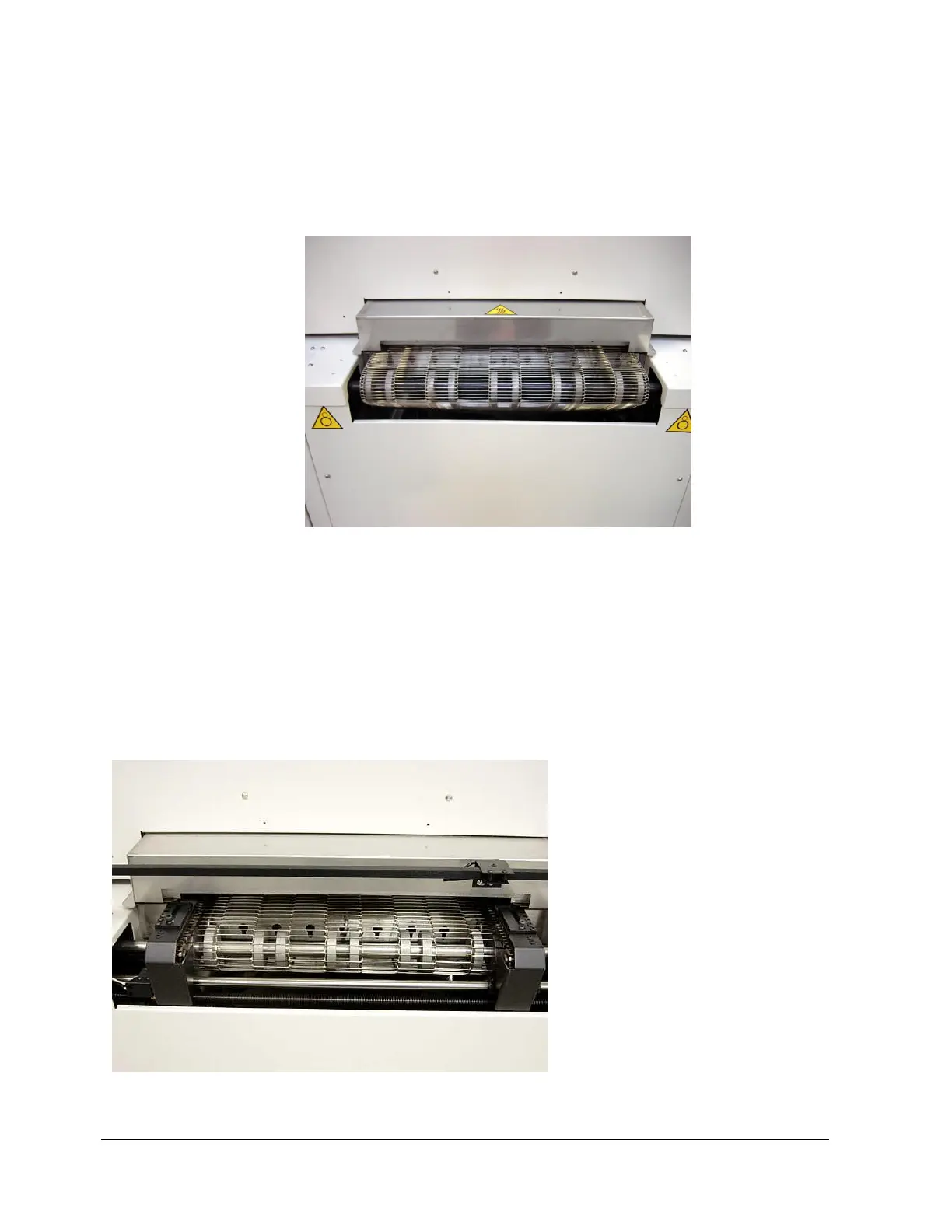

The mesh belt conveyor system is used to process single sided surface mount printed circuit boards.
COMBINATION CONVEYOR SYSTEM
The combination belt/rail conveyor has both the edge rail and the mesh belt. The mesh belt is below the edge rail
conveyors, and both conveyors are driven together. The belt conveyor is shorter than the outside edge of the
machine with the sheet metal covers on, and shorter than the end of the rails with chain guards installed.
Approximately 3 inches (76.2mm)
between end of belt and end of rail
conveyor (both ends).
