FLOW DIAGRAM – EC2 OPTION

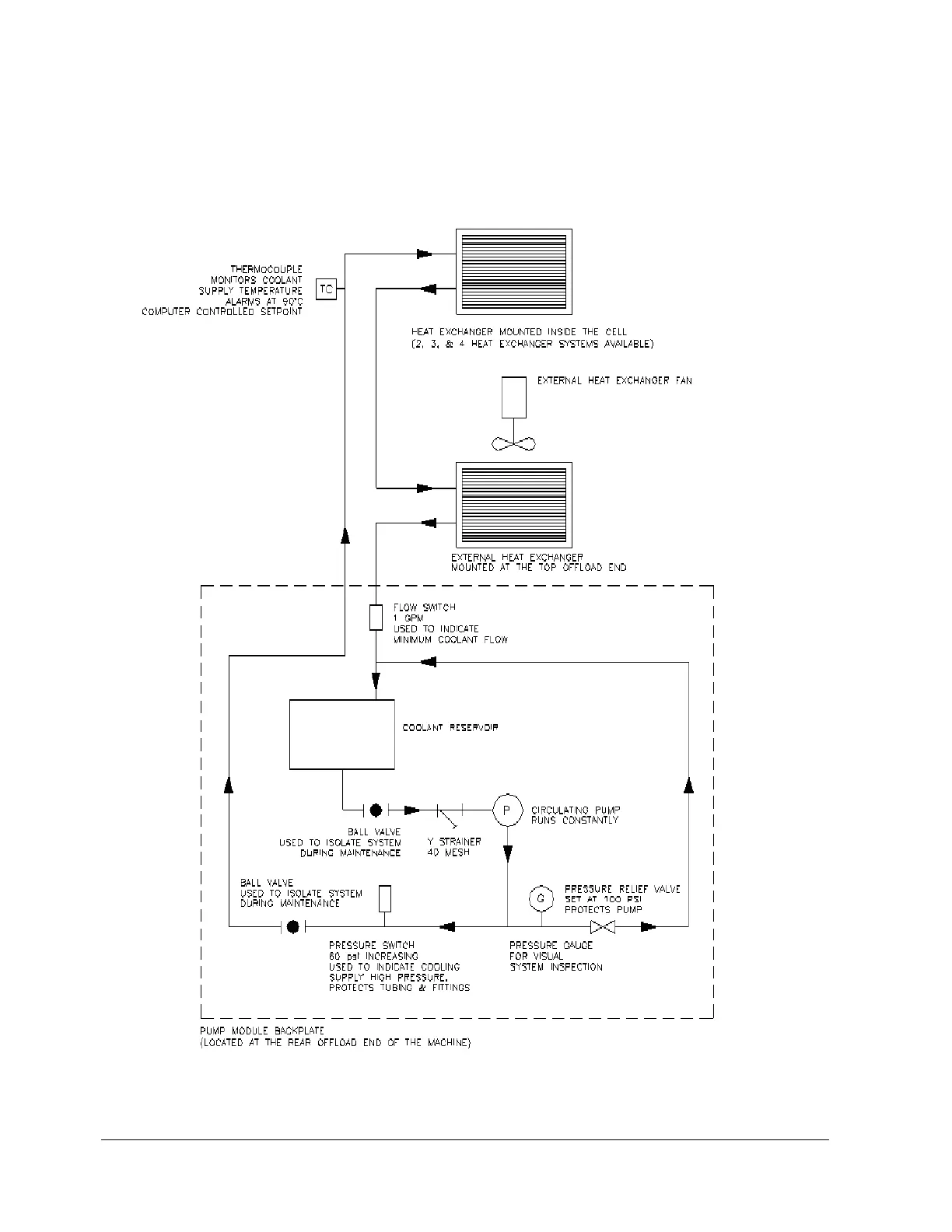

The following diagram shows the Polar Cooling™ option configured for an oven with two cooling zones. (Three or
four cooling zones would be similar)
