Technical Reference Manual-XPM3m Revision Date: August 2014
HOODLIFTS
Standard, (installed on all ovens) An option, (NOT installed on all ovens)
Operation;
The electromechanical actuators raise and lower the Hood (including the upper heat zones of the oven). All models
of Vitronics Soltec Reflow Ovens have 2 or 3 (depending on oven size) LINAK hoodlift Actuators with a LINAK
control box directly wired to the HOOD UP and HOOD DOWN selector switch on the oven operator control panel.

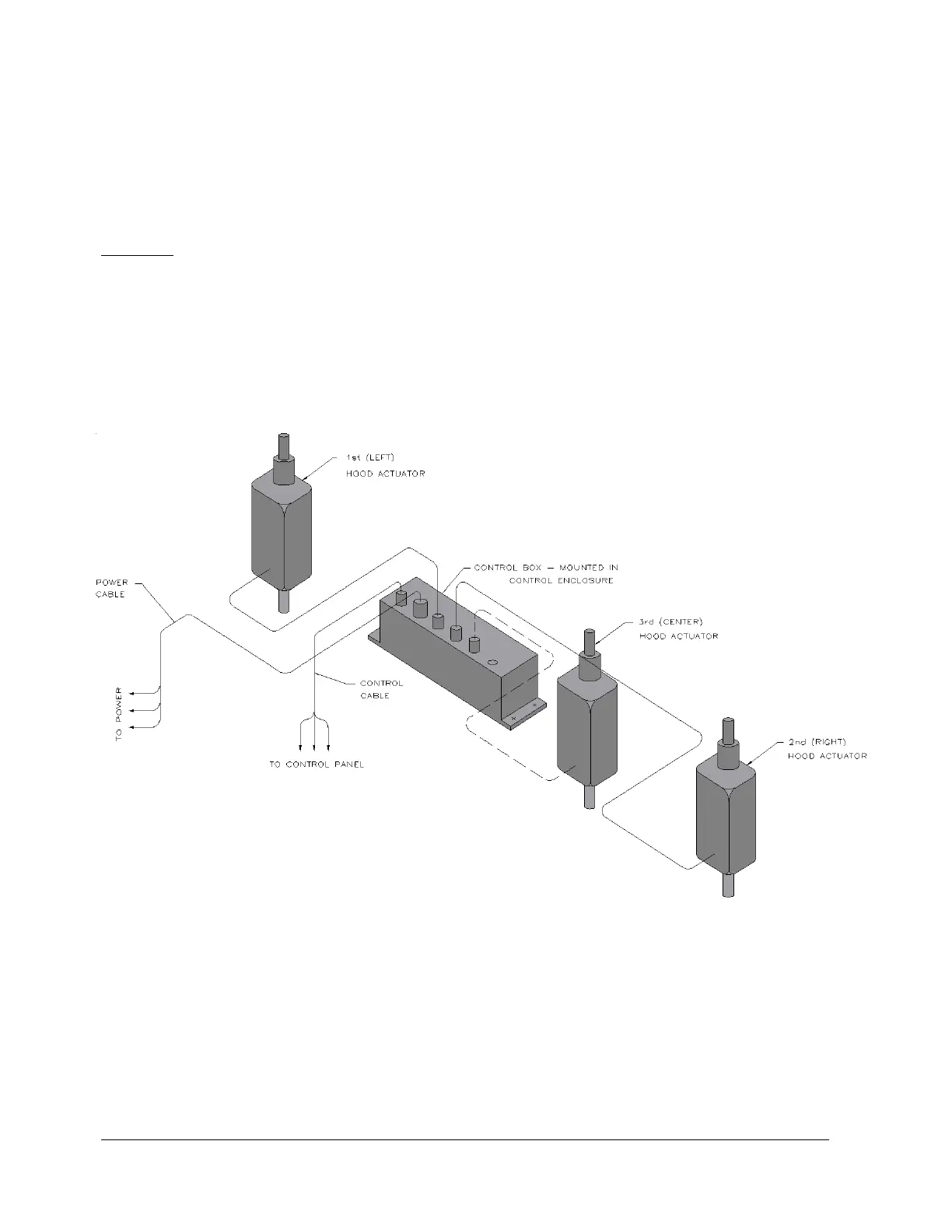

The general arrangement of the LINAK Actuators is shown here. A UPS option is available to permit opening the
Oven Hood in the event of a power failure.
