Technical Reference Manual-XPM3m Revision Date: August 2014
XPM3m HEAT EXCHANGER ASSEMBLIES
The five active XPM3m cooling systems all use air-to-liquid heat exchangers mounted in the upper cool
cells. These heat exchangers are used to transfer heat from the tunnel atmosphere into a liquid that can be
transported out of the cell and exhausted. The method of transportation and exhaust will depend on the cooling
package selected.

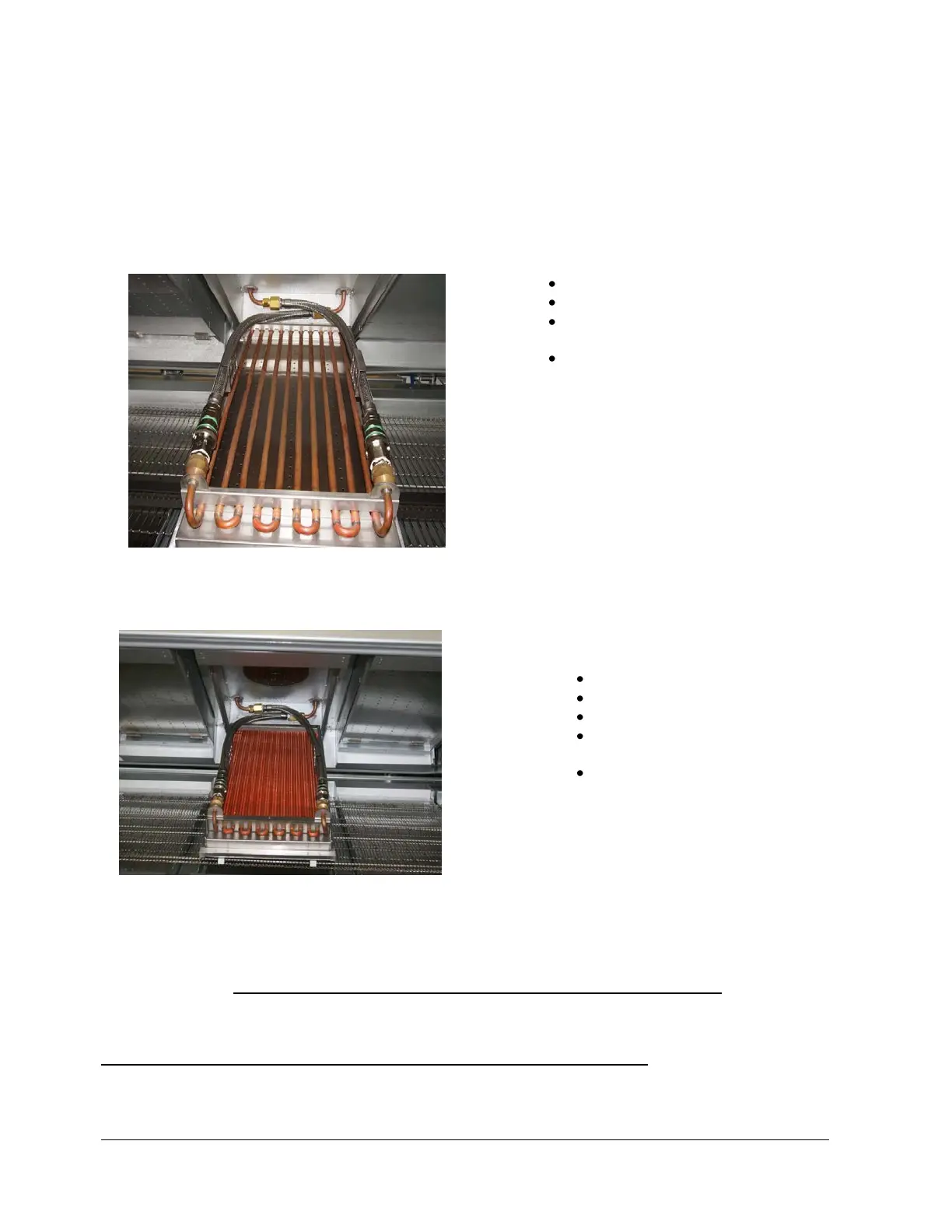

TUBE TYPE HEAT EXCHANGER
Used for basic level cooling systems
Removable for ease of maintenance
Valved quick-disconnect fittings to prevent
fluid loss
Interchangeable with fin & tube type heat
exchanger
FIN & TUBE TYPE HEAT EXCHANGER
Used for enhanced level cooling systems
High efficiency for improved cooling
Removable for ease of maintenance
Valved quick-disconnect fittings to prevent
fluid loss
Interchangeable with tube type heat
exchanger
The cooling fluid is Vitronics Soltec Antifreeze cooling fluid, Part No. C00234 ( 4 liters). During normal
operation, the cooling fluid will be warmer than the “dew point temperature” of the room and not warmer than the
frame of the oven.
DO NOT SUBSTITUTE ANY OTHER FLUID AS COOLANT IN THIS SYSTEM!
