AIR MODE-
The N2 solenoid and the Compressed Air Solenoid will toggle, following the selection of an Air profile by the
operator. All gas flows in the oven remain identical to the N2 Mode, except that Nitrogen is replaced with
compressed Air. Flow ratios and all other process parameters remain identical.
MAINTENANCE
The Flux Flow Control system is virtually maintenance free if operating properly. To ensure this, it is recommended
that the inlet tube from the Flux Flow Control manifold into zone 1 be checked periodically (every six months) for flux
residue.

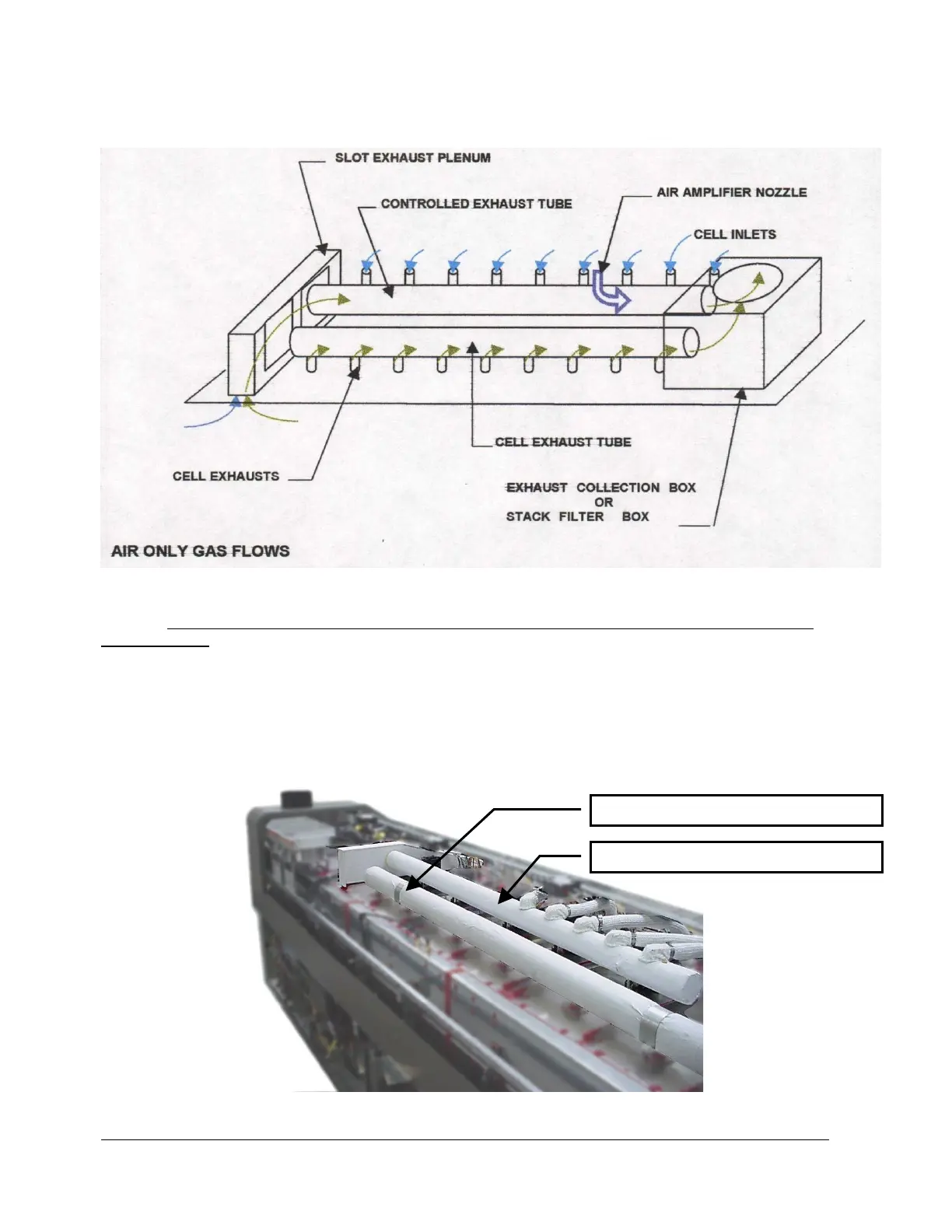

The Flux-Flow Control System is located under the sheet metal skins at the top of the Oven:
Individual Zone Exhaust Duct
