Technical Reference Manual-XPM3m Revision Date: August 2014
5 INCHES(127mm)
2.5 INCHES(63.5mm)
2.75 IN(69.85mm)
6 IN(152.4mm)

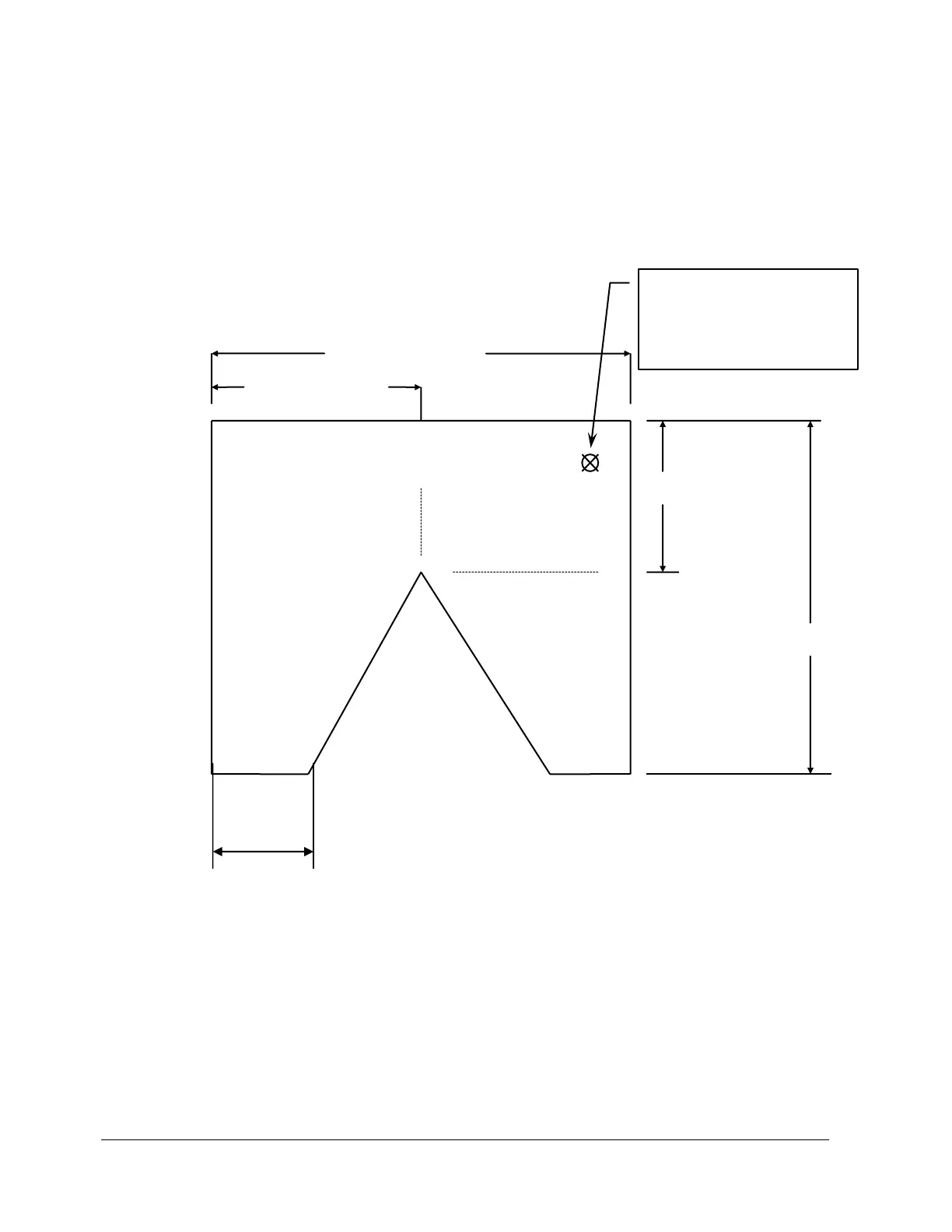

FAN MOTOR GAUGE
-2.7mm Stainless steel sheet
3/4
IN(19mm)
Hole is to facilitate removal of
gauge from under blower
wheel. 12mm drill bit, 12mm
from out outside edges.
