High-performance Universal Joint Shafts
J.M. Voith SE & Co. KG/VTA | Instruction Manual
24
High
-performance universal joint shaft
Instruction manual (Translation)
G853 en 07/2013, Version1

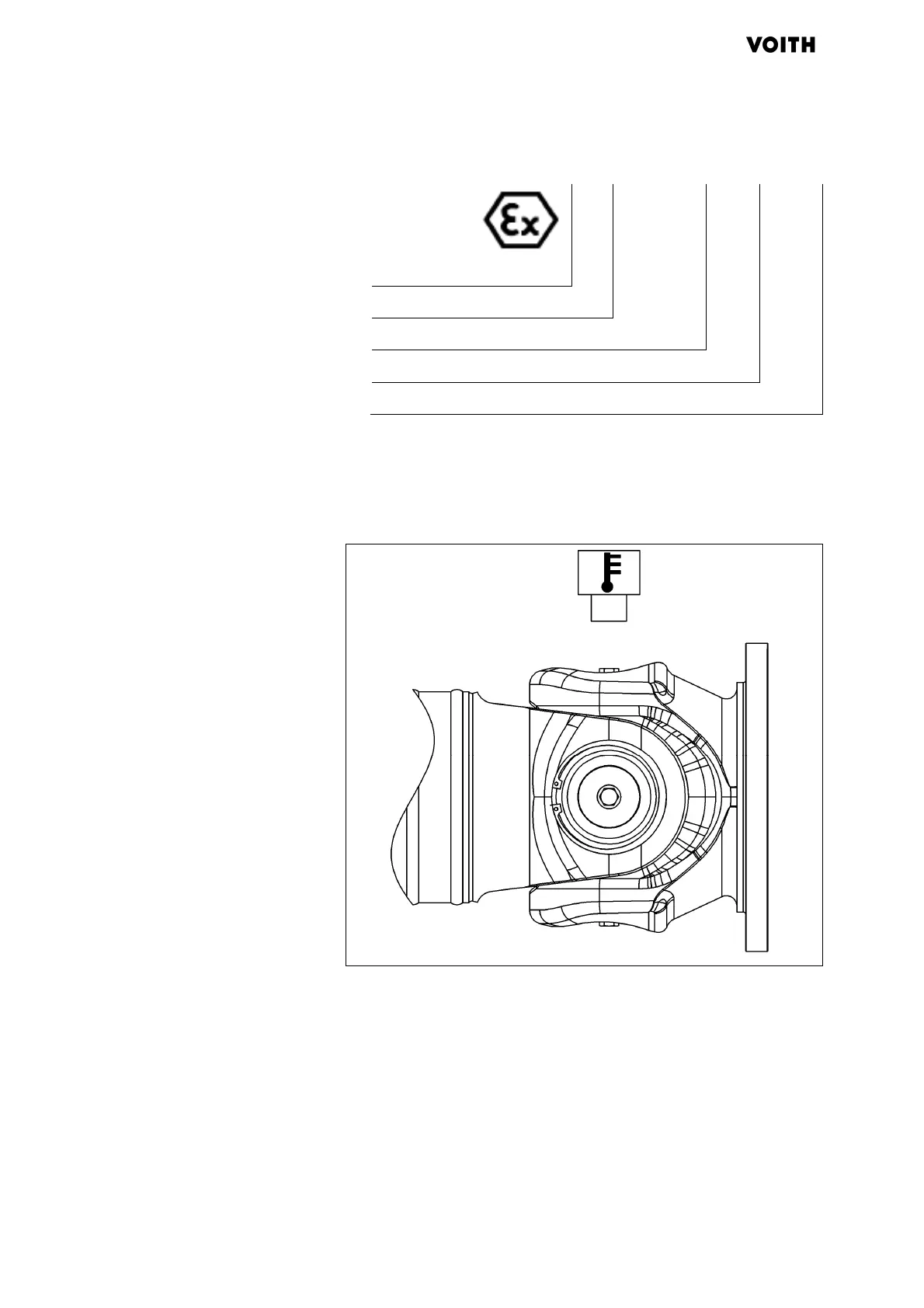

The ATEX identifier shown in Pos. 3 of the nameplate is
composed as follows, in accordance with DIN 13463-1:
II 2GD c T3
EX identifier
Equipment group
Equipment category
Type of ignition protection
Temperature range
For ATEX-certified universal joint shafts, the surface temperature
in the field of joint bearings should not exceed 140°C.
 Voith recommends at both joints to attach a temperature
monitoring in the field of joint bearings (Fig. 3.3, page 24).
Fig. 3.3: Schematic structure of temperature monitoring
The temperature monitoring is not included in the Voith scope
of delivery and must be provided by the operator.
