Voith CH Series - Removing Preservation; Transport Universal Joint Shaft to the Installation Location; Fig. 6.3: Universal Joint Shaft

Installation
J.M. Voith SE & Co. KG/VTA | Instruction Manual
44
High
-performance universal joint shaft
Instruction manual (Translation)
G853 en 07/2013, Version1
6.2.1 Removing preservation
DANGER
Cleaning agents can contain acidic materials and additives!
 Wear safety glasses and suitable protective gloves.
 Heed the manufacturer's safety data sheets.
DANGER
There is a danger of fire due to use/processing of flammable
cleaning/anticorrosion agents!
 Ensure sufficient ventilation.
 Prevent direct bodily contact and inhalation.
 Heed the manufacturer's safety data sheets.
Remove the anticorrosion agent with cleaning agents.
6.2.2 Transport universal joint shaft to the installation location

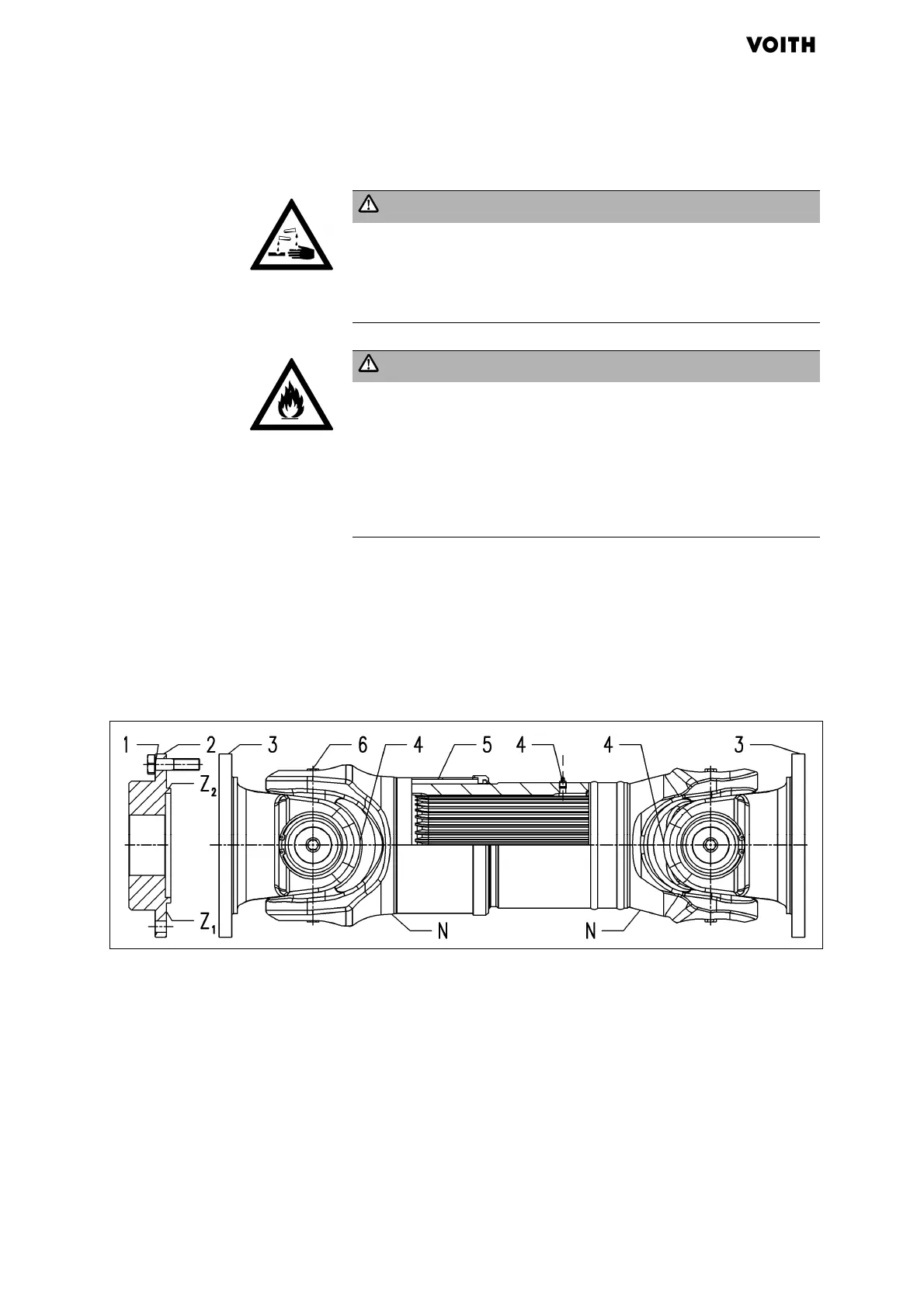

Fig. 6.3: Universal joint shaft
1 Screw 4 Grease/lubricating nipple N Zero marking, e.g. arrow
2 Connecting flange
(output, input side)
5 For telescopic lengths:
profile guard
Z
1
Axial run-out
Z
2
Radial run-out
3 Flange yoke 6 Screw plug
