Voith CH Series - Fig. 9.3: Reading off Deflection Dimension

Maintenance
J.M. Voith SE & Co. KG/VTA | Instruction Manual
60
High
-performance universal joint shaft
Instruction manual (Translation)
G853 en 07/2013, Version1

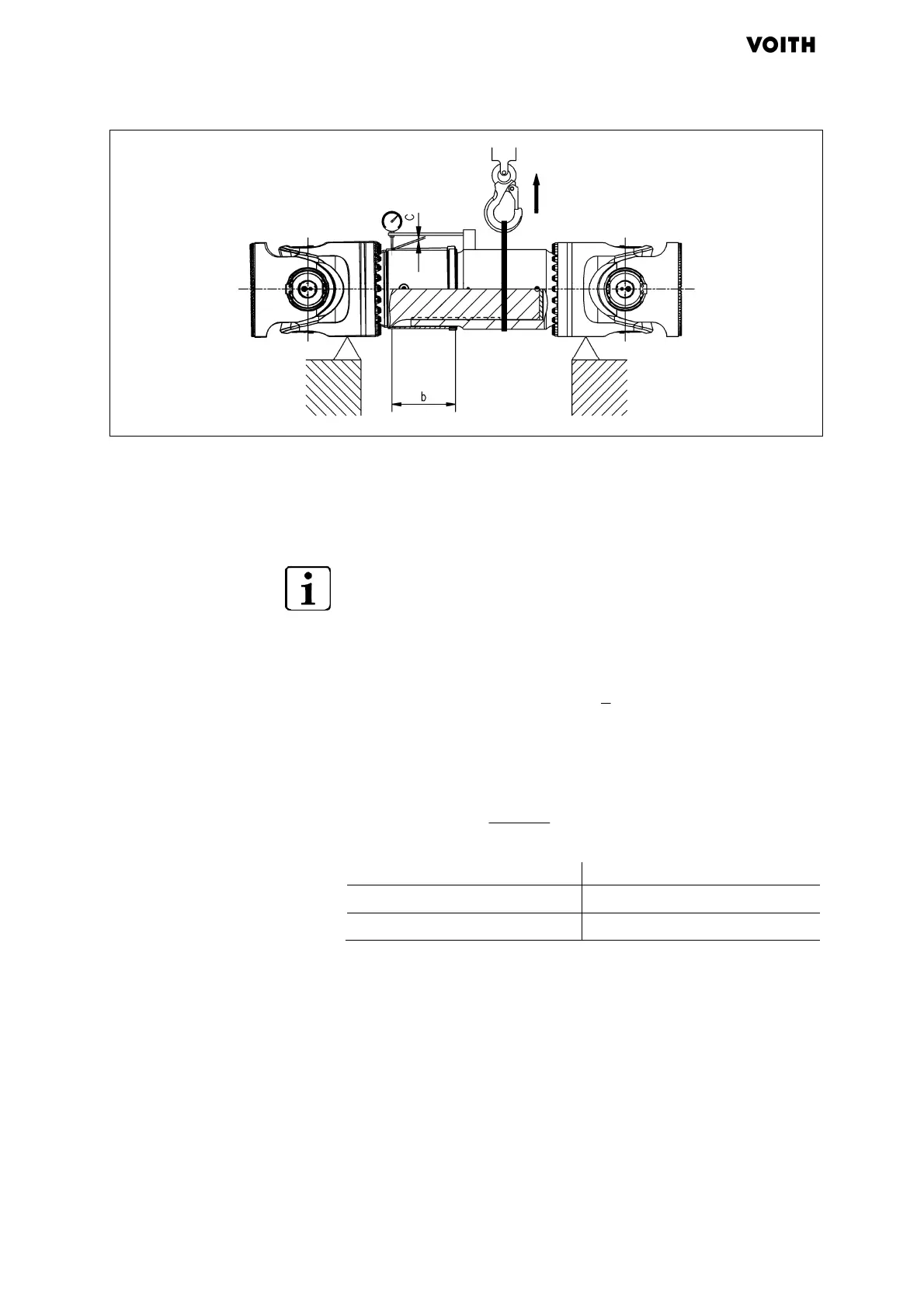

Fig. 9.3: Reading off deflection dimension
3. Apply dial gauge and set scale to "0."
4. Measure distance b from the measurement point to the middle
of the key profile.
 Heed force for lifting the universal joint shaft: max. 1.5 x
weight of the universal joint shaft.
5. Lift the universal joint shaft and read the measured value from
the dial gauge.
6. Calculate deflection ratio K:
b
c
K =
Example:
D
imension b = 300 mm Dimension c = 0.36 mm
deflection ratio 0,0012
mm 300
mm 0,36
K ==
Speed [min
-
1
]
Max. deflection
ratio
< 500 0.004
> 500 0.003
Tab. 9.3: Permissible deflection ratio
If exceeded:
 Send universal joint shaft to manufacturer.
c
