6.4 Additional regulations for use in paper machines

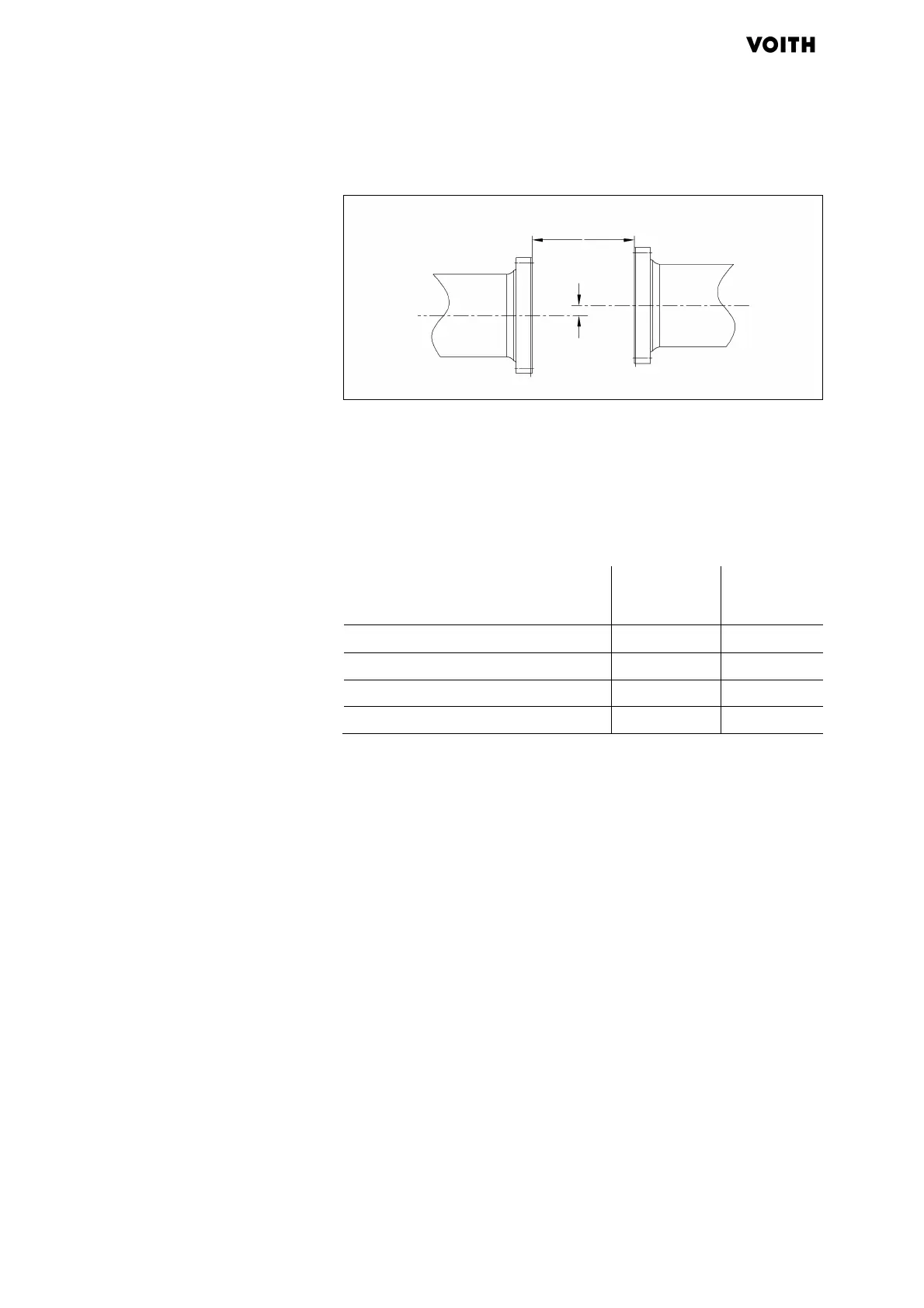

Fig. 6.7: Checking radial offset and flange distance (with use in paper
machines)
∆ r Radial offset ∆ a Flange distance

Adhere to permissible radial offset and flange distance for
alignment of the input and output shafts when installing the
universal joint shafts:
Type
Universal joint shaft
length l
[mm]
∆
r
[mm]
∆
a
[mm]
Standard < 800 ± 2 ± 2
Standard 800–1500 ± 3 ± 3
Standard 1500–2500 ± 4 ± 4
Standard > 2500 ± 5 ± 5
Tab. 6.5: Permissible radial offset and flange distance (for use in paper
machines)
 Only use the bolts that are screwed into the associated
flange yoke.
∆ a
∆
r
