6.2.5 Checking the differential angle of the front faces of the connecting flange (with Z
arrangement)

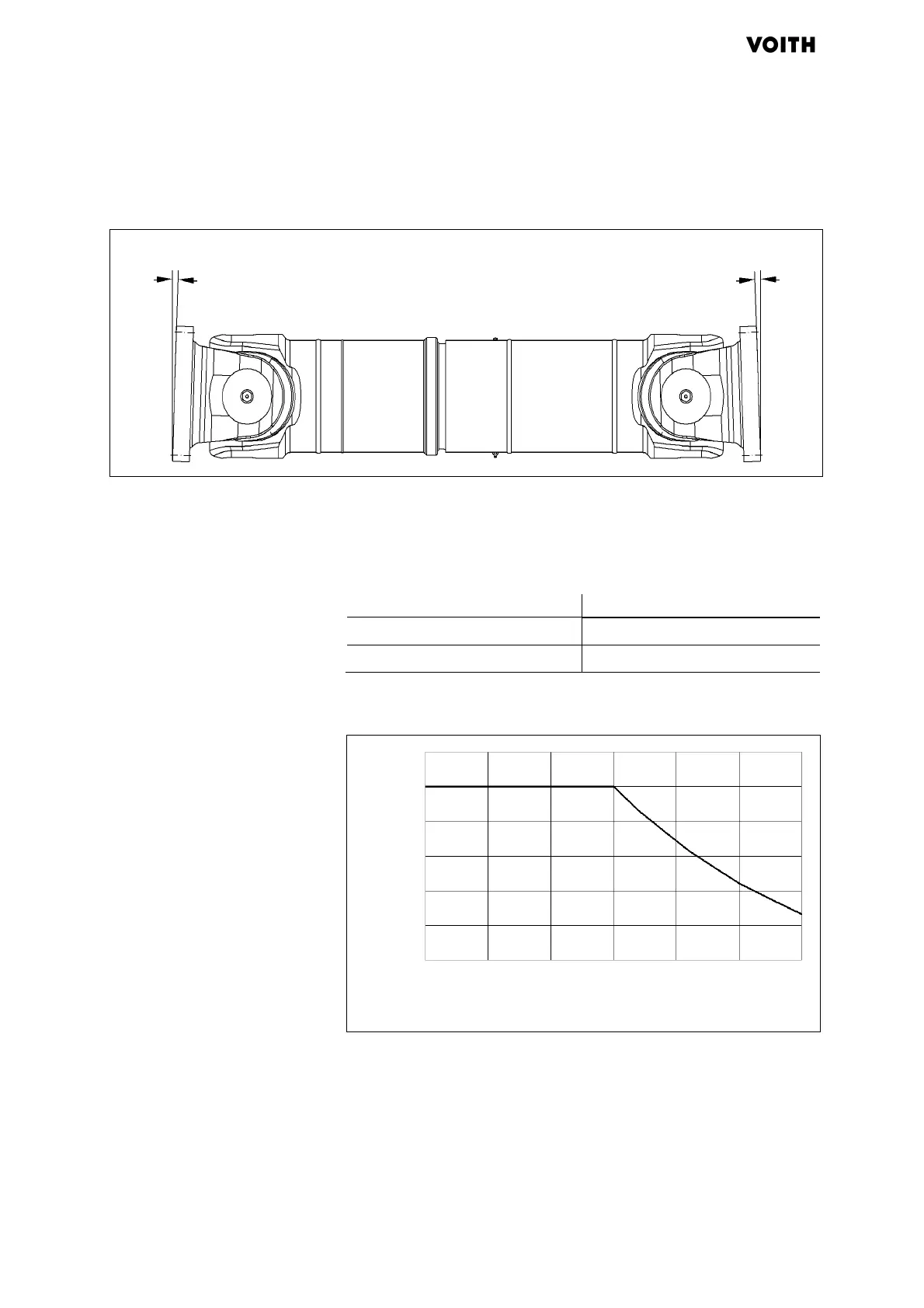

Fig. 6.4: Checking the difference in joint angle between the faces of the
connecting flanges
1. Checking the difference in joint angle between the faces of the
connecting flanges:
Speed [min
-
1
]
Max. differential angle [°]
< 1500 0.5
> 1500 Fig. 6.5, page 46
Tab. 6.3: Permissible differential angle (with Z arrangement)
2. In case of deviation: Realign connecting flange
Fig. 6.5: Permissible differential angle (with Z arrangement)
0.5°
a
0.5°
a
0.5
0.4
0.3
0.2
0.1
0
Differential angle [°]
0 500 1000 1500 2000 2500 3000
Speed [min
-1
]
