Scope of Delivery
Multimeter with spay-cast rubber protection
9V block battery
Safety measuring cable
Operating instructions

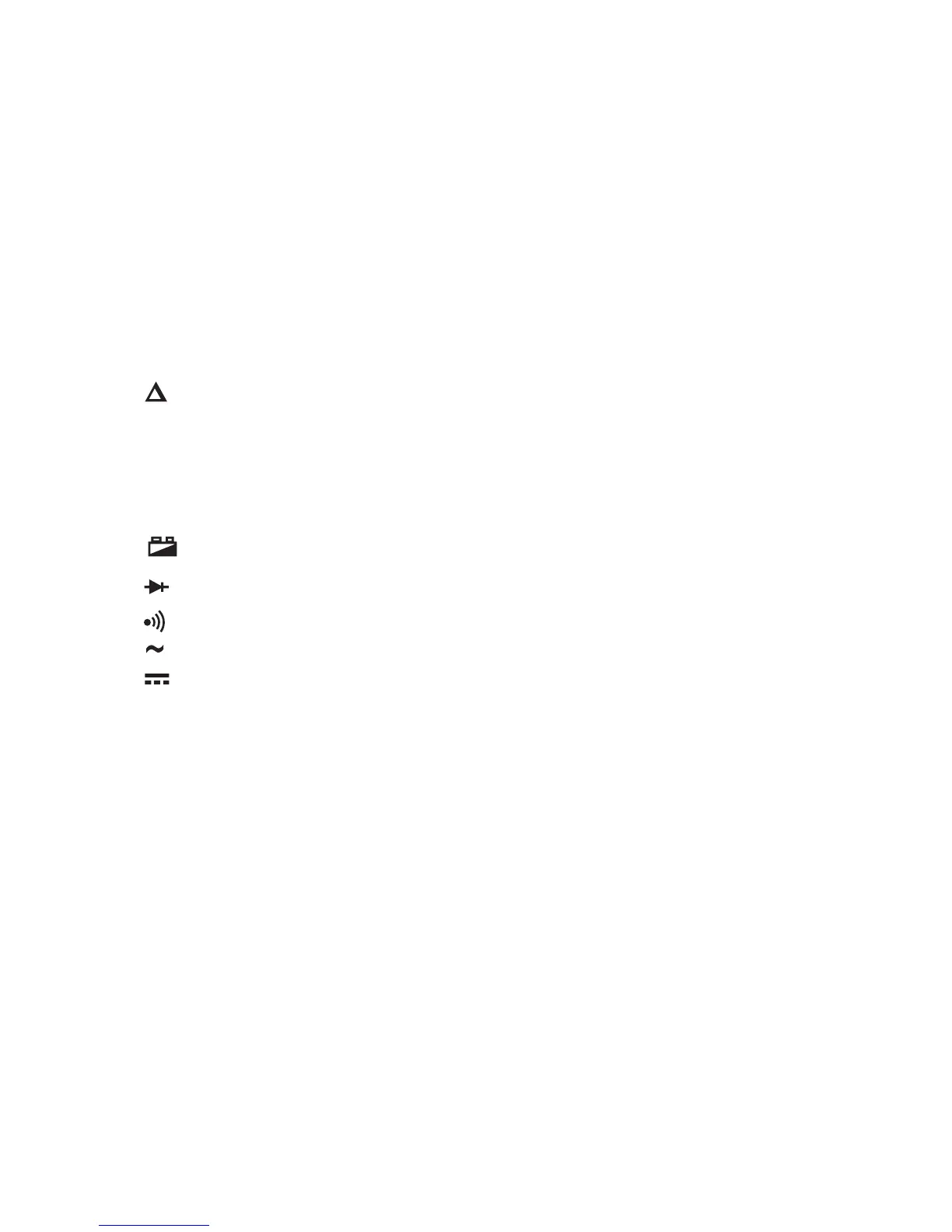

Display Indications and Symbols
The symbols and indications are different for each model. This is a summary of all possible symbols and
information of the VC800 series.
Delta symbol for relative value measuring (= reference value measuring)
Auto range stands for “automatic measuring range selection”
H Data-Hold function is active
OL Overload = the measuring range was exceeded
OFF Switch position “off”
Battery replacement symbol; please replace the batteries immediately to avoid mea-
suring errors!
Symbol for the diode test
Symbol for the acoustic continuity tester
AC Alternating current for voltage and current
DC Direct current for voltage and current
mV Millivolt (exp.–3)
V Volt (unit of electric potential difference or voltage)
A Ampere (unit of electric current)
mA Milliampere (exp.–3)
µA Microampere (exp.-6)
Hz Hertz (unit of frequency)
kHz Kilo Hertz (exp.3)
MHz Mega Hertz (exp.6)
% Duty-Cycle, shows the ratio of the positive half half-wave in percent
°C Degrees Celsius
°F Degrees Fahrenheit
Ω Ohm (unit of electric impedance)
kΩ Kilo Ohm (exp.3)
