42

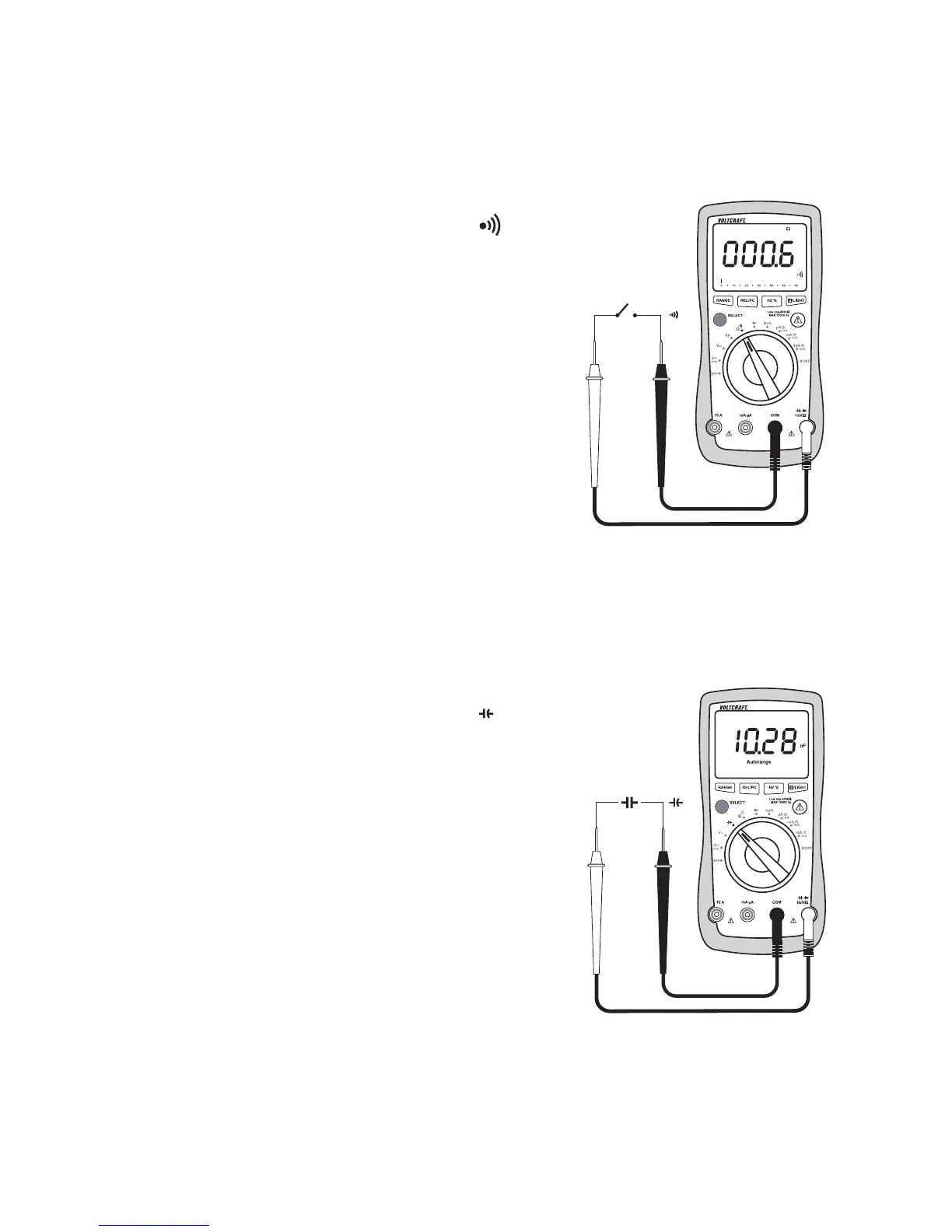

g) Continuity Check
Make sure that all the circuit parts, switches and components and other objects of
measurement are disconnected from the voltage and discharged.
- Turn the DMM on and select measuring range
.
Press
“SELECT” button to switch measurement functions. The
symbol for continuity check now appears in the display.
Pressing this button again takes you to the first measu-
ring function etc.
- Plug the red measuring line into the Ω measuring jack and
the black measuring line into the COM measuring jack (8)
- A continuity value of less than 30 Ohm is identified as
continuity; in this case a beep sounds.
- As soon as “OL.” (overload) appears on the display, you
have exceeded the measuring range or the measuring
circuit has been interrupted.
- After measuring, remove the measuring lines from the
measured object and turn the DMM off.
h) Capacity Measuring
Make sure that all the circuit parts, switches and components and other objects of
measurement are disconnected from the voltage and discharged.
With electrolyte capacitors, ensure that you observe the polarity.
- Turn the DMM on and select measuring range
- Plug the red measuring line into the V measuring jack and
the black measuring line into the COM measuring jack (8) .
- The display shows the unit “nF”.
Due to the sensitive measuring input, the
display may show a value in case of “open”
measuring lines. By pressing the button
“REL”, the display is set to “0”. The Auto
range function remains active.
- Now connect the two test prods (red = positive pole/black
= negative pole) with the object to be measured (conden-
ser). After a short while the display shows the capacity.
Wait until the displayed value has stabilised. With capaci-
ties of >40 µF, this may take a few seconds.
- If “OL” (overload) appears on the display, you have exceeded the measuring range.
- After measuring, remove the measuring lines from the measured object and turn the DMM off.
