Voltwerk VS 3, 4, 5 Operating manual 39
5 Installation
ENGLISH
DO_BA_2008_121LB_3ENG_BVo 22.2.10
CAN cable
For the connection you will require a 5-pin CAN cable with a
5-pin M12 socket on one end and a 5-pin M12 plug on the
other.
Damage due to incorrect connection.
Incorrect wire configuration may restrict functionality of the
inverter, or may damage it.
| Check the correct assignment of the wires to the female
connectors according to the wiring diagram.

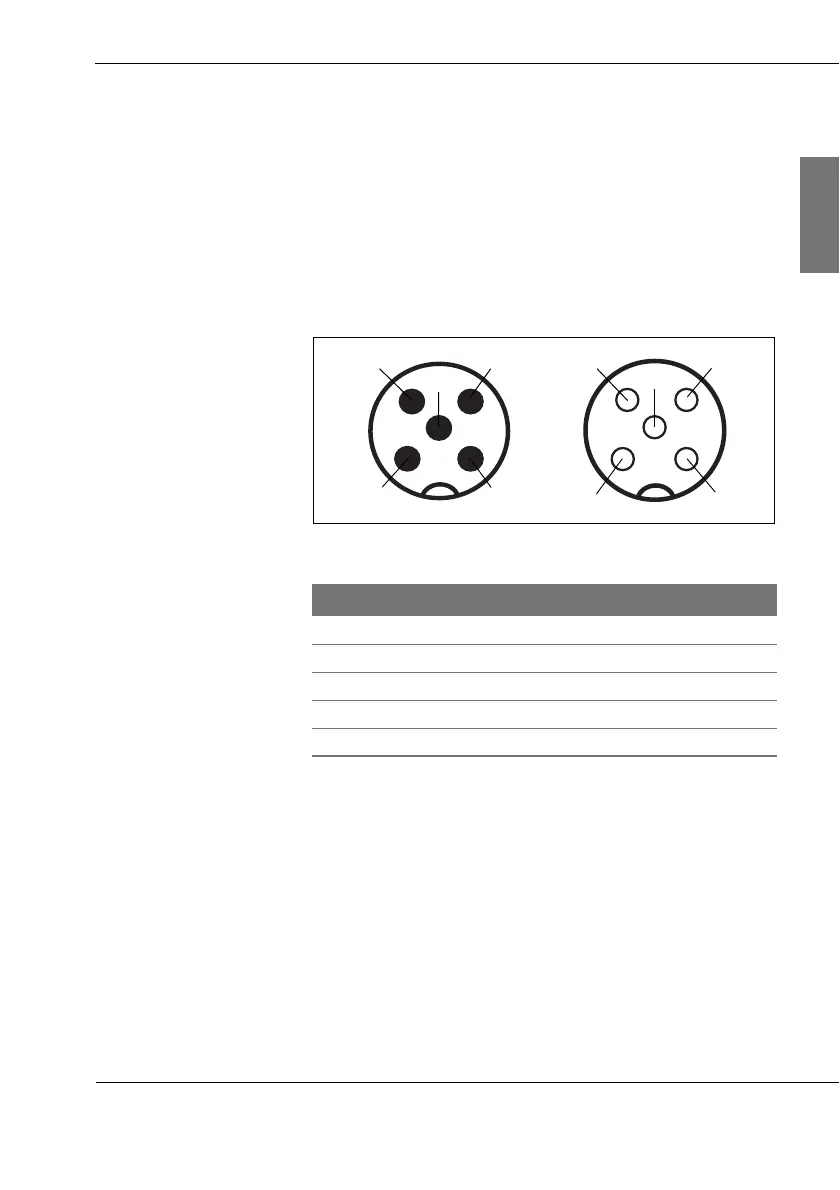

5.5: Wiring diagram: plug (left) and socket (right)
No. Assignment
(1) –
(2) –
(3) CAN GND
(4) CAN H
(5) CAN L
(1)
(1)
(2)
(2)
(3)
(4)
(3)
(4)
(5)
(5)
