50 Operating manual Voltwerk VS 3, 4, 5
7 Maintenance and disassembly
ENGLISH
DO_BA_2008_121LB_3ENG_BVo 22.2.10
3. Loosen the solar power system cables:
| Press in both connector plug snap clips.
| Remove the solar power system cables.

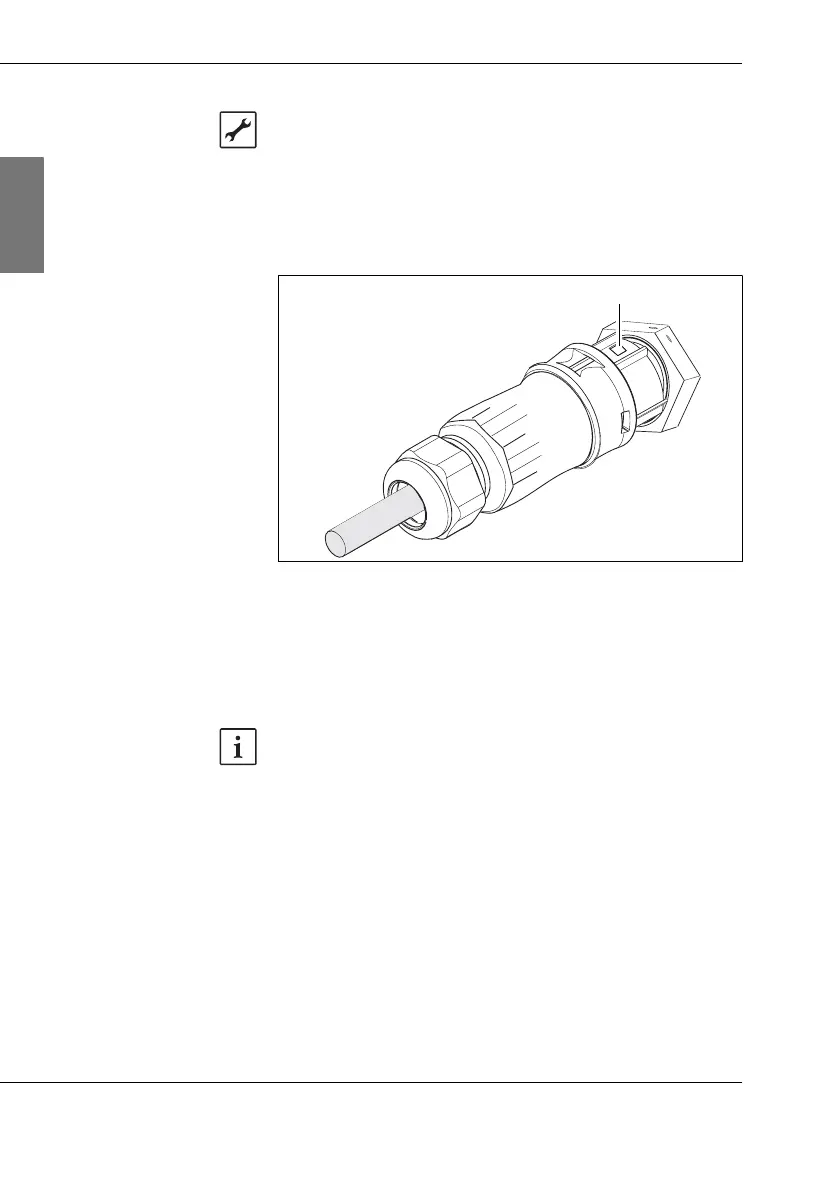

7.1: Loosening the power cable
4. To loosen the power cable:
| Insert a screwdriver in socket (1) on the connection.
| Remove the connection.
5. Seal all connections with sealing plugs.
Result Cables are loosened.
Loosen the cables
1. Unscrew the CAN cable connection pieces.
2. Pull out the connection cable.
(1)
Fit sealing plugs correctly and securely. Otherwise, the
connections will not be protected against humidity.
