WABCO OptiTire - Page 49

49
Installation

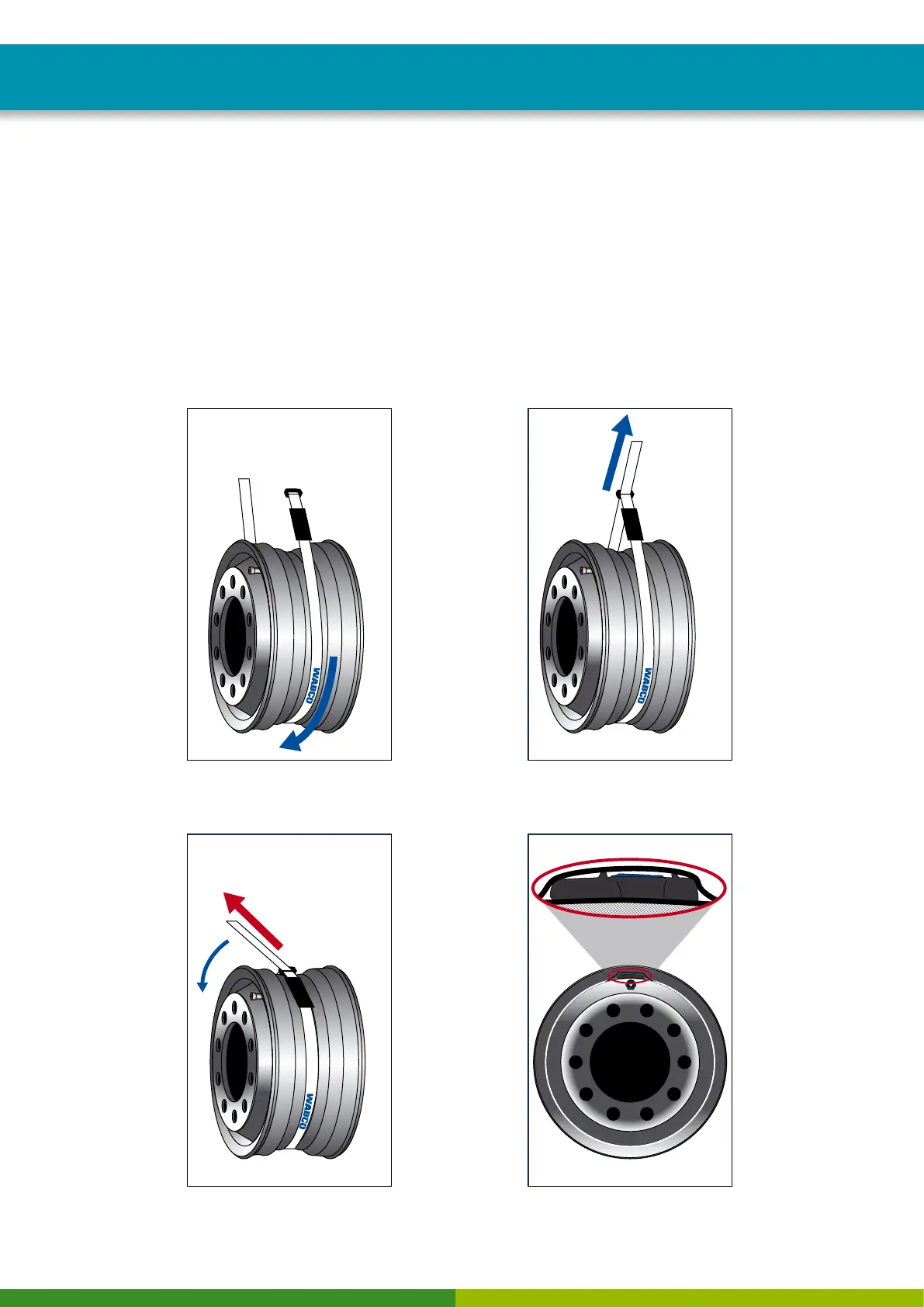

2. Guide the fastening strap through the centre of the drop centre and once around the rim (Figure 3).
3. Pass the Velcro through the ladder buckle (Figure 4).
4. Tighten the fastening strap with a tensile force of ~100 Nm and close the Velcro fastener (Figure 5).
Note the following:
 The sensor must lie at on the drop-centre with the concave underside (Figure 6).
 The Velcro fastener must be pressed rmly over its entire length.
 The two layers of the Velcro fastener must lie ush on top of each other over the entire length (the
Velcro fastener must not be pressed laterally offset).
Figure 3 Figure 4
 
Figure 5 Figure 6

100 N
