Wacker Neuson CT 48 Repair Manual

Guide Handle CT Repair
wc_tx000551gb.fm 66
5.7 Replacing the Lower Handle

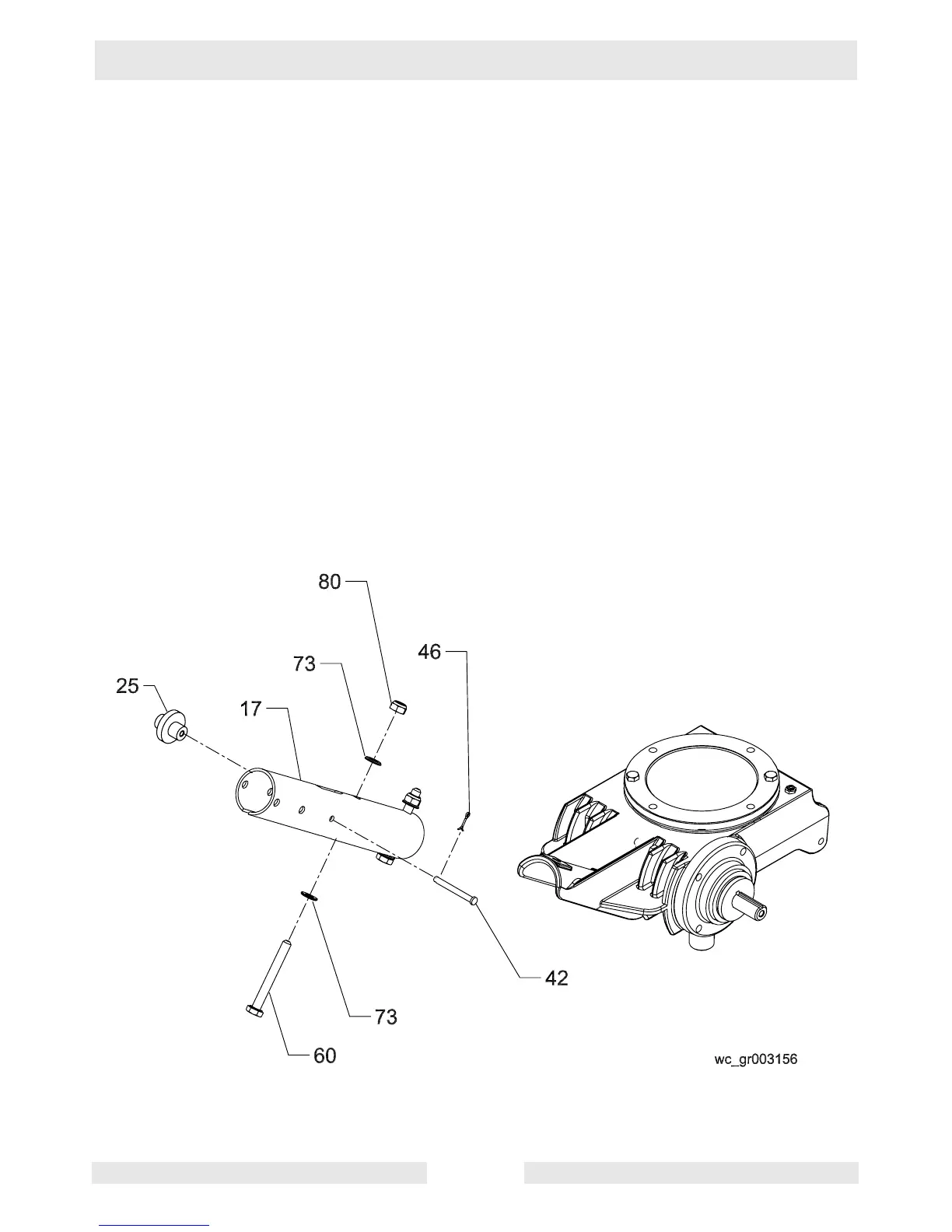

See Graphic: wc_gr003156
Disassembly:
5.7.1 Remove the upper handle. See section Replacing the Upper Handle.
5.7.2 Remove the two locknuts (80) and washers (73) from the screws (60).
5.7.3 Pull the lower handle (17) from the gearbox.
5.7.4 If replacing the pulley (25), pull the cotter pin (46) from the clevis pin
(42) and remove the pulley.
Assembly:
5.7.5 If removed, replace the pulley (25) and reattach it with the clevis pin
(42) and cotter pin (46).
5.7.6 Position the lower handle (17) into the gearbox and secure it with the
screws (60), washers (73), and locknuts (80).
5.7.7 Install the upper handle. See section Replacing the Upper Handle.
