Clutch
CT Repair
wc_tx000552gb.fm
70
6.2

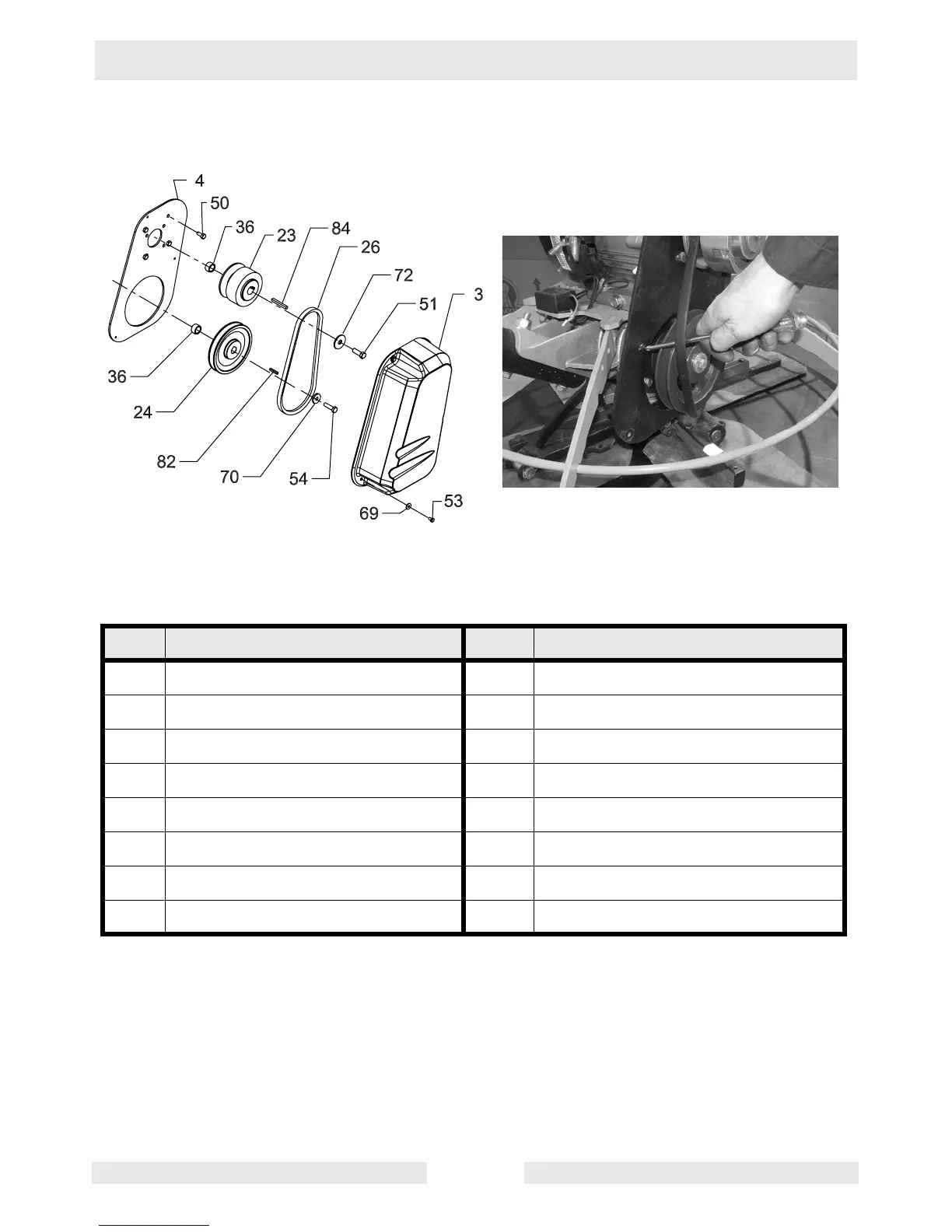

Drive Belt—Standard Clutch
Ref.
Description
Ref.
Description
3
Beltguard
53
Hex head screw
4
Beltguard plate
54
Hex head screw
23
Clutch assembly
69
Fender washer
24
Pulley
70
Flat steel washer
26
V-belt
72
Washer
36
Spacer
82
Key
50
Screw
84
Key (square)
51
Hex head screw
wc_gr003153
69
71
Table of Contents
Default Chapter
5
Table of Contents
5
1 Safety Information
8
Laws Pertaining to Spark Arrestors
8
Operating Safety
9
Operator Safety While Using Internal Combustion Engines
10
Service Safety
11
Label Locations
12
Safety and Information Labels
13
2 Technical Data
18
Dimensions and Weight
18
Engine
20
Trowel
24
Sound and Vibration Data
25
3 Operation
26
Application
26
New Machine Set-Up
26
Recommended Fuel
26
Installing Blades
27
Installing and Adjusting Handles
28
Controls
30
Stop Button
31
Before Starting
31
To Start - Honda
32
To Stop - Honda
33
To Start - Wacker
34
To Stop - Wacker
35
Engine Control Module
36
Operation
36
Braking System
38
Pitch Adjustment
39
4 Maintenance
40
Periodic Maintenance Schedule - Honda
40
Periodic Maintenance Schedule - Wacker
41
Engine Oil - Honda
42
Engine Oil - Wacker
43
Air Cleaner - Honda
44
Air Cleaner - Wacker
45
Spark Plug
46
Cleaning Sediment Cup - Honda
47
Cleaning Fuel Strainer - Wacker
47
Adjusting Idle Speed - Honda
48
Carburetor Adjustment - Honda
49
Belt Replacement
50
Trowel Lubrication
51
Optional Weights
51
Lifting
52
Storage
54
Troubleshooting
55
5 Guide Handle
56
Replacing the Throttle Cable
56
Adjusting the Throttle Lever
58
Upper Handle/Twist Pitch Control-Exploded View
60
Upper Handle/Twist Pitch Control-Components
61
Replacing the Upper Handle
62
Replacing the Twist Pitch Control Cable
64
Replacing the Lower Handle
66
Replacing the Stop Switch
67
6 Clutch
69
Replacing the Drive Belt
69
Drive Belt-Standard Clutch
70
Drive Belt-Variable Speed Clutch
71
Replacing the Standard Clutch
72
Standard Clutch-Exploded View
73
Standard Clutch Overhaul
74
Replacing the Variable Speed Clutch
76
7 Spider
78
Spider Assembly-Exploded View
78
Spider Assembly-Components
79
Replacing the Blades
80
Replacing the Arms
82
Balancing the Blade Pitch
84
Removing the Spider
86
Installing the Spider
88
Rebuilding the Lift Ring Assembly
90
8 Drivetrain
92
Drivetrain-Exploded View
92
Drivetrain-Components
93
Engine Removal
94
Engine Installation
96
Engine Wiring
98
Engine Wiring Components
99
Wiring Diagrams
100
Engine Wiring Components
101
Replacing the Gearbox
102
Gearbox-Exploded View
104
Gearbox-Components
105
Gearbox Disassembly
106
Gearbox Assembly
110
