CT Repair
Clutch
wc_tx000552gb.fm
71
6.3

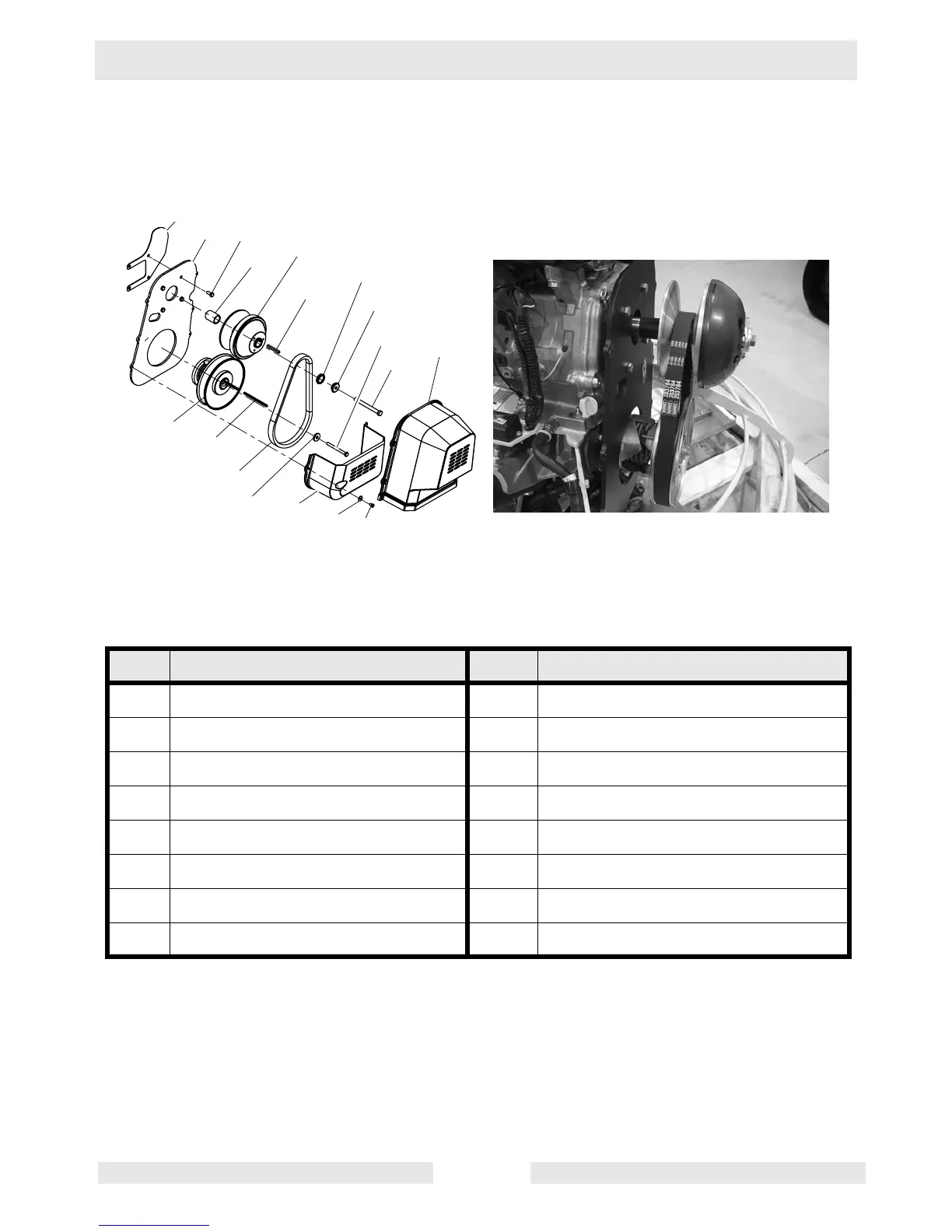

Drive Belt—Variable Speed Clutch
Ref.
Description
Ref.
Description
3
Upper belt guard
58
Hex head screw
4
Beltguard plate
69
Fender washer
23
Clutch
70
Washer
24
Clutch pulley
71
Washer
26
Belt
84
Key
36
Spacer
127
Lower beltguard
51
Screw
132
Key
53
Hex head Screw
-
---
81
4
50
23
84
74
51
3
36
71
24
132
26
70
58
69
53
127
wc_gr003382
70
72
Table of Contents
Default Chapter
5
Table of Contents
5
1 Safety Information
8
Laws Pertaining to Spark Arrestors
8
Operating Safety
9
Operator Safety While Using Internal Combustion Engines
10
Service Safety
11
Label Locations
12
Safety and Information Labels
13
2 Technical Data
18
Dimensions and Weight
18
Engine
20
Trowel
24
Sound and Vibration Data
25
3 Operation
26
Application
26
New Machine Set-Up
26
Recommended Fuel
26
Installing Blades
27
Installing and Adjusting Handles
28
Controls
30
Stop Button
31
Before Starting
31
To Start - Honda
32
To Stop - Honda
33
To Start - Wacker
34
To Stop - Wacker
35
Engine Control Module
36
Operation
36
Braking System
38
Pitch Adjustment
39
4 Maintenance
40
Periodic Maintenance Schedule - Honda
40
Periodic Maintenance Schedule - Wacker
41
Engine Oil - Honda
42
Engine Oil - Wacker
43
Air Cleaner - Honda
44
Air Cleaner - Wacker
45
Spark Plug
46
Cleaning Sediment Cup - Honda
47
Cleaning Fuel Strainer - Wacker
47
Adjusting Idle Speed - Honda
48
Carburetor Adjustment - Honda
49
Belt Replacement
50
Trowel Lubrication
51
Optional Weights
51
Lifting
52
Storage
54
Troubleshooting
55
5 Guide Handle
56
Replacing the Throttle Cable
56
Adjusting the Throttle Lever
58
Upper Handle/Twist Pitch Control-Exploded View
60
Upper Handle/Twist Pitch Control-Components
61
Replacing the Upper Handle
62
Replacing the Twist Pitch Control Cable
64
Replacing the Lower Handle
66
Replacing the Stop Switch
67
6 Clutch
69
Replacing the Drive Belt
69
Drive Belt-Standard Clutch
70
Drive Belt-Variable Speed Clutch
71
Replacing the Standard Clutch
72
Standard Clutch-Exploded View
73
Standard Clutch Overhaul
74
Replacing the Variable Speed Clutch
76
7 Spider
78
Spider Assembly-Exploded View
78
Spider Assembly-Components
79
Replacing the Blades
80
Replacing the Arms
82
Balancing the Blade Pitch
84
Removing the Spider
86
Installing the Spider
88
Rebuilding the Lift Ring Assembly
90
8 Drivetrain
92
Drivetrain-Exploded View
92
Drivetrain-Components
93
Engine Removal
94
Engine Installation
96
Engine Wiring
98
Engine Wiring Components
99
Wiring Diagrams
100
Engine Wiring Components
101
Replacing the Gearbox
102
Gearbox-Exploded View
104
Gearbox-Components
105
Gearbox Disassembly
106
Gearbox Assembly
110
