BA 1404 en – Edition 2.7 * 1404b330.fm 3-51
Operation
Load the machine with the eye hooks as follows:
• Fit the standard bucket and lock it safely
• Empty the standard bucket
• Tilt in the standard bucket and lower it to transport position
• Fully raise the boom
• Pull the stick toward the machine
• Stop the engine
• Raise the control lever base
• Remove the ignition key and carry it with you
• Lock the upper carriage
• Do not allow anyone to stay in the cab, and close the doors and the engine cover
• Mount extension A to the lifting eyes B
(until serial numbers AF05320 - M16 - wrench gap extension 12 mm)
(starting from serial numbers AG02423 - M20 - wrench gap extension 14 mm))
• Mount the lifting eyes to the cabin and tighten (as depicted in Fig. 119 )
• Use suitable lifting gear, chains, etc.
• Install the lifting gear on both eye hooks
• Ensure that the lifting gear has the required length L1
• Slowly raise the machine
A
B

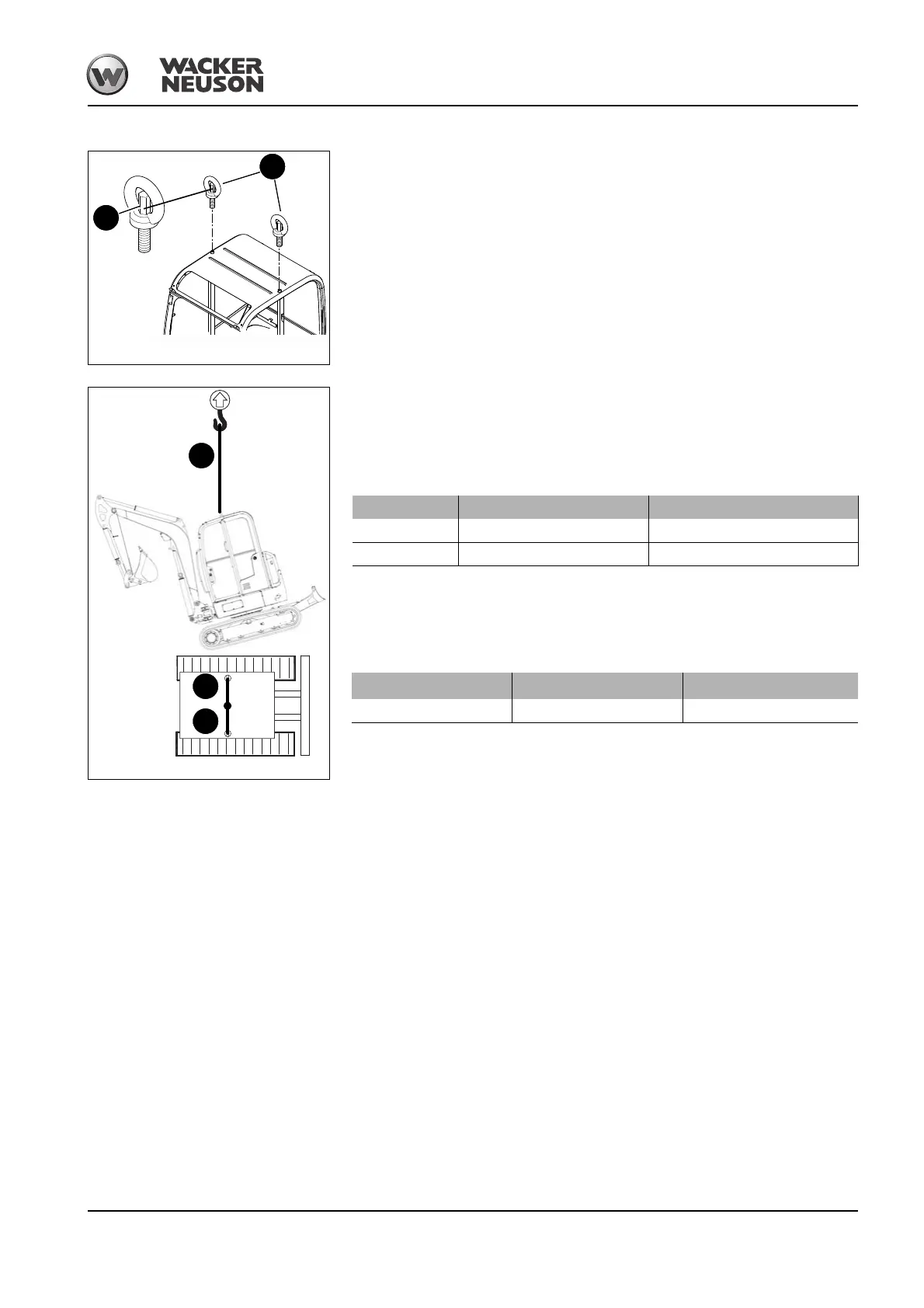

Abb. 119: Installing the eye hooks
Abb. 120: Craning operation with eye hooks
L1
L1
L1
Thread Serial number Torque Nm (ft.lbs)
M16 Until AF0530 70 (52)
M20 Starting from AG02423 135 (100)
Excavator Length
Dimension
1404 L1 1200 mm (47 in)
