WAGNER Cobra 40-10 Original Operating Manual

60
VERSION 01/2018
ORDER NUMBER DOC 2340851

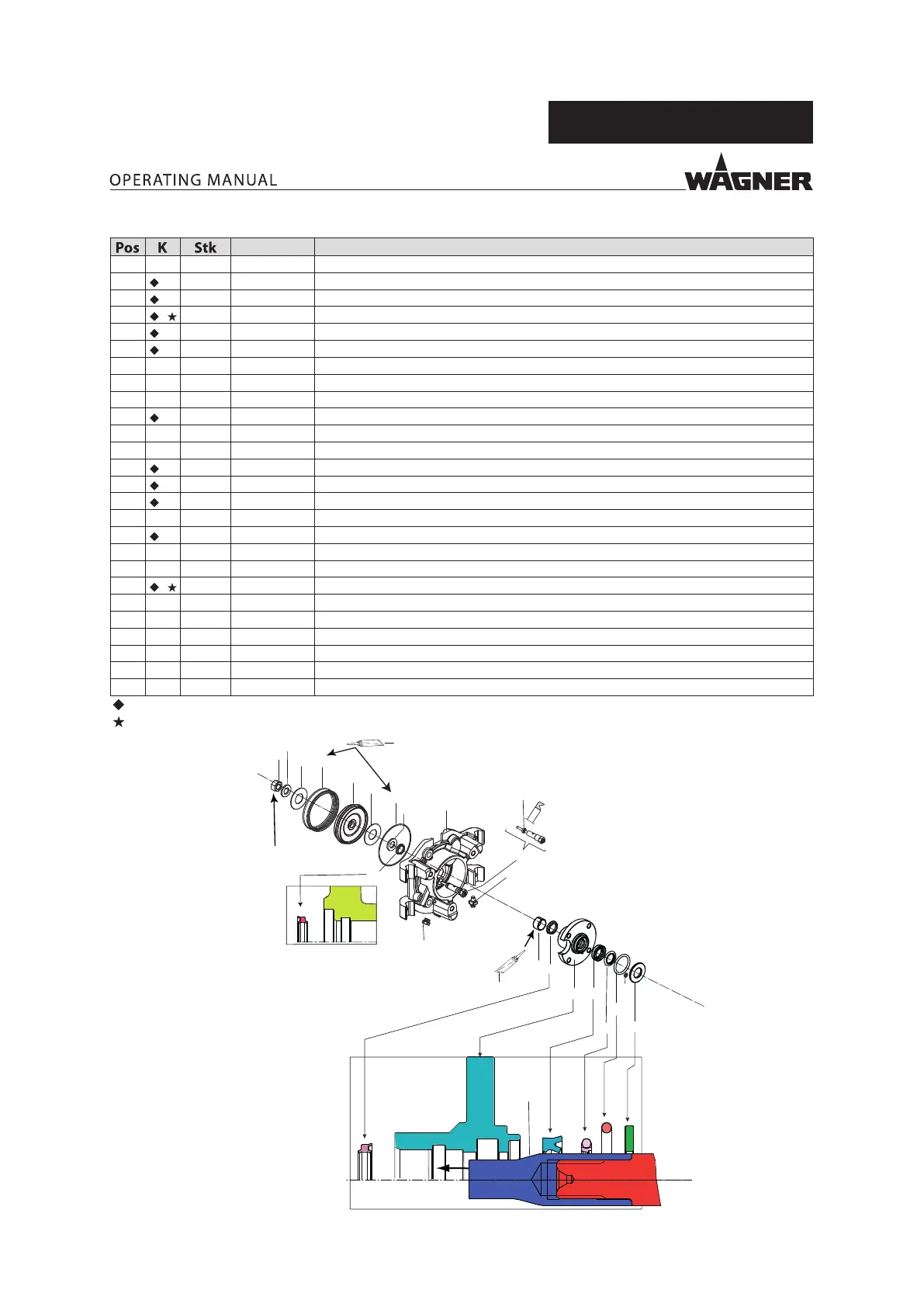

Cobra 40-10 / 40-25
Order No. Designation
69 2 322415 Insert
70 1 9974217 Rod seal
78 4 341331 Sealing ring
89 2 9971486 O-ring (solvent-resistant)
90 2 341316 Scraper
91 1 9974112 Sealing ring for G3/8 thread
92 3 9920106 Washer
93 2 341325 Valve guide
94 2 341328 Clasp
95 2 9971470 O-ring
96 2 341326 Pressure spring
97 2 253405 Spring support ring
98 2 9941501 Ball 11 HM
99 2 341327 Outlet valve seat
100 2 341347 Sealing ring
101 1 9994237 Pressure spring
102 2 322408 Oil valve pressure ring
103 1 9992590 Loctite 222 50 ml; 50 cc
104 1 9992831 Loctite 542 50 ml; 50 cc
105 1 9971395 O-ring, 10x1.25
106 1 2312288 Service set for Cobra 40-10 uid section
107 1 322917 Service set for Cobra 40-10 piston (incl. items 25, 31, 32, 33, 59, and 108)
108 1 322930 Piston rod assembly pin
110 1 9992616 Molykote DX grease
111 1 9998808 Mobilux EP2 grease
112 1 9992528 Loctite 270 50 ml; 50 cc
= Wearing part.
= Included in service set.
51
53
54
55
53
57
59
60
61
62
70
63
108
7
7
B_04252
29
59
30
31
32
33
34
35
111
111
40 Nm; 29.5 lbft
Notes:
The piston rod (25) may only be
mounted with the screwed-on
assembly pin (108).
Grease all o-rings and seals lightly
with grease (111) before mounting
them.
