WAGNER GM 5000EA - Page 68

68
GM 5000EA
B_04791
SW2
1Nm
X
6
7
3
B_04372
0.5 Nm
SW6
0.4 - 0.5 Nm
SW5
2
1
4
5
8
9
10
8
7
11
2
2
9
2
2
OPERATING MANUAL
EDITION 04/2016 ORDER NUMBER DOC2344499
Wear gloves!
The outside thread of the packing (9) must be free
of lacquer.

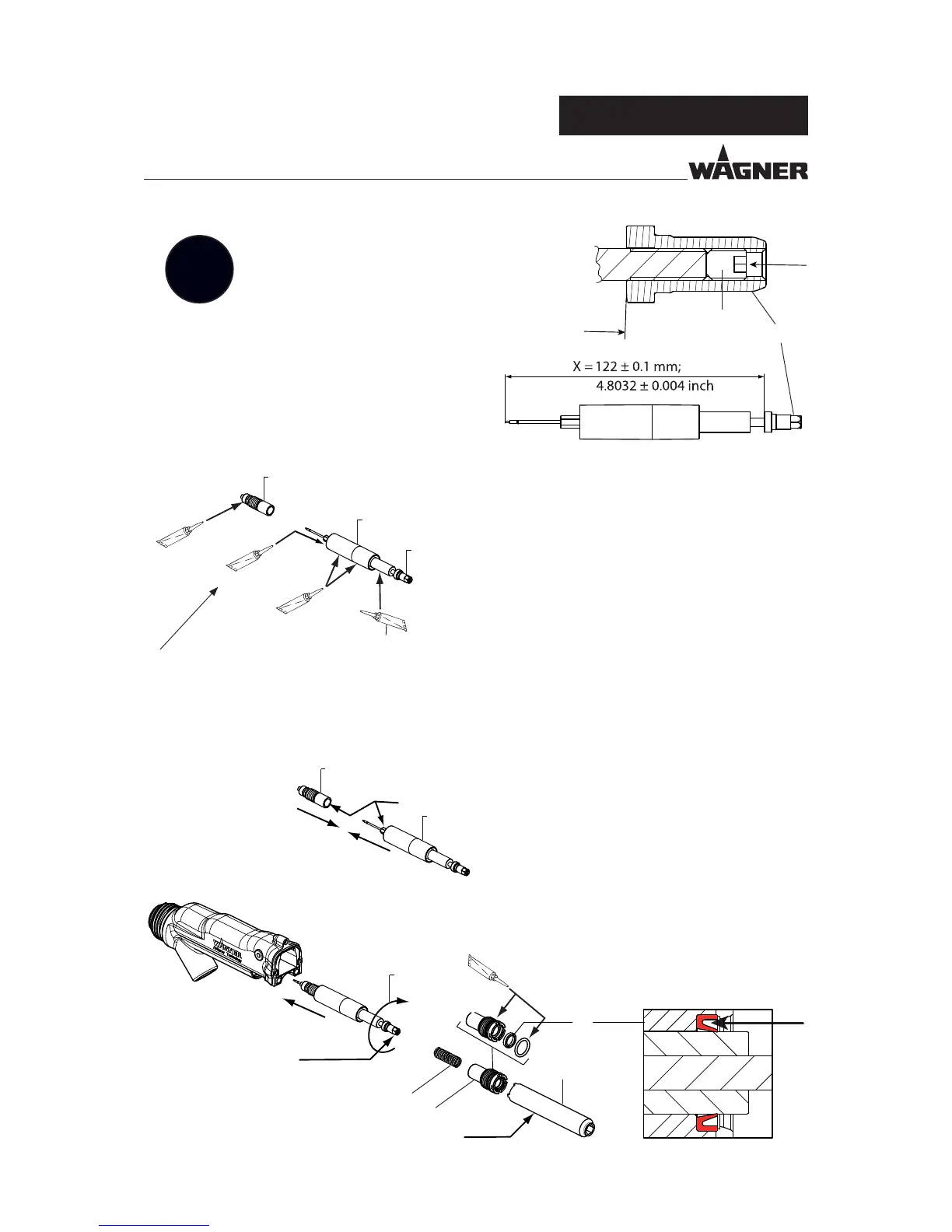

Valve rod unit (8) and packing (9):
- grease,
- slide together,
- screw together (10).
Grease clamping screw (1) and mount using
assembly tool (5).
Insert spring (4).
Coat the hollow
section with a brush.
Note: avoid the pin
and hexagon.
(sparingly)
Valve rod unit
Set length adjusting measure
X with withdrawal nut (7) and
then fasten the threaded pin (6)
using an Allen wrench SW2.
Only as required (if the rod seal was
removed): Press in rod seal (11). In the
process, press only on the lowest area
of the rod seal.
