70
GM 5000EA
8
B_03256
Torx® 25
SW3
0.8 Nm
SW12
SW12
2
B_04375
7
5
6
R1
R3
R2
9
OPERATING MANUAL
EDITION 04/2016 ORDER NUMBER DOC2344499

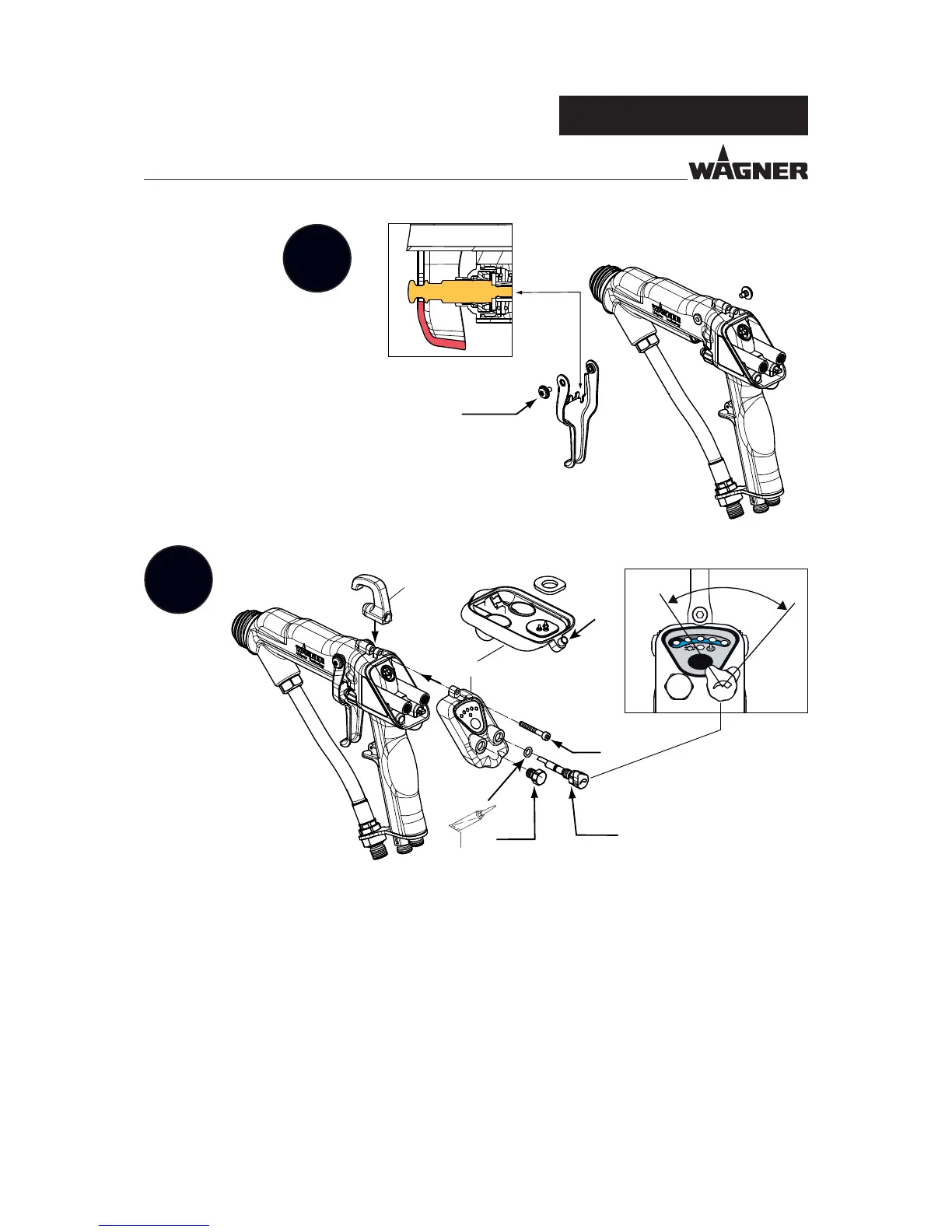

Push the trigger upward into the
air valve piston. The recess in the
trigger must engage correctly in the
indentation of the piston.
Ensure the correct
insertion position.
1. Press metal sleeve (6) back in cover (5) (e.g., press on table). In the process, only exert
counter pressure on the sleeve bracket and not on the entire cover.
2. Position cover straight and level, and carefully press in. Use only minimal force, gently
rocking from side to side if necessary.
3. Ensure that the cover is ush mounted on all sides.
4. Press back on metal sleeve for a ush t (e.g., press on table).
5. Position bracket (7).
6. Mount screw, plug, and air regulation.
(sparingly)
Cover (5)
The cover must be
handled carefully and not
be twisted or distorted in
any way.
