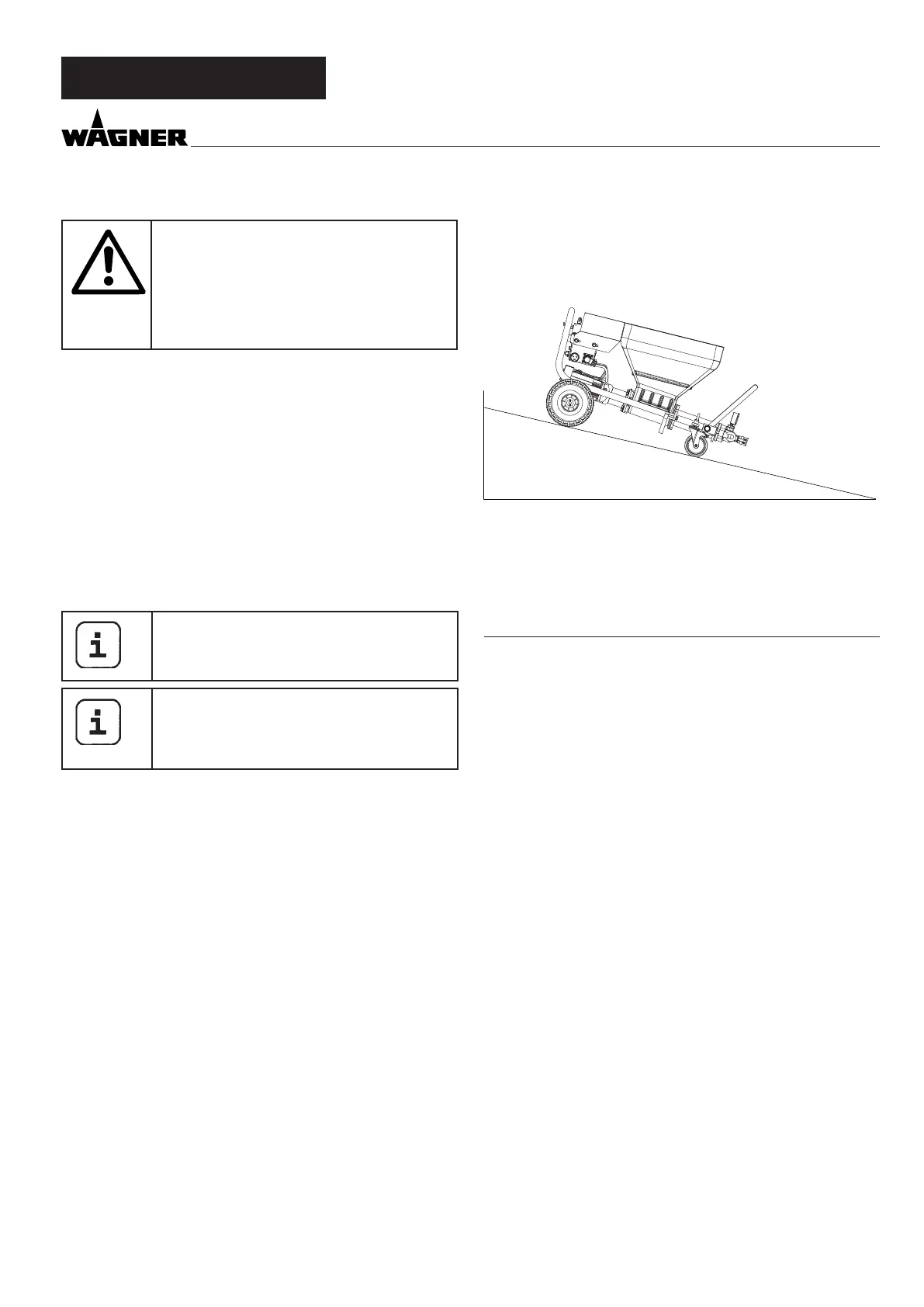

Setup on an uneven surface
The mortar spraying machine must be installed as shown in
the diagram below to prevent it slipping. Block front wheels
with brakes.
SAFETY REGULATIONS
Mortar hose
Danger of injury through leaking high-
pressure hose. Wear and tear and links as
well as usage that is not appropriate to the
purpose of the device can cause leakages
to form in the mortar hose. Liquid can be
injected into the skin through a leakage.
Mortar hoses must be checked thoroughly before they are
used.
Replace any damaged mortar hose immediately.
Never repair defective mortar hoses yourself!
Avoid sharp bends and folds: the smallest bending radius is
about 80 cm.
Do not drive over the mortar hose. Protect against sharp ob-
jects and edges.
Never pull on the mortar hose to move the device.
Do not twist the mortar hose.
Lay the mortar hose in such a way as to ensure that it cannot
be tripped over.
Only use WAGNER original-mortar hoses in
order to ensure functionality, safety and du-
rability.
The risk of damage rises with the age of the
mortar hose.
Wagner recommends replacing mortar hoses
after 6 years.

2 INTRODUCTION TO WORKING WITH
THE MORTAR SPRAYING MACHINE PC
1025PRO
The suction pump PC 1025Pro is conceived for using and pro-
cessing ready mixed mineral coating materials.
PC 1025Pro oers a wide range of applications, including resi-
dential building, commercial building, new rural construction,
re proong projects, anti-corrosion projects, water proong
projects, grouting projects, reinforcement project etc.
The machine is not designed for use as a cleaning device.
2.1 FUNCTION OF THE MORTAR SPRAYING MACHINE
PC 1025PRO
The coating material is supplied by means of the container.
The spiral conveyor feeds the coating material to the eccen-
tric screw pump. The suction eect causes the coating materi-
al to enter the eccentric screw pump. This pump builds up the
pressure required for transportation through the mortar hose.
The compressed air required for atomisation is supplied at the
spray lance. The mortar spraying machine can be switched on
and o using the electric control. This can also be used to con-
trol the delivery volume.
A soft even spray pattern can be achieved by means of the
smoothly regulated convey capacity of the coating material.
