WAGNER PC 1025 PRO - Spare Parts List for Pc 1025 Pro

45
PC 1025 PRO
EN

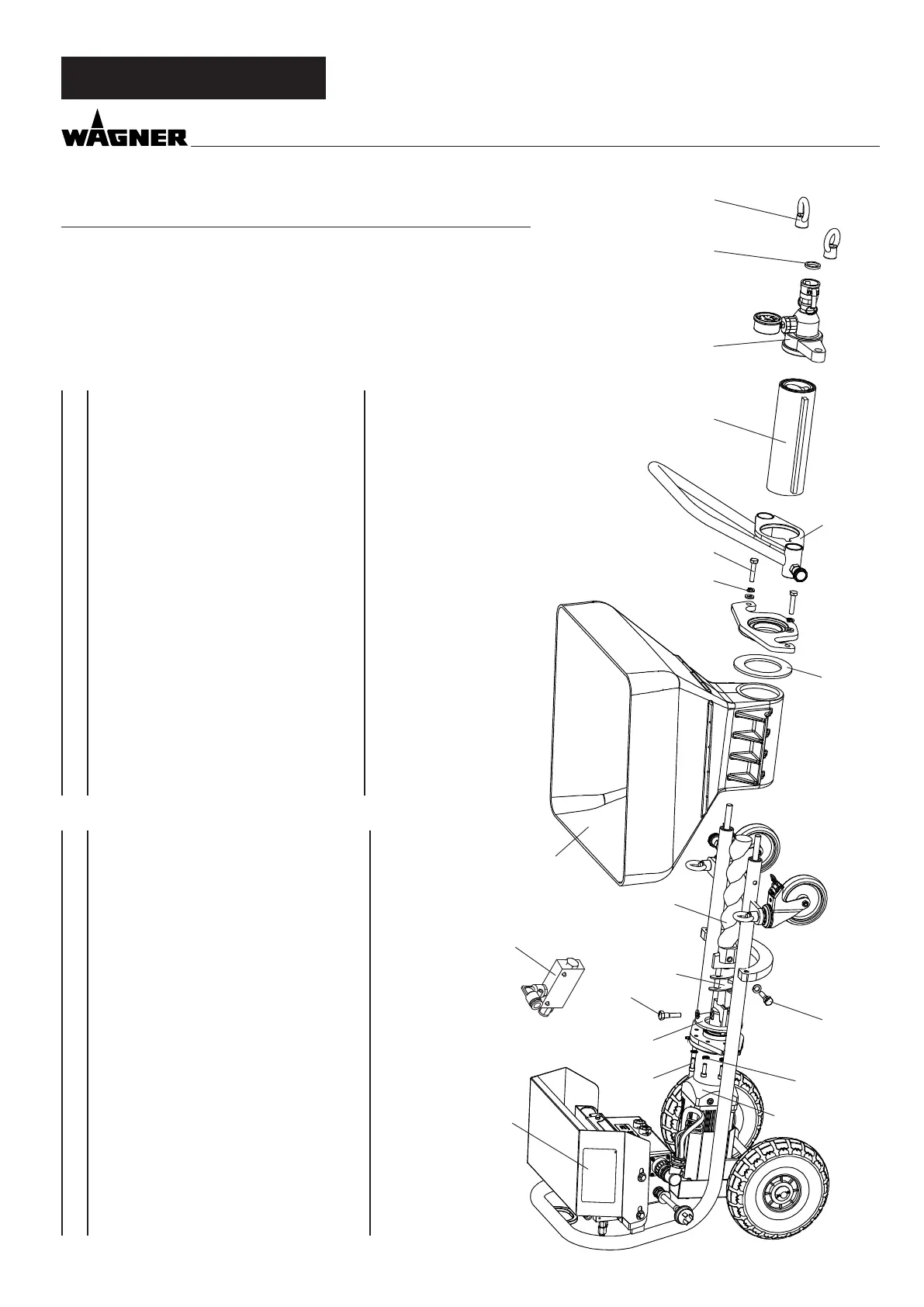

11 SPARE PARTS LIST FOR PC 1025PRO
SPARE PARTS LIST FOR PC 1025PRO
1
23
4
5
6
7
8
9
10
11
12
13
14
15
18
11
16
17
ITEM ORDER NO. DESIGNATION
1
3142039
Ring nut
2
2416820
Sealing, plaster coupling
3
2439516
Outlet unit cpl.
4
348315
Stator
2416627
Rotor / Stator Kit (pos. 4,10,11)
5
2416813
Anti-twist lock for stator
6
9900247
Hexagon head screw
7
9921507
Spring washer
8
2416633
Rubber seal, ange
9
2436478 Receptacle
ITEM ORDER NO. DESIGNATION
10
348316
Rotor
11
2416814
Screw
12
2416628
Feeder shaft
13 2416632 Rubber seal, motor 14
9921501
Spring washer
15
9900313
Cylinder head screw
16
2416629
Motor / Gear Unit
17
2416634
Pneumatic Controller, Set
18
2416408
Label PC 1025Pro
