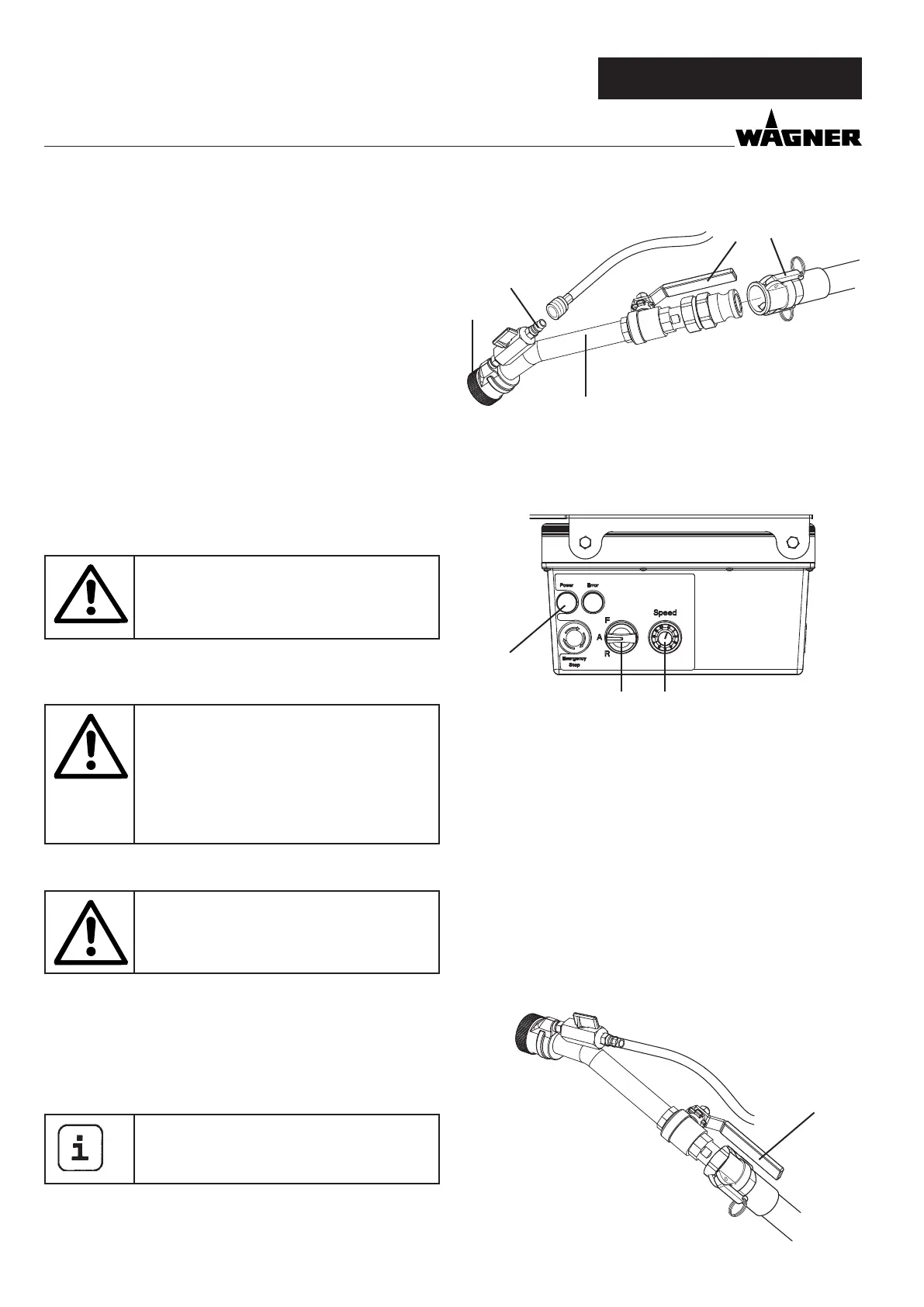

6.5 CONNECTING THE SPRAY LANCE FIG. 8
• Select a spray tip suitable for the material:
The tip size should amount to at least three times the
granular size, e.g.
granular size articial resin plasters –> 3 mm
Tip size –> 10 mm
• Mount the texture tip (1) in the spray lance with the cone
pointing towards the spray head.
• Connect the spray lance (2) to the material hose and secure
by applying the levers (3).
• Close the material tap (4) (material tap at 90° to spray lance).
• Connect atomization air connection (5) to the air hose of the
mortar hose.
• Set selector switch to “A”.
6.6 PREPARING THE MORTAR SPRAYING MACHINE
FIG. 9
Recommended sliding means for the mortar hose
Water is not sucient as a sliding means.
Danger of clogging!
Use cellulose paste (e.g. Metylan wallpaper
paste, art no. 2312136)
• Fill 2–3 l cellulose paste into the container.
• Connect the mortar spraying machine to the mains supply.
The operation light (1) shows operational readiness.
Risk of injury from escaping material.
Before switching on, always check that the
air ow regulator and the material tap on
the spray lance are closed (material tap at
90° to spray lance).
Close air ow regulator and material tap
whenever stopping work.
• Set selector switch (2) to “F”.
• Set delivery volume controller (3) to „3“.
Do not bend the mortar hose!
Protect it against damage, for exam-
ple against being driven over as well as
against sharp objects and edges.
• Hold spray lance over an empty bucket.
• Open material tap (Fig. 10, 1) on spray lance (material tap
points backwards), the mortar spraying machine is switched
on.
• If cellulose paste comes out of the tip, close the material tap
(g. 10, 1) (material tap at 90° to spray lance).
• Fill coating material into the receptacle.
With mineral coating materials only fill the re-
ceptacle to half full.
• Position the spray lance over the bucket again.
• Hold spray lance above container with cellulose paste.
• Open material tap (Fig. 10, 1) on spray lance.
