PEM-X1 CG
5 DESCRIPTION

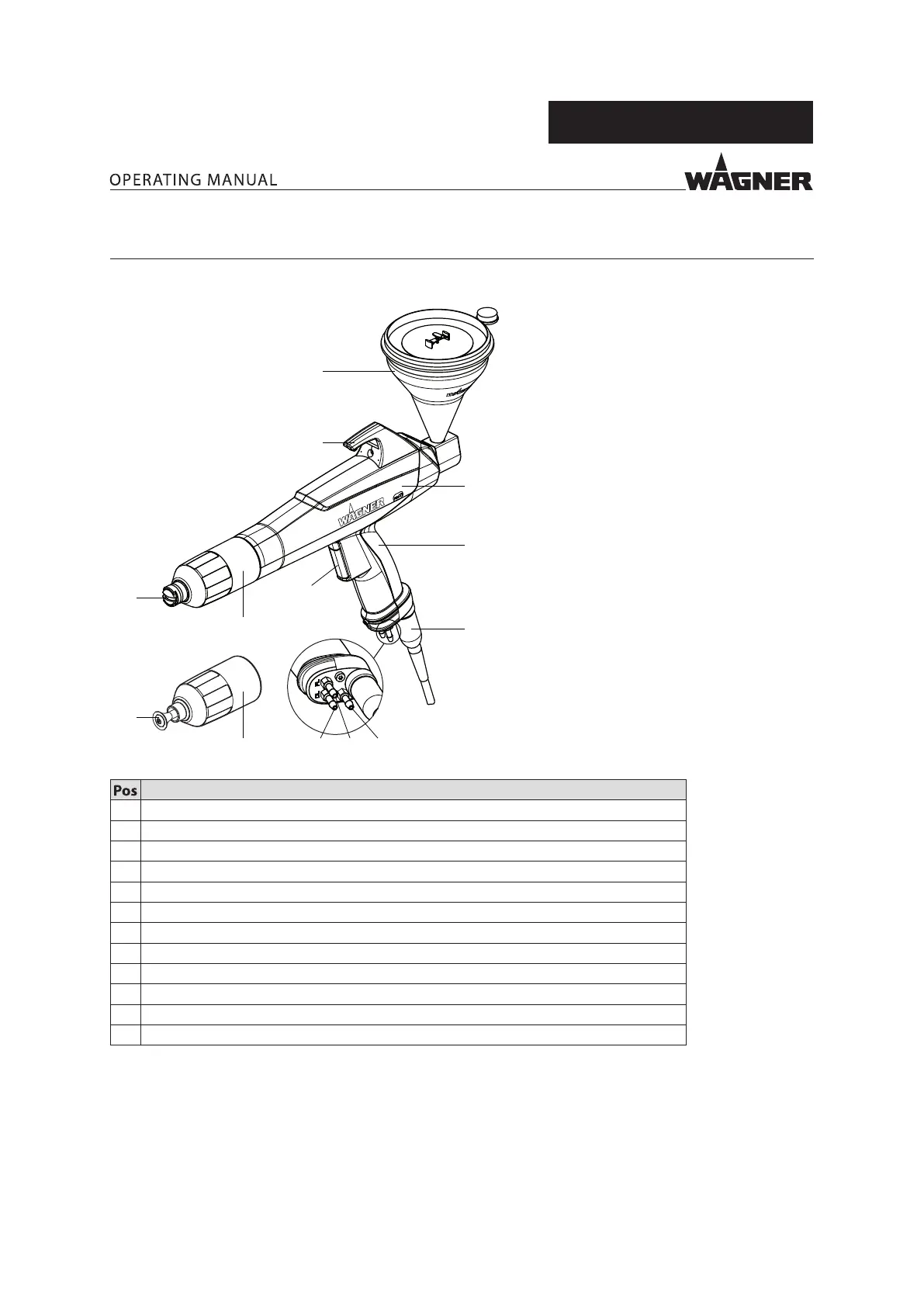

5.1 CONSTRUCTION OF THE CUP GUN
4
10
9
7
7
8
1
2
3
11
12
6 5
P_01731
Designation
1 Spray gun body
2 Handle
3 Electrical connection cable
4 Atomizer air connection
5 Feed air connection
6 Dosing air connection
7 Union nut
8 Trigger lever
9 Round jet nozzle
10 Flat jet nozzle
11 Suspension hook
12 Powder Cup
5.2 MODE OF OPERATION OF THE CUP GUN
High voltage is activated in the manual gun when the trigger is actuated!
The air supply of the feed, dosage and atomizing air are activated at the same time, for the
powder feed.
To secure the cup gun, the control unit must be switched o.
To prevent electrostatic ashover, the union nut for securing the nozzles is designed with
a labyrinth.
