WAGNER PEM-X1 CG - Dimensions and Accessories

21
VERSION 05/2019
ORDER NUMBER DOC2326960
PEM-X1 CG
Ambient conditions:
If low-melting powders are used, the ambient temperature may have to be lower than 30 °C;
86 °F.
Volume measures for volumes specied in Nm³ (standard cubic meters). One cubic meter
of a gas at 0 °C and 1.013 bar is called norm cubic meter.
Ambient conditions:
Operating temperature range (CE scope of application) 5–40 °C; 41–104 °F
Operating temperature range (FM scope of application) 5–45 °C; 41–113 °F
Relative humidity < 75%

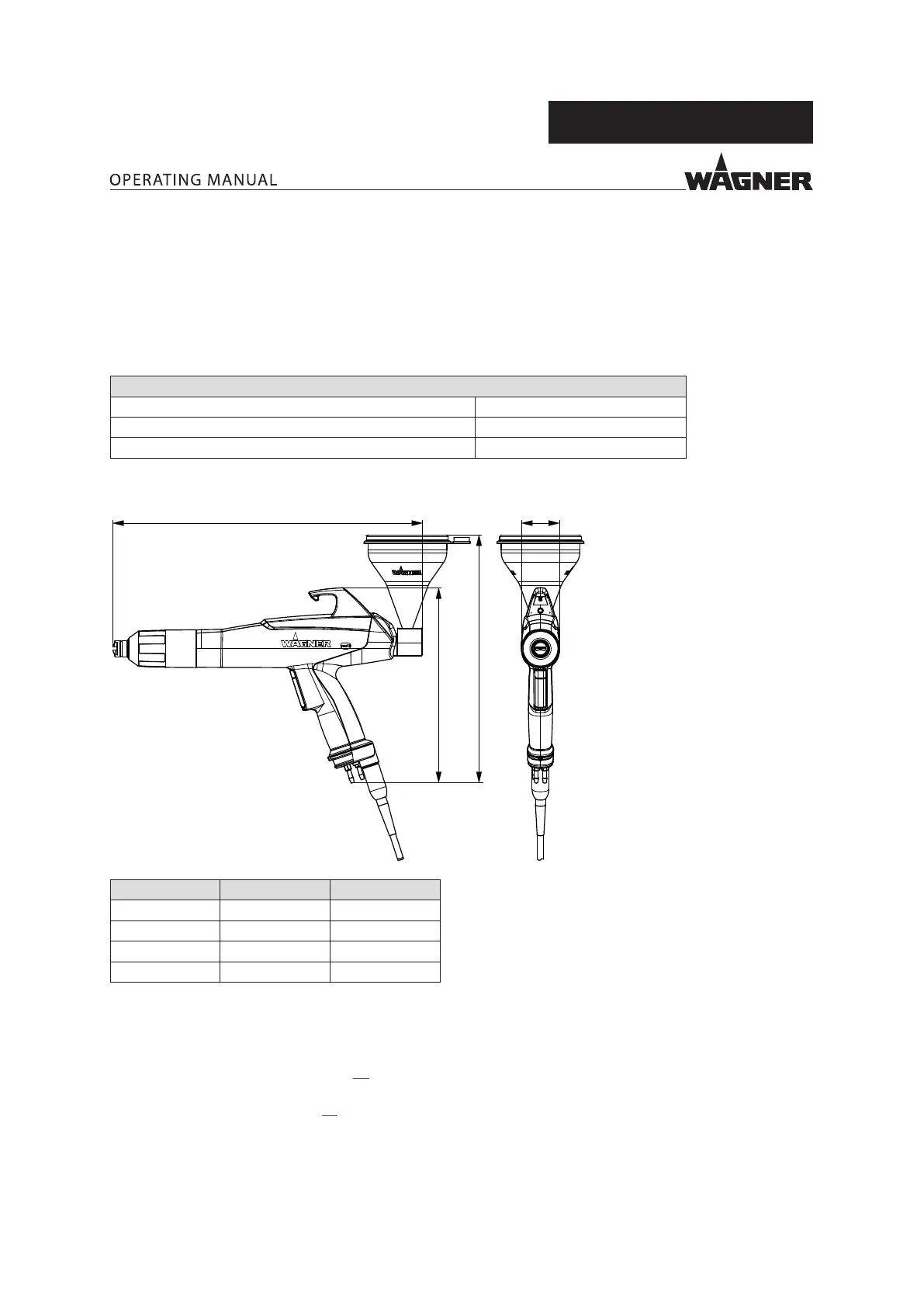

5.4.2 DIMENSIONS
A
P_01726
B
D
C
Measurement mm inch
A* 365 14.37
B 230 9.06
C 290 11.42
D 45 1.77
* with at jet nozzle/deector cone
5.5 ACCESSORIES
Only the accessories listed in Chapter 12 of this operating manual may be connected to
the PEM-X1 CG powder gun cup.
The accessories listed in Chapter 12 were included in the EC type examination and are
approved for use with the manual gun.
