WAGNER PEM-X1 CG - Fitting the Flat Jet Nozzle

40
VERSION 05/2019
ORDER NUMBER DOC2326960
PEM-X1 CG

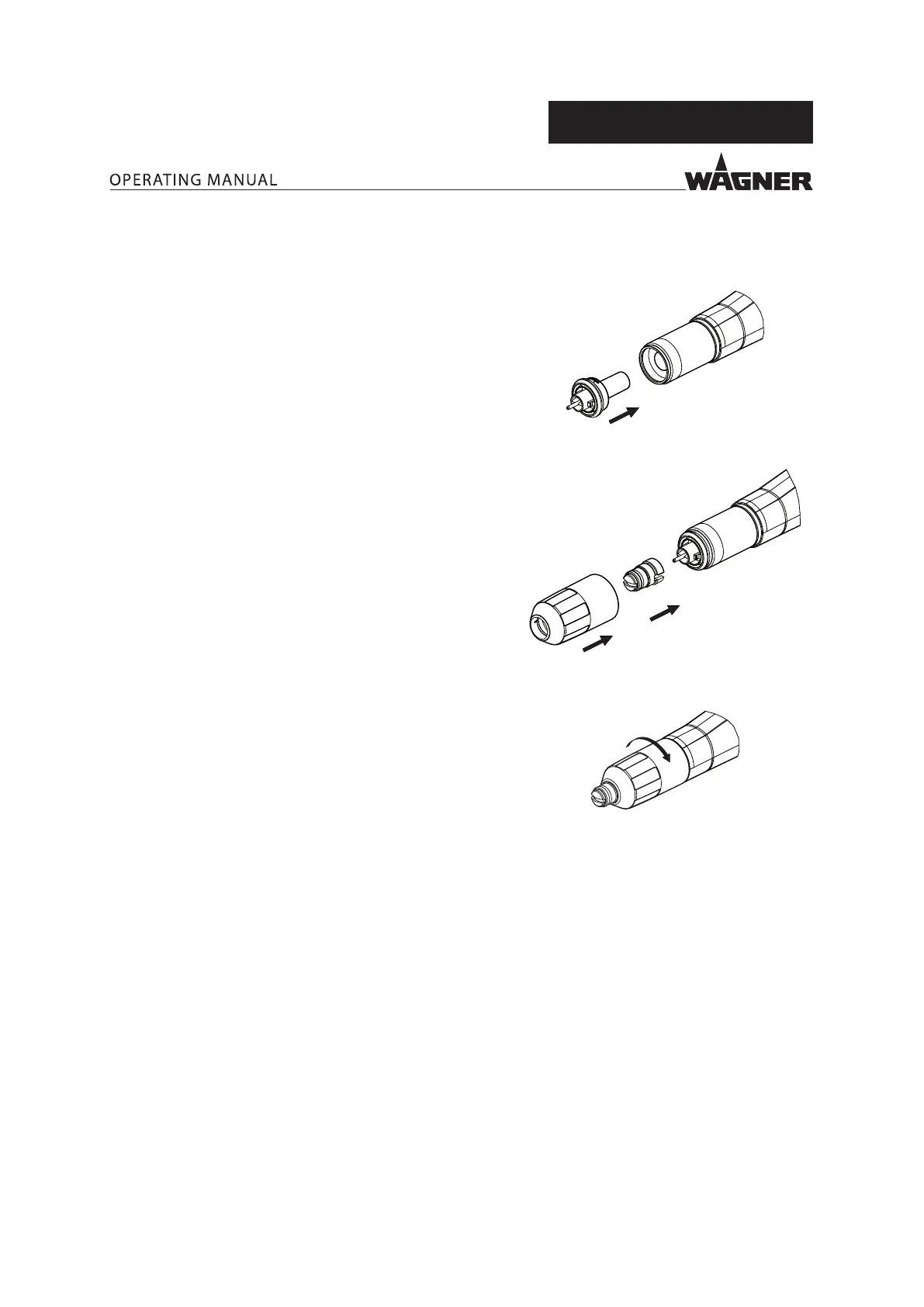

8.4.2 FITTING THE FLAT JET NOZZLE
Procedure:
1. Before inserting the electrode holder, the spring contact of
the gun body and contact surface of the electrode holder
should be checked.
2.
4.
3.
P_01674
The spring contact must be clean and smooth-running, the
gun body must also be clean and free of powder deposits.
2. Insert electrode holder into gun housing.
3. Attach at jet nozzle to electrode holder and attach union nut.
4. Screw union nut onto gun housing until at jet nozzle can
no longer be turned by hand.
