WAGNER PEM-X1 CG - Changing from Flat Jet Nozzle to Round Jet Nozzle

45
VERSION 05/2019
ORDER NUMBER DOC2326960
PEM-X1 CG
8.7 CHANGING FROM FLAT JET NOZZLE TO ROUND JET NOZZLE
The standard Corona cup gun is delivered with a at jet nozzle. The nozzle can be changed
easily, as described below.
The X1 R electrode holder is necessary to perform the change.
CAUTION
Electrode tip!
Risk of injury and damage to the device.
Take care when tting the X1 R electrode holder.

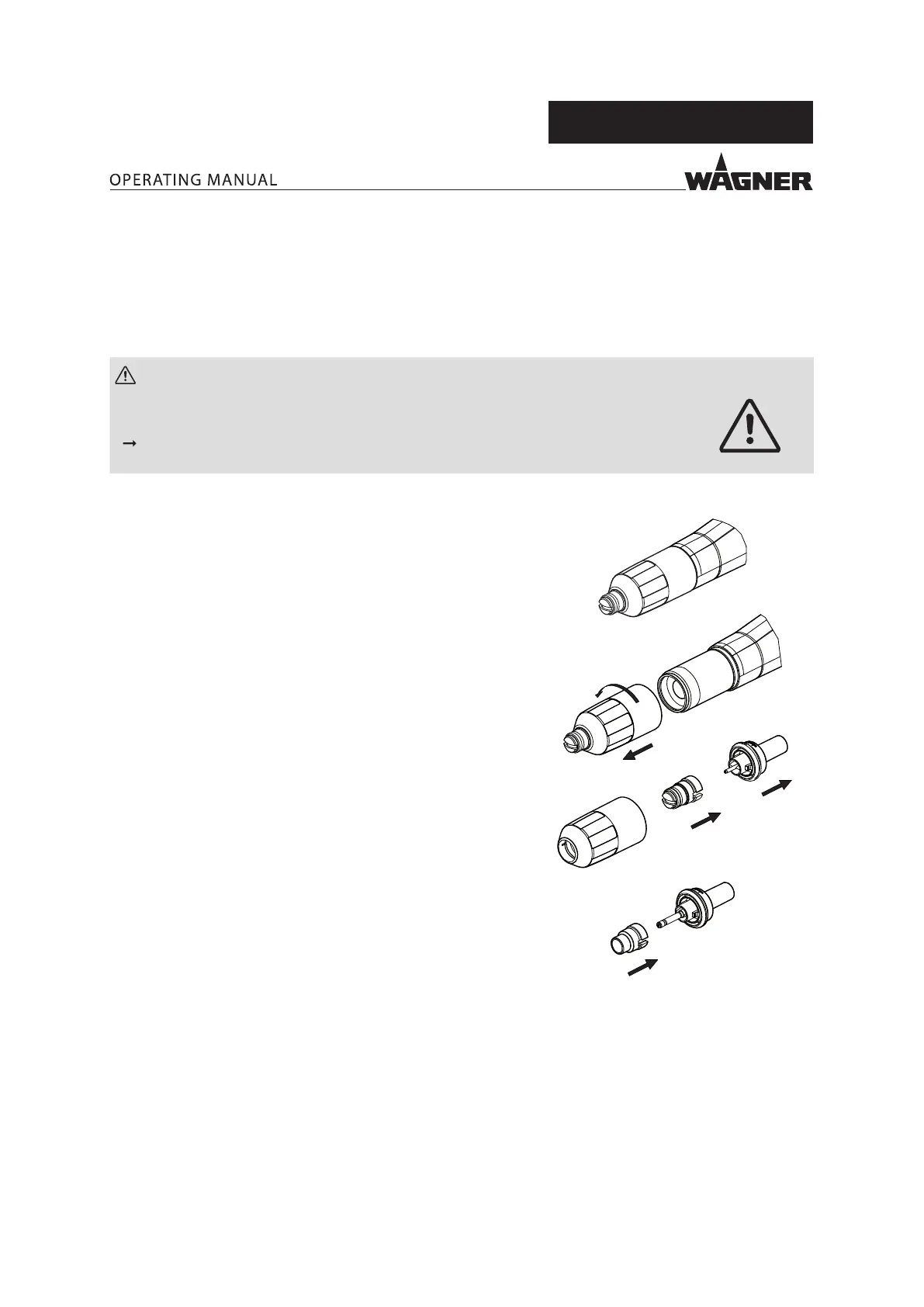

Procedure:
1. Unscrew union nut from gun housing.
1.
4.
2.
3.
P_01679
2. Take union nut with nozzle system o gun body.
The nozzle system remains inserted in the union nut.
Note:
If the nozzle system doesn't remain inserted in the union nut,
the nozzle system and union nut must be replaced.
3. The parts can be separated by gently pressing the sliding ring on
the at jet nozzle.
4. Attach deector cone sleeve onto X1 R electrode holder.
