WAGNER PEM-X1 CG - Grounding the Powder Coating System; Safety Checks

27
VERSION 05/2019
ORDER NUMBER DOC2326960
PEM-X1 CG
Prerequisites for perfect grounding and coating of a work piece are:
– clean suspension of the work piece to be coated,
– the grounding resistance of the work piece must not exceed 1 M
(resistance to ground measured at 500 V or 1000 V).
Sparks between conveyor, conveyor hooks (hangers) and work piece can occur
if electric contact points between conveyor, conveyor hooks (hangers) and work
piece are not suciently cleaned and therefore the work pieces are not suciently
grounded! These sparks can cause heavy radio frequency interference (EMC).

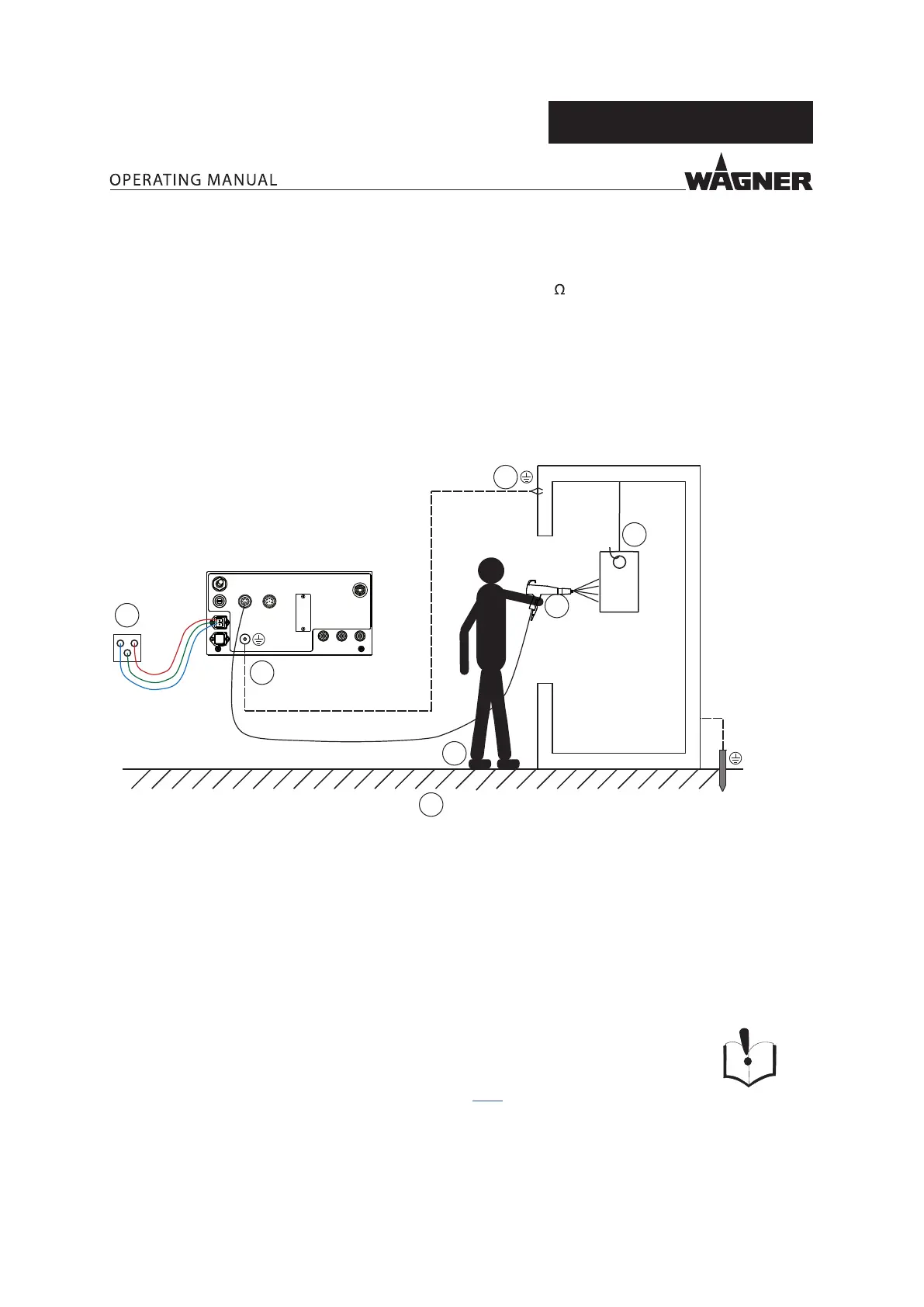

6.6.1 GROUNDING THE POWDER COATING SYSTEM
P_01120
1
2
3
6
7
5
4
1 Only use mains cables with grounding strand!
2 Connect the control unit's grounding cable with the signal ground!
3 Connect grounding cable to an uncoated metal part of the booth!
4 Remove all paint from hooks and other hanger parts!
5 Wear electrostatically conductive gloves!
6 Wear electrostatically conductive footwear!
7 The oor must be electrostatically conductive!
6.7 SAFETY CHECKS
A skilled person must check to ensure that the device is in a reliable state after it is assembled
and commissioned.
This includes:
– Carry out safety checks in accordance with Chapter 8.2.3.
