WAGNER PEM-X1 CG - Replacing Connecting Tube and Collector Nozzle

49
VERSION 05/2019
ORDER NUMBER DOC2326960
PEM-X1 CG

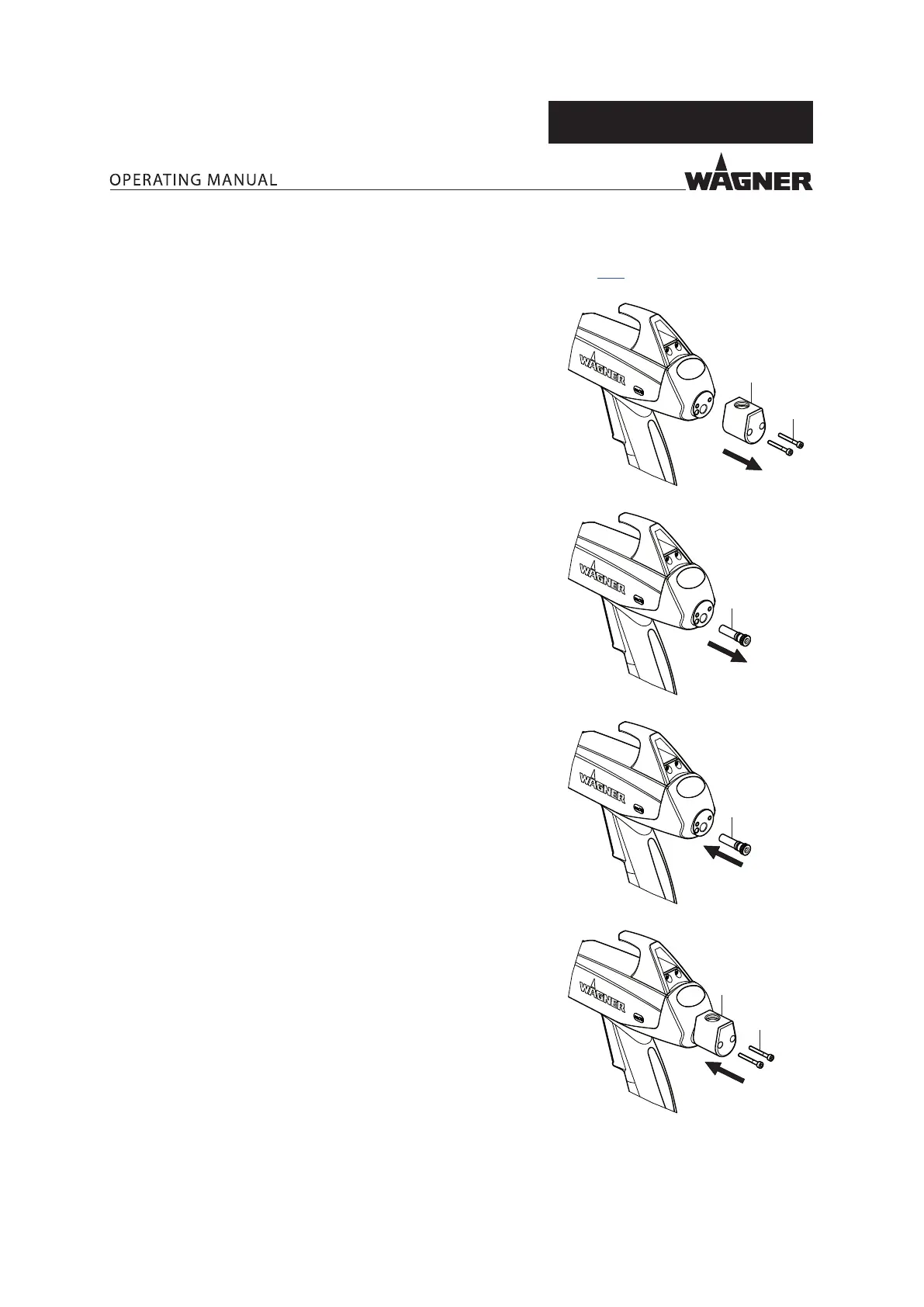

8.10 REPLACING THE COLLECTOR NOZZLE
The collector nozzle can be replaced if worn (for order number, see Chapter 13.6).
1. Remove the powder cup from the gun.
1.
2.
3.
4.
1
2
3
3
1
2
P_01735
Unscrew screws 1 and remove connecting part 2 from
gun body.
2. Pull collector nozzle 3 out of gun body.
3. Carefully insert new collector nozzle 3 in gun body.
4. Attach connecting part 2 to gun body and fasten with screws 1
(torque 40±10 Ncm).
Insert powder cup in connecting part.
