8.3 EXCHANGING THE MANUAL GUN
Before exchanging the manual gun, any power residue must be thoroughly removed.
The wearing parts in the manual gun, marked in the spare parts list with " ", must be regularly
checked and replaced as necessary.
6
4 5
2
1

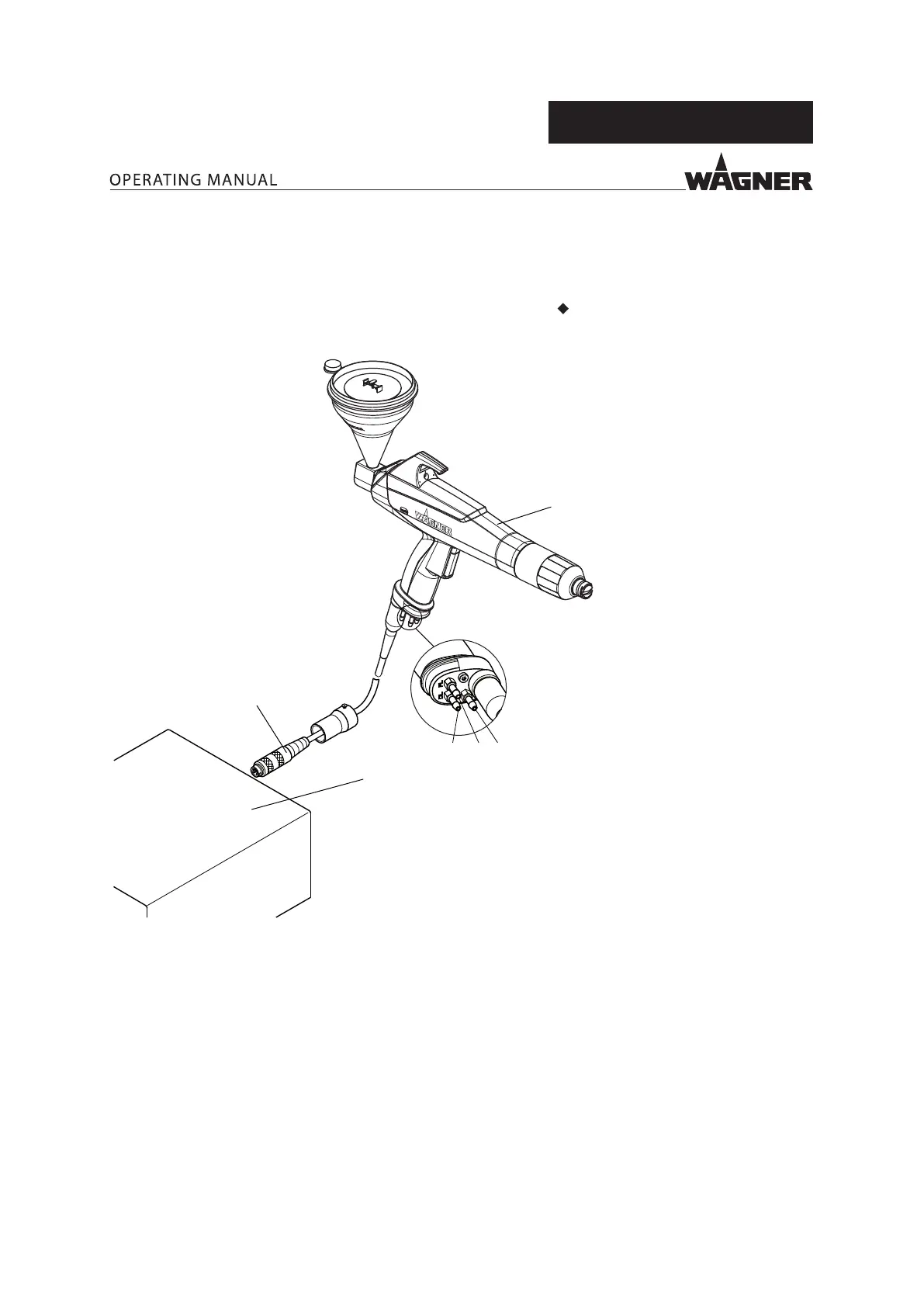

P_01732
3
Procedure:
1. Switch o control unit.
2. Disconnect electrical cable 1 from control unit 2.
3. Disconnect dosing air hose 3, feed air hose 4 and atomizing air hose 5 from spray gun 6.
4. Connect dosing air hose 3, feed air hose 4 and atomizing air hose 5 to new spray gun 6.
5. Connect electrical cable 1 to control unit 2.
6. Switch on the control unit.
7. The spray gun is ready for use again.
