WAGNER PEM-X1 CG User Manual

22
VERSION 05/2019
ORDER NUMBER DOC2326960
PEM-X1 CG
6 ASSEMBLY AND COMMISSIONING
6.1 TRAINING OF ASSEMBLY/COMMISSIONING PERSONNEL
The assembly and commissioning personnel must have the technical skills to safely
commission the device.
When assembling, commissioning and carrying out all work, read and follow the operating
manuals and safety regulations for the additionally required system components.
A skilled person must check to ensure that the device is in a reliable state after it is assembled
and commissioned.
6.2 STORAGE CONDITIONS
Until the point of assembly, the device must be stored in a dry location, free from vibrations
and with a minimum of dust. The device must be stored in closed rooms.
The air temperature at the storage location must be between -20 °C and +60 °C
(-4 °F and +140 °F).
The relative air humidity at the storage location must be between 10 and 95%
(without condensation).
6.3 INSTALLATION CONDITIONS
The air temperature at the installation site must be in a range between 0 °C and 40 °C; 32 °F
and 104 °F.
The relative air humidity at the installation site must be between 10 and 95%
(without condensation).

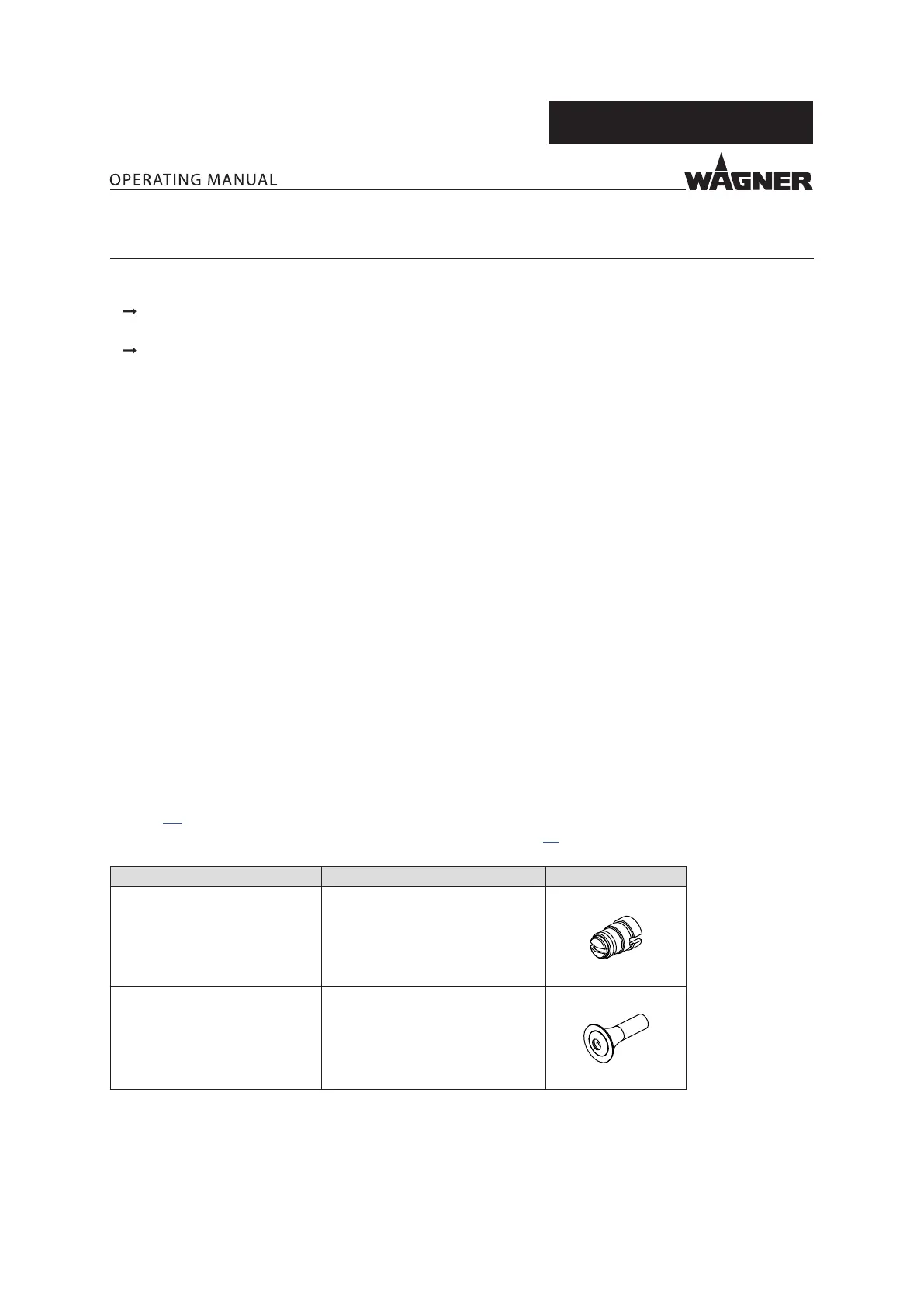

6.4 PREPARING THE CUP GUN
6.4.1 SELECTION OF A SUITABLE NOZZLE SYSTEM
The process of changing from the at jet nozzle to the deector cone is described in
chapter 8.7.
You will nd the article numbers of the dierent nozzles in Chapter 12.
Application overview Powder cloud Nozzle
Complex part geometries Widely spread at powder cloud Flat jet nozzle
– Flat work pieces
(reduced picture frame)
P_01664
– Prole
– Undercuts
Round powder cloud Deector cone
– Wire goods Size of the powder cloud is
dependent on the deector plate
diameter
P_01665
– Grid designs
– Small components
