OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC 2326020

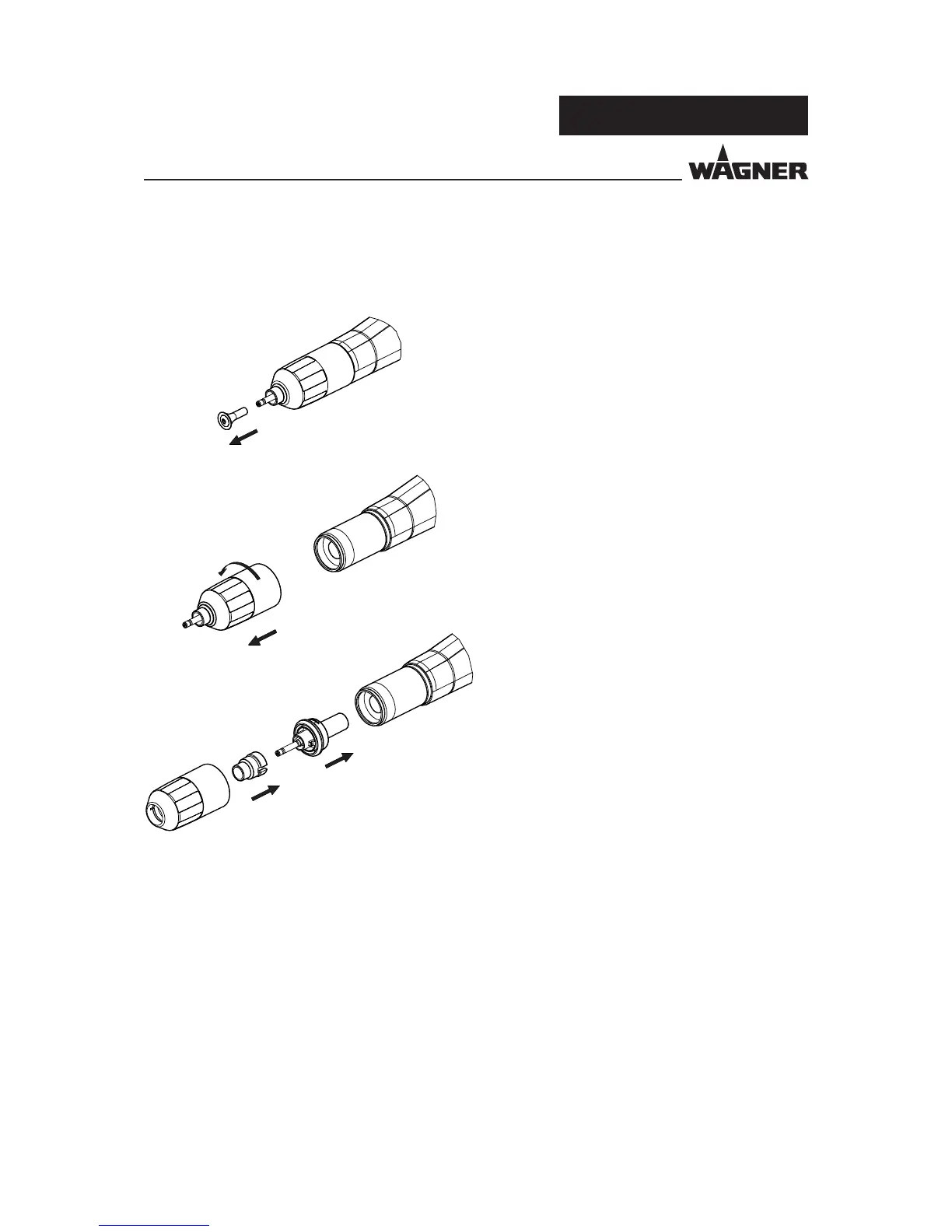

8.5 REMOVING THE ROUND SPRAY NOZZLE
Procedure:
1. Pull o de ector cone.
2. Unscrew union nut from gun housing.
3. Take union nut with nozzle system o gun
body. The nozzle system remains inserted in
the union nut.
Note:
If the nozzle system doesn't remain inserted in the
union nut, the nozzle system and union nut must
be replaced.
4. Press nozzle system out of union nut by gently
pressing on de ector cone sleeve.
5. Remove powder residues from the parts
removed and from the spray gun.
Note:
Never place the spray gun or parts of the spray gun
in cleaning agent.
As a rule the protective wedge needs to be checked
for wear and replaced if necessary.
