22
PEM-X1
P_01664
P_01664
P_01665
P_02209
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC 2326020

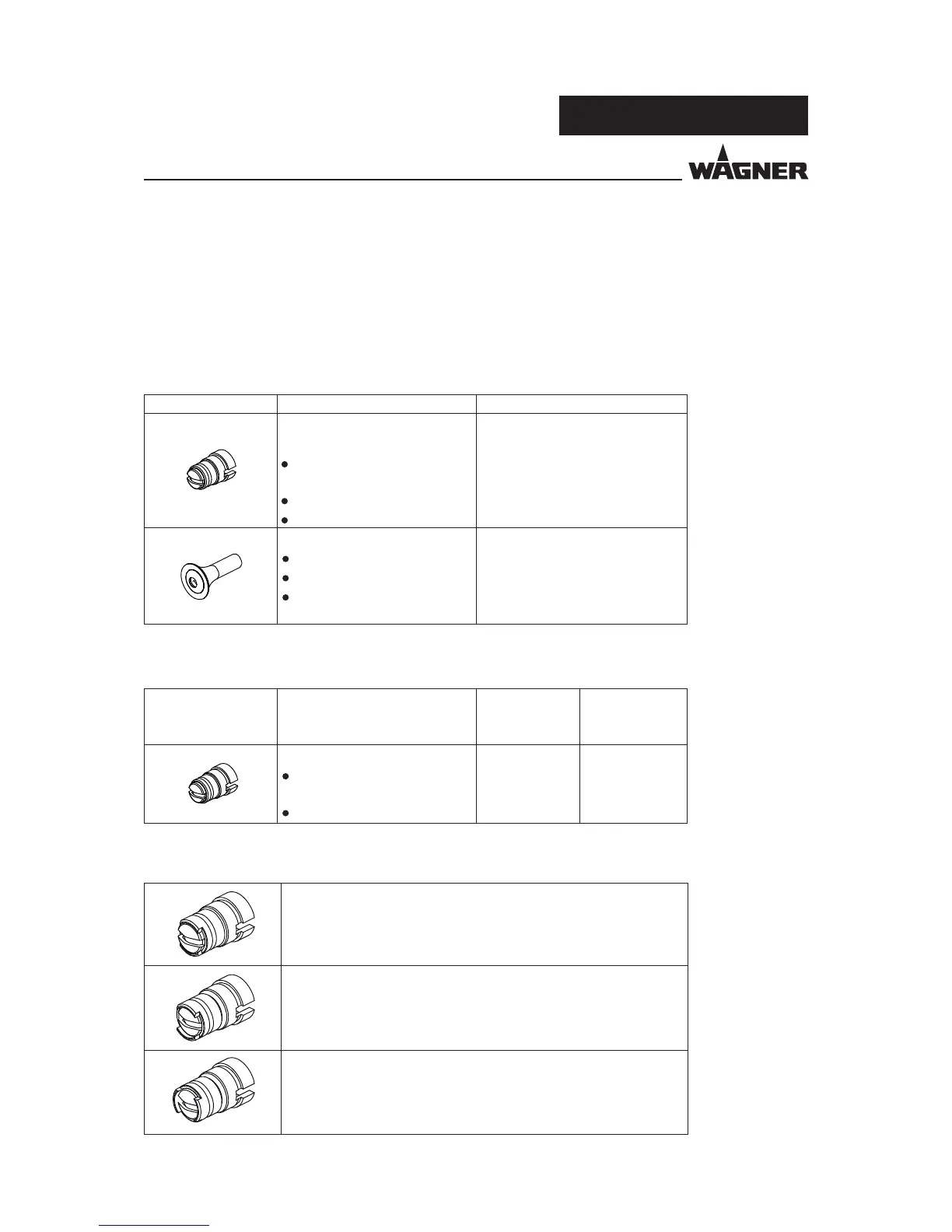

6.4 PREPARING THE SPRAY GUN
6.4.1 SELECTION OF THE SUITABLE NOZZLE SYSTEM
Nozzle Application Distance to
work piece
Powder output
(mm) (g/min)
Universal
120 ... 300 50 ... 300
Deep and complex part
geometries
Extensive work pieces
The spray width can be adjusted by the sliding ring.
Rear sliding ring
Wide cloud
Cloud opening angle approx. 80°
Front sliding ring, front
Narrow cloud
Cloud opening angle approx. 60°
Front sliding ring, front, turned by 90°
Extra narrow cloud
Cloud opening angle approx. 40°
Nozzle Application overview Powder cloud
Fan spray nozzle Complex part geometries Widely spread at powder cloud
Flat work pieces
(reduced picture frame)
Pro les
Undercuts
De ector cone Round powder cloud:
Wire goods Size of the powder cloud is
dependent on the de ector plate
diameter
Grid designs
Small components
The process of changing from the fan spray nozzle to the de ector cone is described in
Chapter 8.8 "Changing from Fan spray nozzle to Round spray nozzle".
You will nd the article numbers of the di erent nozzles in Chapter 12 "Accessories".
