17
PEM-X1
A
B
C
K
I
F
P_01663
E
D
G
F
L
H
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC 2326020
5 DESCRIPTION

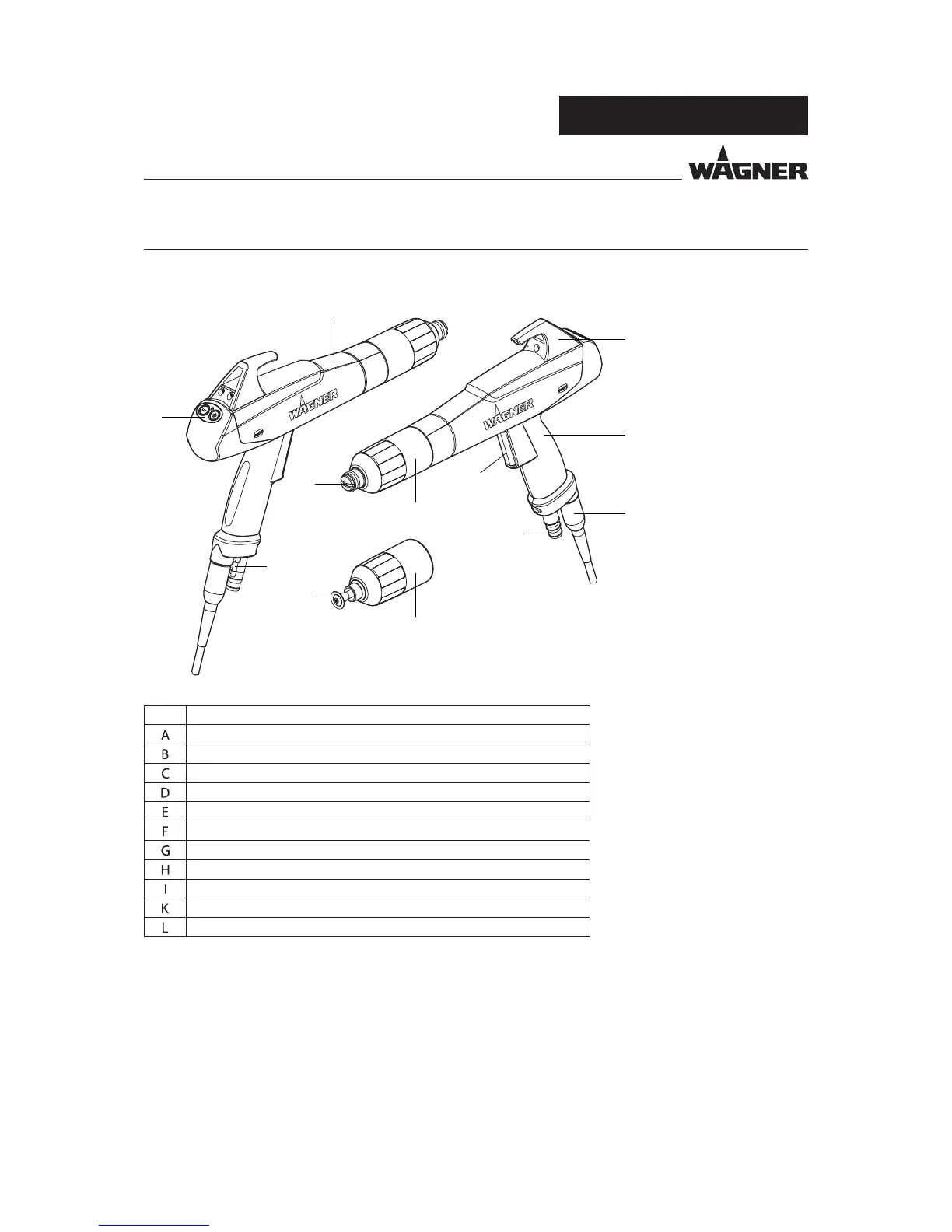

5.1 SPRAY GUN DESIGN
Designation
Suspension hook
Handle
Electrical connection cable
Powder hose connection
Trigger lever
Union nut
Round spray nozzle
Atomizing air connection
Fan spray nozzle
Buttons to adjust the powder quantity
Spray gun body
5.2 FUNCTIONING OF THE SPRAY GUN
High-voltage is activated in the manual gun when the trigger is actuated!
The powder supply and air supply to the gun are activated at the same time.
The control unit must be switched o in order to lock the spray gun.
To prevent electrostatic ashover, the union nut for securing the nozzles is designed with
a labyrinth.
