45
PEM-X1
1.
4.
2.
3.
P_01679
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC 2326020
The standard Corona spray gun is delivered with a fan spray nozzle. The nozzle can be
changed easily, as described below.
The X1 R electrode holder is necessary to perform the change.

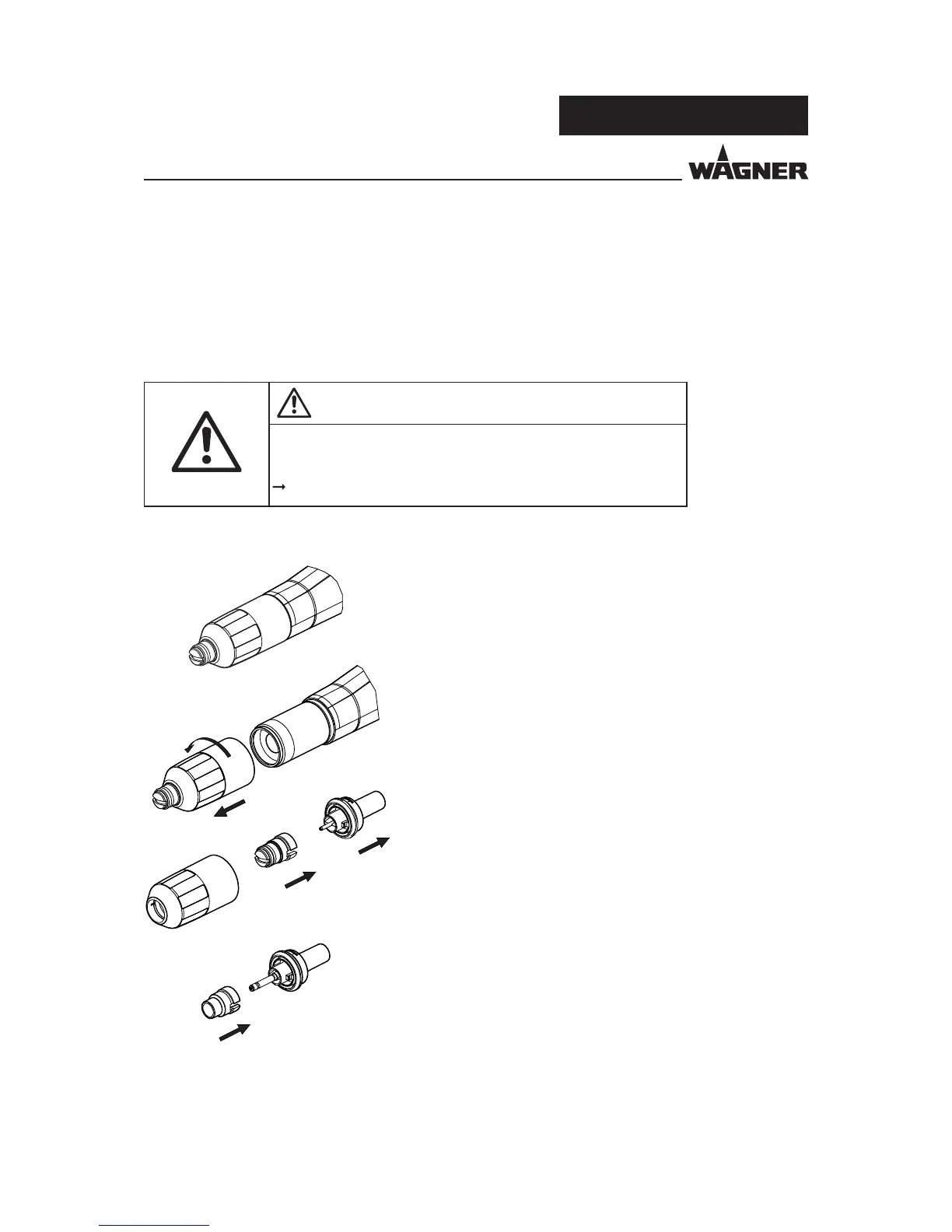

8.8 CHANGING FROM FAN SPRAY NOZZLE TO ROUND SPRAY NOZZLE
Procedure:
1. Unscrew union nut from gun housing.
2. Take union nut with nozzle system o gun body. The nozzle
system remains inserted in the union nut.
Note:
If the nozzle system doesn't remain inserted in the union nut, the
nozzle system and union nut must be replaced.
3. The parts can be separated by gently pressing the sliding
ring on the fan spray nozzle.
4. Attach de ector cone sleeve onto X1 R electrode holder.
Electrode tip!
Risk of injury.
Take care when tting the X1 R electrode holder.
CAUTION
