44
PEM-X1
Y
X
P_01676
3.
1.
2.
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC 2326020

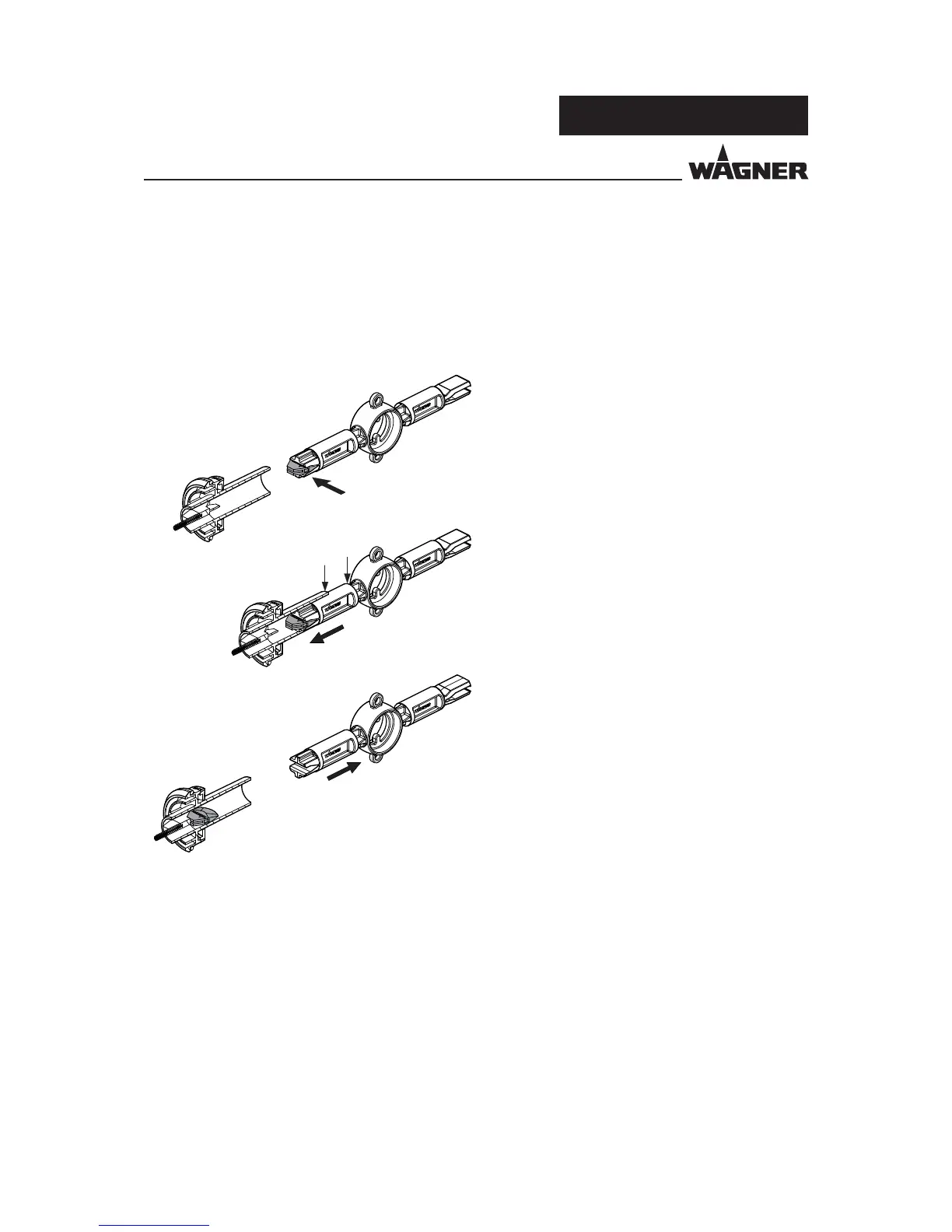

Procedure:
1. Guide protective wedge 2 into wedge tool 1.
2. Insert both parts into opening on electrode
holder up to stop.
If it is not possible to push the wedge tool in
as far as the X mark, rotate the wedge tool a
little until it can be pushed up to the mark.
The mark X must be ush with the Y end of the
electrode holder.
3. The protective wedge is now correctly
assembled and the wedge tool can be pulled
out of the electrode holder.
4. The protective wedge remains inserted in the
electrode holder.
Prior to re- tting, check whether the contact
points on electrode holder 3 and in gun
housing 5 have been thoroughly cleaned so
that the electrode tip is electrically connected
to the high-voltage generator.
5. Mount fan or round spray nozzle with the
corresponding electrode holder.
Note:
The same wedge tool is used to insert the protective wedge.
